- 2-in / 2-out USB 2.0 audio interface, up to 24-bit / 96 kHz resolution
- Mic preamp with +48 V phantom power support
- Hi-Z instrument input via ¼″ jack
- Line inputs on RCA connectors
- Balanced line outputs via ¼″ TRS jacks

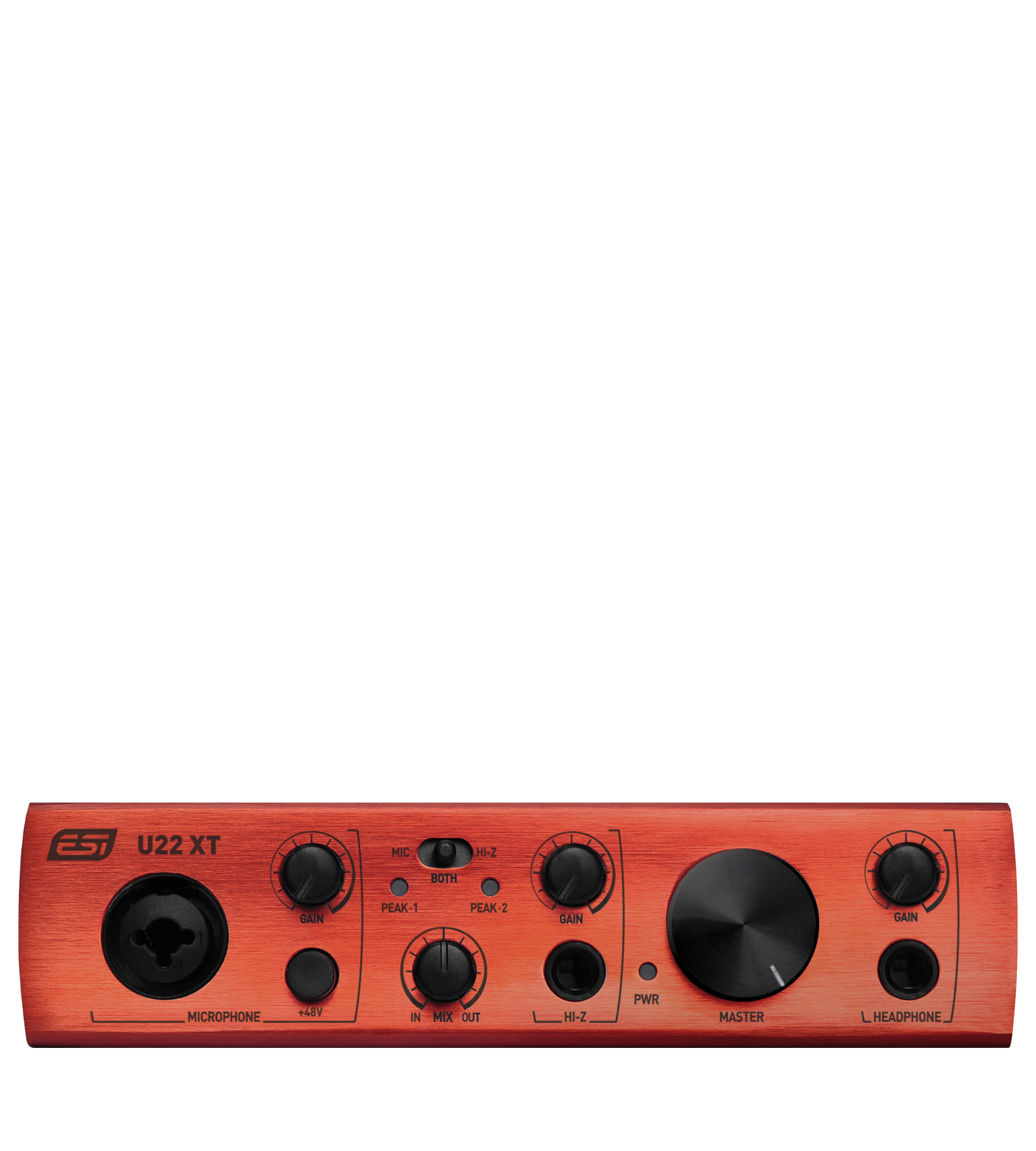

- Headphone output with front-panel level control
- Front-panel master volume and I/O monitoring controls
- ADC dynamic range: 102 dB(A); DAC dynamic range: 108 dB(A) :contentReference[oaicite:0]{index=0}
- Low-latency drivers—ASIO 2.0, WDM, MME, DirectWIRE for Windows; CoreAudio class-compliant for macOS :contentReference[oaicite:1]{index=1}
- Includes software licenses: Bitwig Studio 8-Track, inTone 2 ESI Edition, and Deckadance LE :contentReference[oaicite:2]{index=2}
- Resolution: 24-bit; Sampling rate: up to 96 kHz

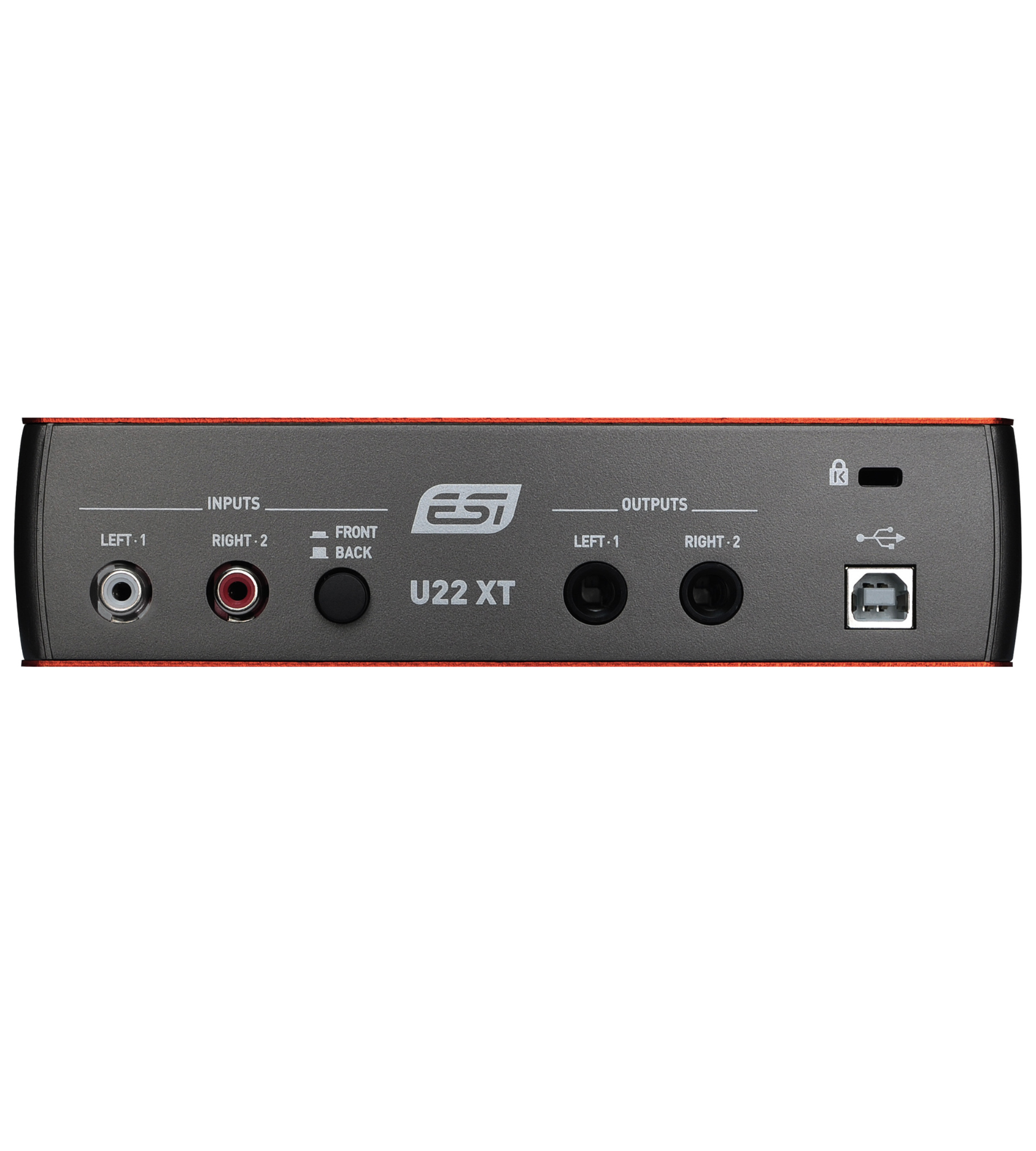

- Analog Inputs: 1 × XLR/TRS combo mic/line, 1 × Hi-Z guitar ¼″ jack, 2 × RCA line inputs
- Analog Outputs: 2 × balanced ¼″ TRS line outputs; 1 × ¼″ headphone out
- Digital Conversion: ADC 102 dB(A); DAC 108 dB(A)
- Controls: Front-panel master volume, headphone level, and I/O monitoring toggle
- Power: USB bus-powered (no external adapter required)
- Compatibility: Windows (ASIO 2.0, WDM, MME, DirectWIRE), macOS via CoreAudio, Linux via class-compliant USB audio :contentReference[oaicite:4]{index=4}
Approx. 17.5 cm × 12.0 cm × 4.5 cm (W × D × H) :contentReference[oaicite:3]{index=3}
- ESI U22 XT audio interface
- USB cable (USB-B to USB-A)
- Licenses for Bitwig Studio 8-Track, inTone 2 ESI Edition, Deckadance LE
- User manual
