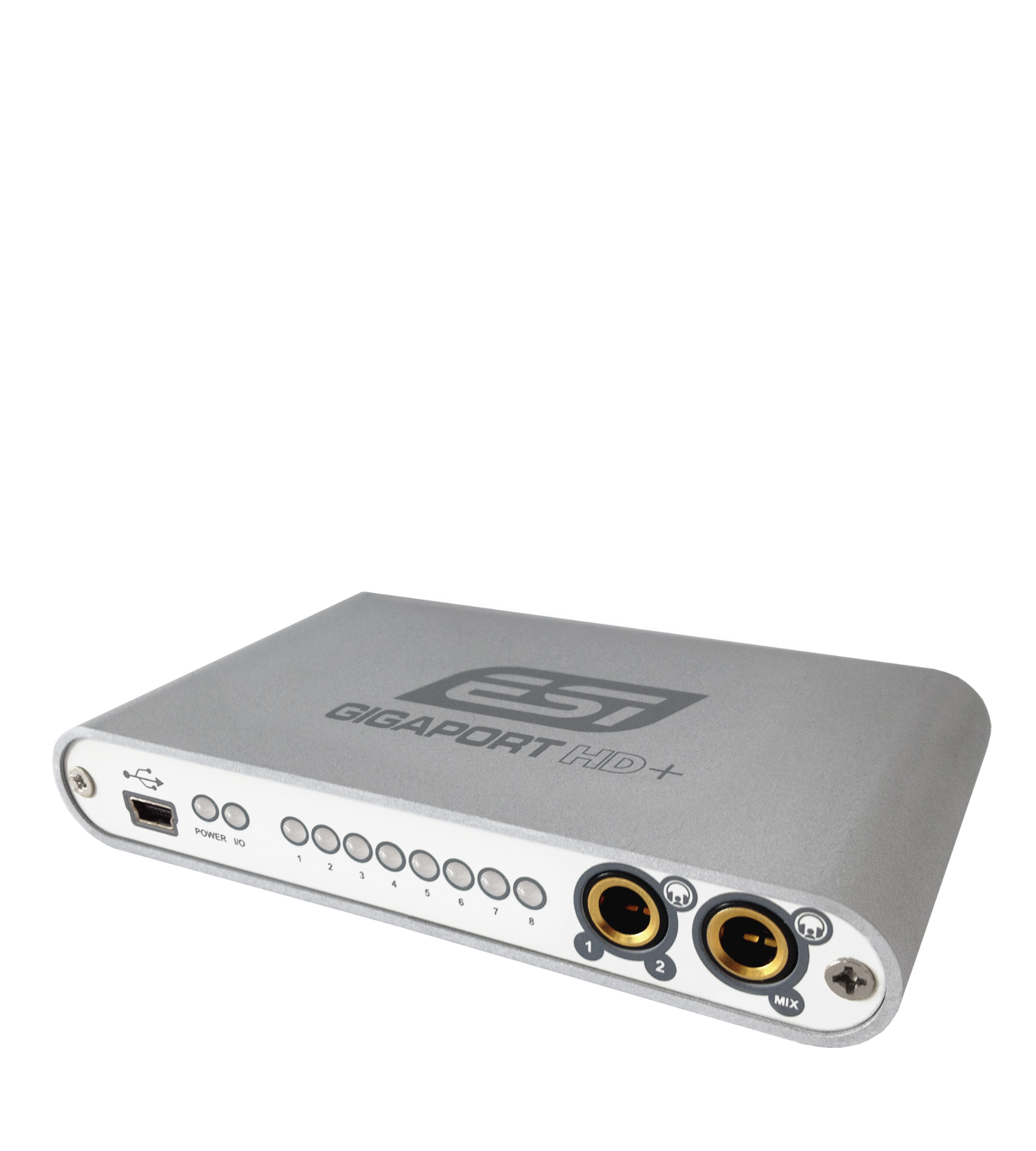

ESI GIGAPORT HD+ Audio Interface

ESI GIGAPORT HD+ Audio Interface

₱11,500.00 PHP
₱11,500.00 PHP
Sale Sold out

GIGAPORT HD+ is not like any other USB audio interface ... it's simply the multichannel playback solution with the best price value ratio on the market due to its unique set of features providing 8 independent outputs (and full 7.1 surround sound support), 2 independent stereo headphone outputs and excellent audio quality supporting up to 24-bit and 96 kHz.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

  • 24-bit / 96 kHz D/A conversion with excellent audio quality

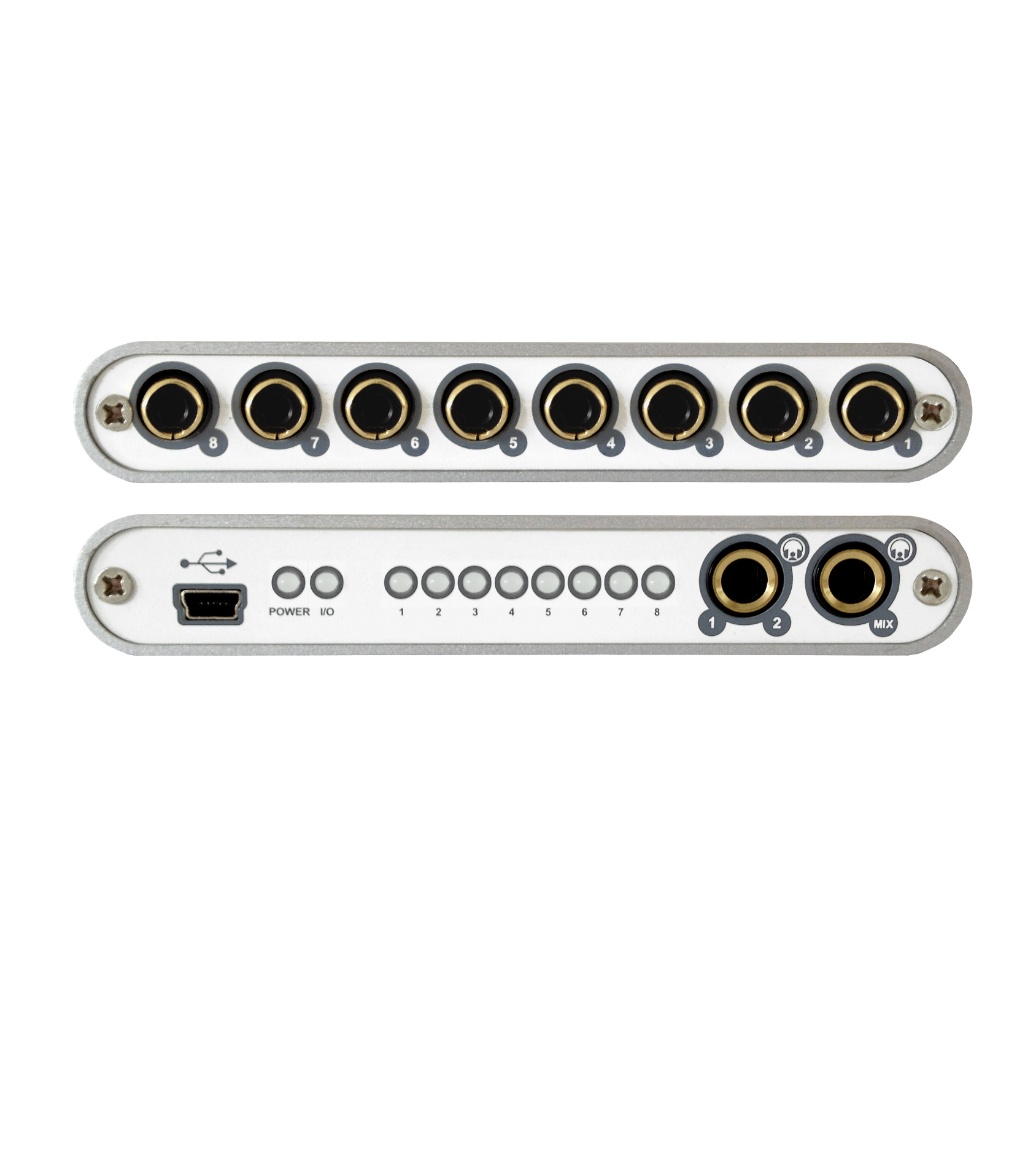

  • 8 independent RCA line outputs—perfect for multi-channel playback or DJ workflows
  • Two independent stereo headphone outputs:
    • Output 1: mixed signal of all channels
    • Output 2: dedicated output for channels 1/2 (ideal for cueing)
  • USB 2.0 (Class-Compliant on macOS; EWDM drivers with ASIO 2.0, WDM, MME on Windows) :contentReference[oaicite:0]{index=0}
  • Multiple playback modes:
    • 8-channel at 16-bit / 44.1 kHz or 48 kHz
    • 6-channel at 24-bit / 44.1 kHz or 48 kHz
    • Stereo (2-channel) at 24-bit / 96 kHz
  • Bundled Deckadance LE software license for DJ performance setups :contentReference[oaicite:1]{index=1}
  • Compact, durable aluminum build (approx. 12 cm × 7 cm × 2 cm) :contentReference[oaicite:2]{index=2}

  • Analog Outputs: 8 RCA line-level outputs (-10 dBV), unbalanced; Output impedance: ~100 Ω
  • Headphone Outputs:
    • Max: ~60 mW output power
    • SNR: ~110 dB; THD+N: -70 dB (0.03%)
  • D/A Converter Performance:
    • Dynamic Range: ~112 dB A-weighted
    • THD+N: ~-94 dB
    • Frequency Response: 20 Hz–22 kHz (@ 48 kHz sampling rate)
  • USB Interface: USB 1.1/2.0 (bus-powered, max 250 mA) :contentReference[oaicite:5]{index=5}
  • OS Compatibility:
    • Windows: ASIO 2.0, GSIF, WDM, MME, DirectSound (via EWDM driver)
    • macOS: CoreAudio class-compliant (driver-free) :contentReference[oaicite:6]{index=6}

Approx. 12 cm × 7 cm × 2 cm (W × D × H)

  • ESI GIGAPORT HD+ audio interface
  • USB cable (Mini-USB to USB-A)
  • Deckadance LE license
  • User manual and warranty info
