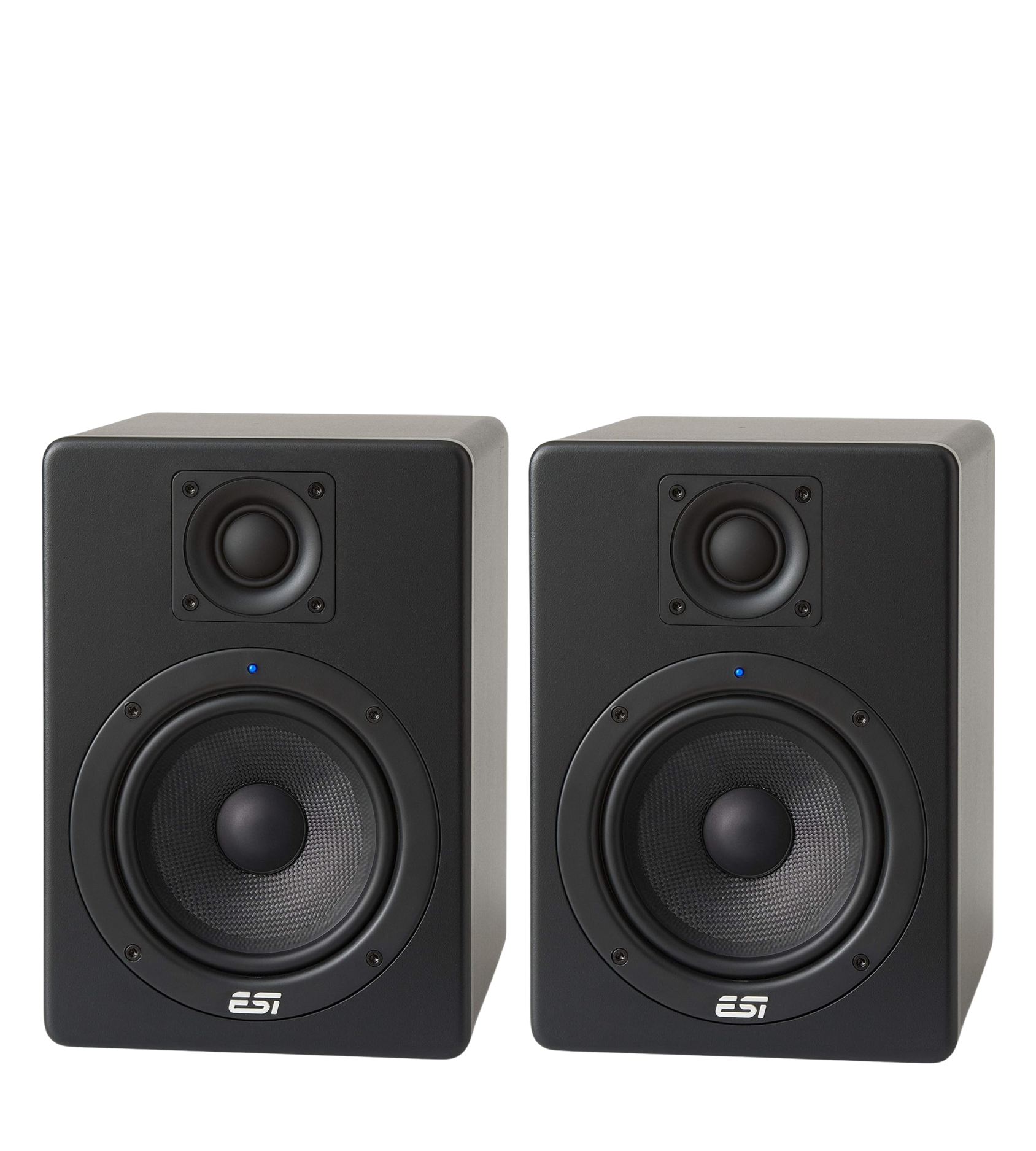

- 2-way powered desktop studio monitor with active design
- 5″ Kevlar curved-cone woofer (magnetically shielded) for tight, accurate lows
- 1″ silk dome tweeter for smooth and extended high frequencies
- Total output: 60 W (30 W HF + 30 W LF), 85 W maximum AC power consumption
- Flat frequency response: 50 Hz–20 kHz; SPL: 88 dB ±3 dB
- Crossover at 2.5 kHz, professionally engineered by ESI's German team
- Combo XLR / ¼″ TRS input allowing balanced or unbalanced connection
- Balanced input impedance: 23.3 kΩ; unbalanced: 13.3 kΩ
- Universal voltage (100–240 V) with selectable 115 V/230 V mode and LED power indicator
- Magnetically shielded for safe near-screen placement
- Standby mode supported on select regions for power saving
- Drivers: 5″ Kevlar woofer, 1″ silk dome tweeter
- Power Output: LF 30 W + HF 30 W = 60 W total
- Frequency Response: 50 Hz – 20 kHz
- SPL: 88 dB ±3 dB
- Crossover Frequency: 2.5 kHz
- Input Sensitivity: 75 mV @ 1 W; 415 mV @ 30 W
- Input Connectors: Combo XLR / TRS (balanced/unbalanced)
- Input Impedance: Balanced 23.3 kΩ; Unbalanced 13.3 kΩ
- AC Power: 100–240 V, 50/60 Hz (115/230 V selector), LEDs for power/standby
- Designed and tuned in Germany by ESI’s audio engineers
- Shielded enclosure for desktop use near video displays
176 × 250 × 200 mm (W × H × D)
- ESI aktiv 05 powered studio monitor (single)
- IEC power cord
- Warranty and user manual
