EV

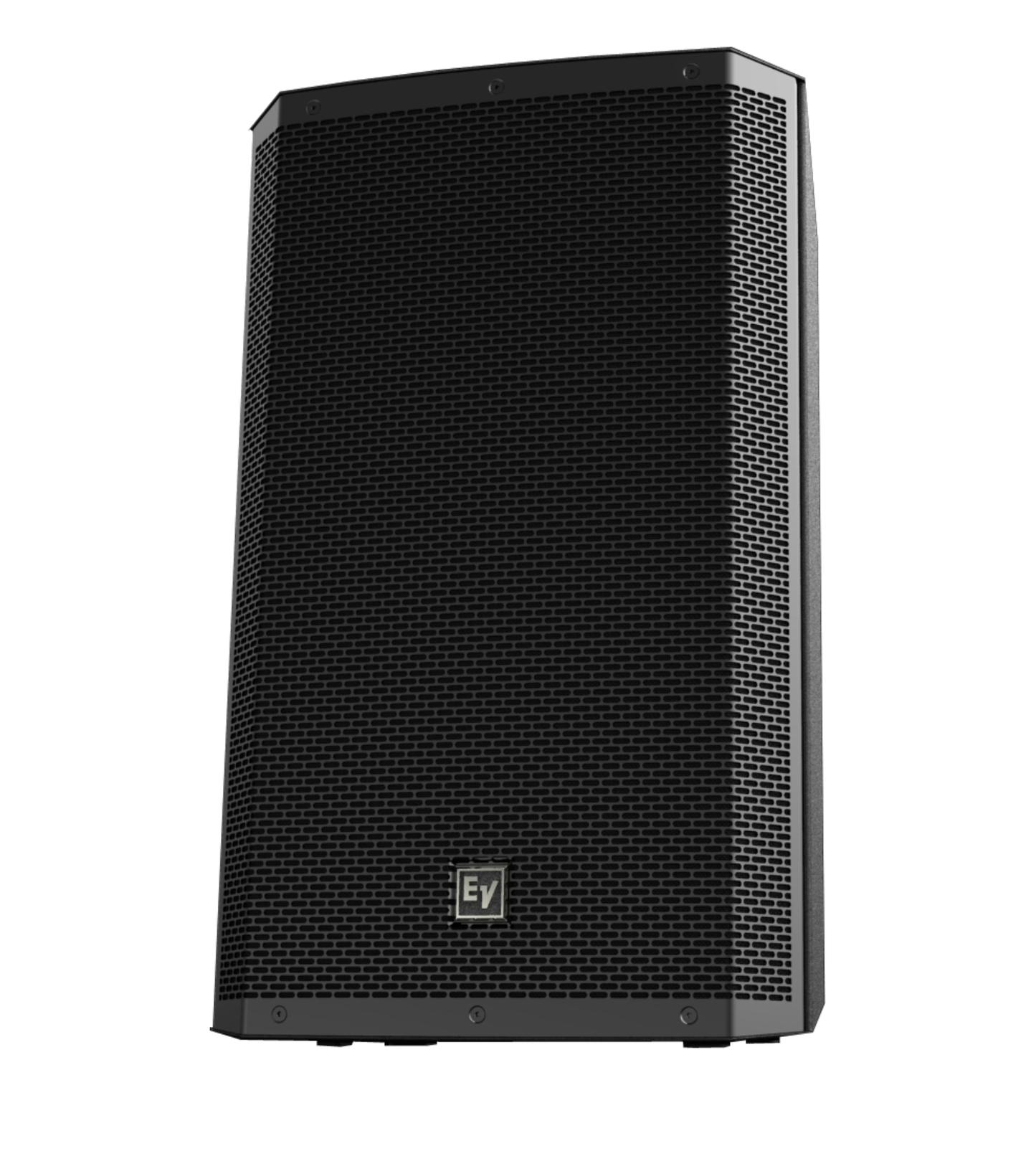

Electro Voice ZLX-15 15" passive loudspeaker

Electro Voice ZLX-15 15" passive loudspeaker

₱34,000.00 PHP
₱34,000.00 PHP
Sale Sold out

The Electro-Voice ZLX-15 is a high-performance 15-inch passive loudspeaker engineered for bands, mobile DJs, and venues that require deep low-end without the weight. Part of EV's best-selling ZLX series, this speaker combines a large 15-inch woofer with EV's signature engineering to deliver full-range sound, high intelligibility, and outstanding SPL from a remarkably lightweight composite enclosure.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

  • 15″ EVS‑15L woofer for extended low-frequency response
  • 1.5″ titanium compression driver for clear high frequencies
  • Polypropylene cabinet with integrated handle for portability
  • Dual NL4 connectors for reliable wiring
  • Constant directivity horn: 90° × 60° dispersion
  • Designed to be used with or without a subwoofer — recommended high-pass at 40 Hz

SpecificationDetail
Frequency Response (‑3 dB)56 Hz – 18 kHz
Frequency Range (‑10 dB)44 Hz – 20 kHz
Axial Sensitivity (1 W / 1 m)96 dB
Maximum SPL126 dB
Power Handling (Continuous / Peak)250 W / 1,000 W
LF TransducerEVS‑15L, 380 mm (15 in) woofer
HF TransducerDH‑1K (1.5″ titanium)
Crossover Frequency1.7 kHz
Nominal Impedance8 Ω
Minimum Impedance7 Ω
Coverage (H × V)90° × 60°
Recommended High‑Pass Filter40 Hz
Connector TypeDual NL4
Enclosure MaterialPolypropylene
Grille Material18‑gauge steel, powder-coated
Dimensions (H × W × D)685 × 423 × 383 mm
Weight (Net)16.6 kg (36.5 lb)
Shipping Weight22.0 kg

Approximately 68.5 × 42.3 × 38.3 cm

  • ZLX‑15 passive loudspeaker unit
  • User manual / quick-start guide
