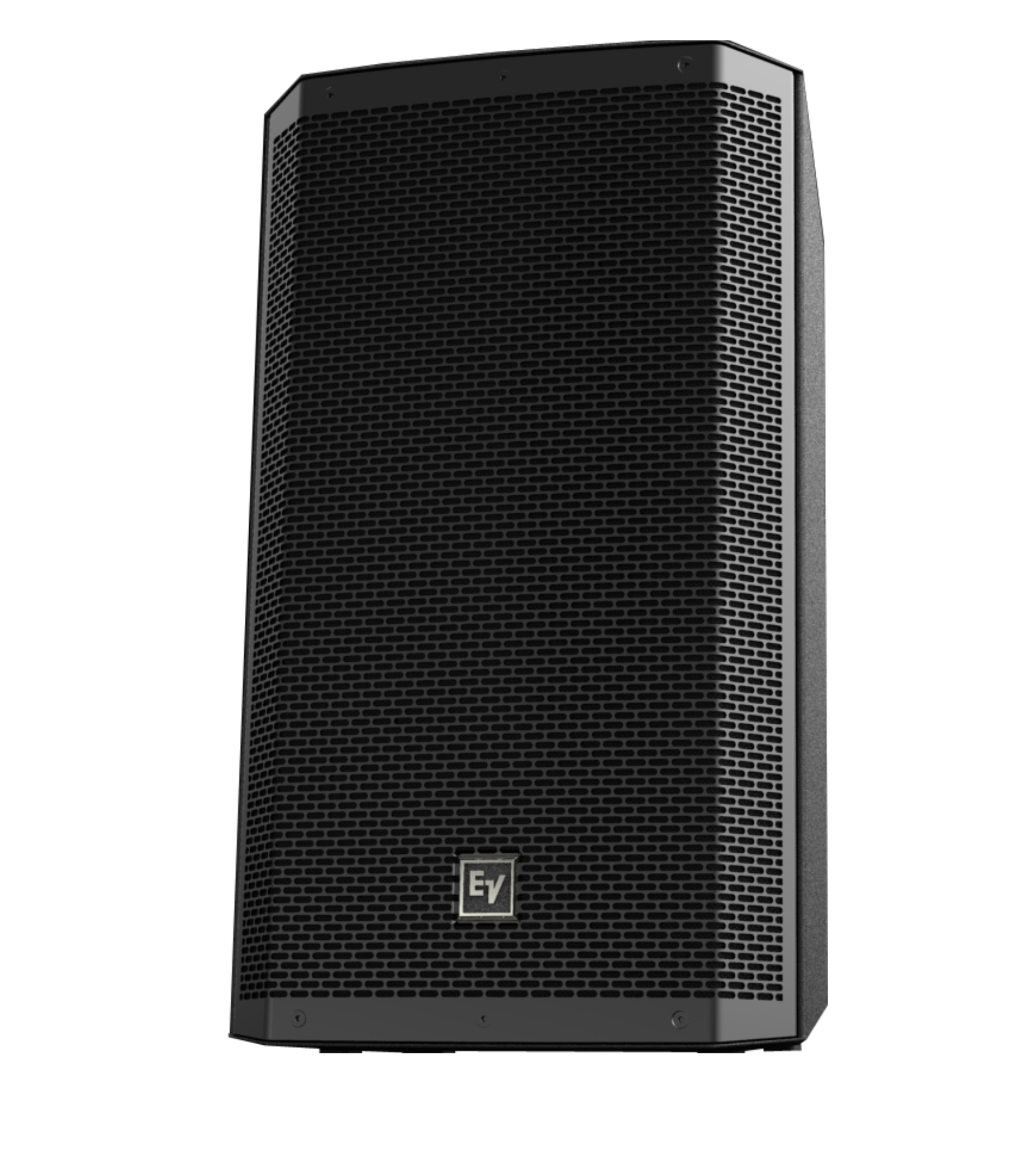

Electro Voice ZLX 12 12" Passive Speaker

Electro Voice ZLX 12 12" Passive Speaker

₱30,000.00 PHP
₱30,000.00 PHP
Sale Sold out

The Electro-Voice ZLX-12 is a compact, high-output passive loudspeaker engineered for a wide range of portable sound and installed applications. Designed to deliver clean, intelligible audio and impressive SPL from a remarkably lightweight composite enclosure, the ZLX-12 is perfect for musicians, mobile DJs, and venues seeking genuine professional quality at an accessible price point.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

  • 12″ EVS‑12K woofer for punchy low-end response
  • 1.5″ titanium compression driver for clear highs
  • Compact polypropylene cabinet with integrated handle

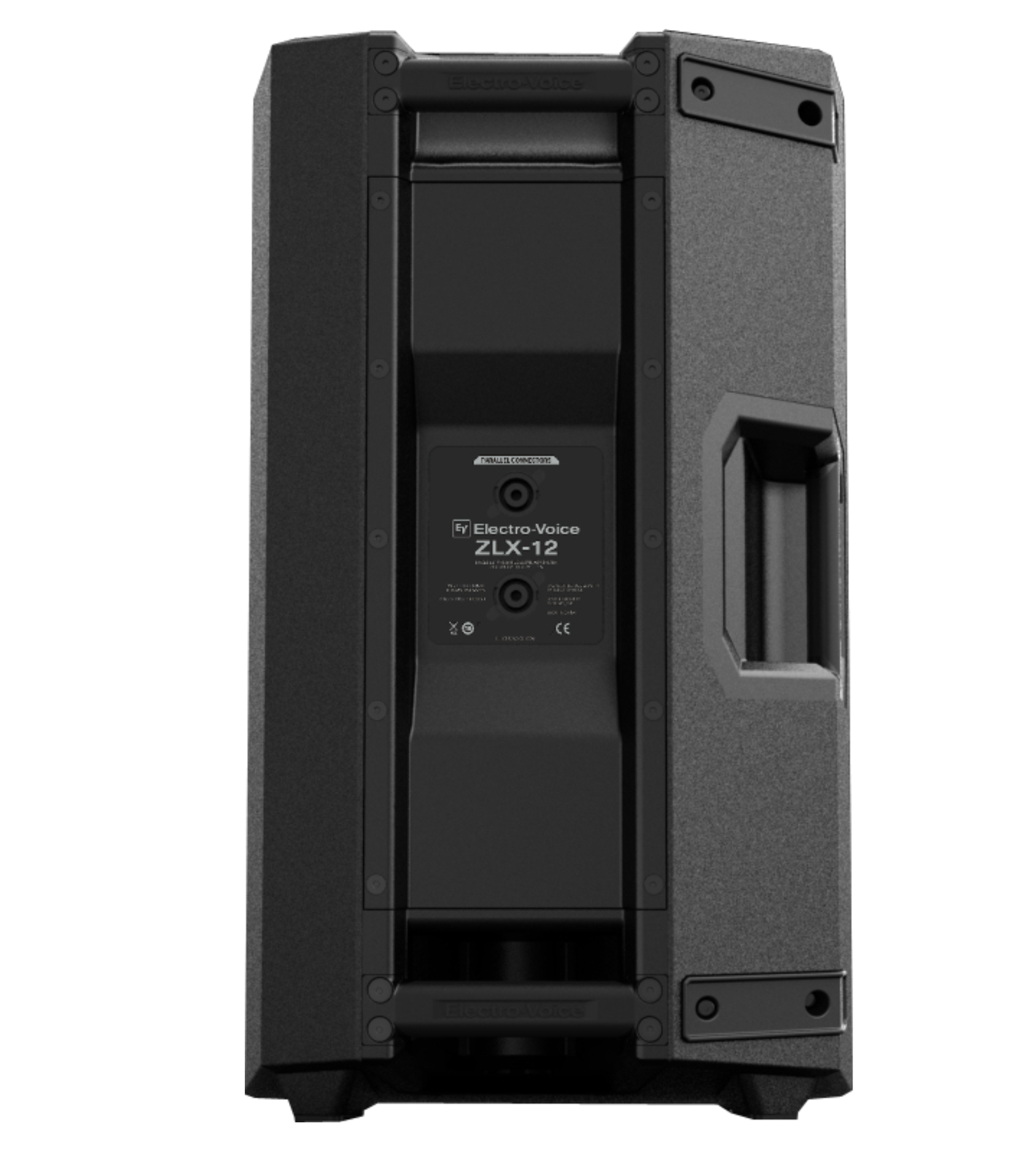

  • Dual NL4 connectors for reliable wiring
  • 90° × 60° constant directivity coverage for even sound distribution
  • Recommended high-pass filter: 40 Hz (for subwoofer integration)

SpecificationDetail
Frequency Response (‑3 dB)82 Hz – 18 kHz
Frequency Range (‑10 dB)55 Hz – 20 kHz
Axial Sensitivity95 dB SPL (1 W / 1 m)
Maximum SPL125 dB
Power Handling (Continuous / Peak)250 W / 1,000 W
Nominal Impedance8 Ω
Minimum Impedance7 Ω
Crossover Frequency2.1 kHz
LF TransducerEVS‑12K, 300 mm (12 in)
HF TransducerDH‑1K titanium compression driver
Coverage (H × V)90° × 60°
ConnectorsDual NL4
Enclosure MaterialPolypropylene
Grille18 gauge steel, black powder coat
Dimensions (H × W × D)610 × 356 × 356 mm
Net Weight14.9 kg
Shipping Weight18.0 kg

Approximately 61.0 × 35.6 × 35.6 cm

  • ZLX‑12 passive loudspeaker
  • User manual
