Yamaha

YAMAHA MGP32X 32 CHANNELS ANALOG MIXER

YAMAHA MGP32X 32 CHANNELS ANALOG MIXER

₱110,000.00 PHP
₱110,000.00 PHP
Sale Sold out

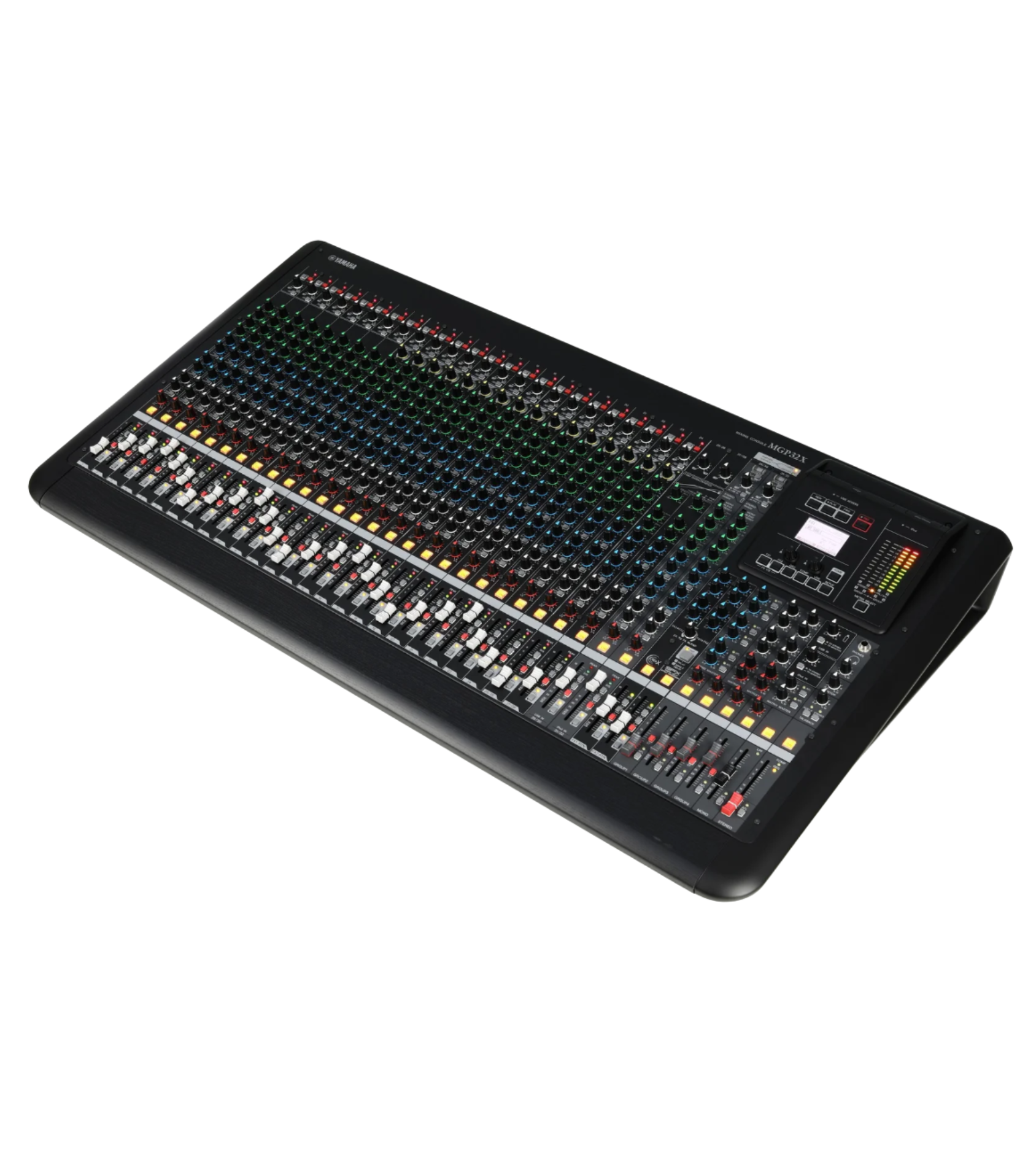

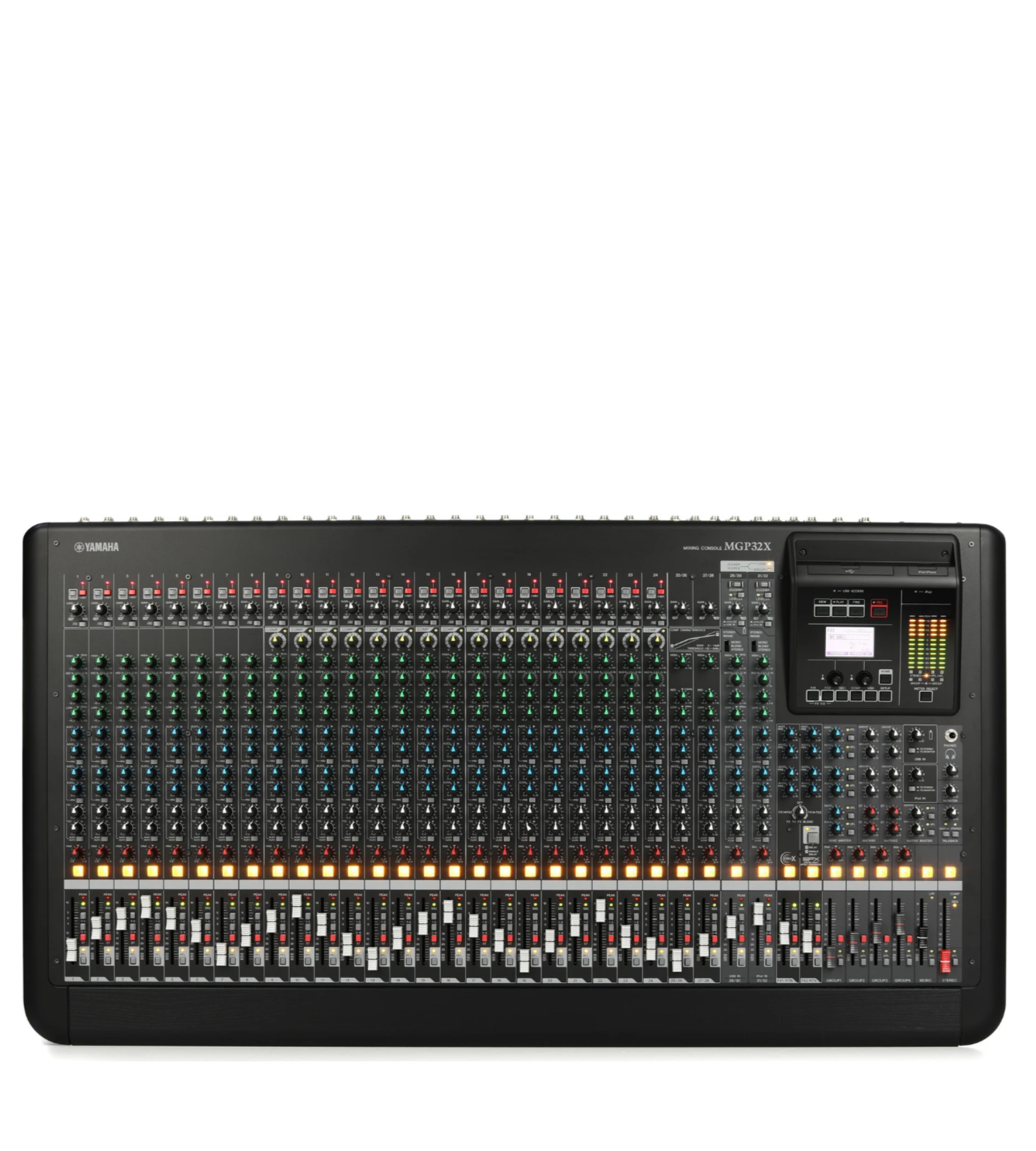

The Yamaha MGP32X delivers professional analog mixing with streamlined control and exceptional audio quality. With 32 channels—including 24 mic preamps equipped with IntelliGAIN and high-pass filters—it blends warm sonic character with precision, plus built-in DSP effects and USB connectivity for flexible, modern workflows.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box
  • Product Manual

  • 32 line inputs (24 mono mic/line channels + 4 stereo line channels)
  • 24 D-PRE Class-A mic preamps with 48 V phantom power and high-pass filter per channel
  • Yamaha’s X-pressive EQ (3-band) and 1-Knob Compressor on each mono channel
  • Stereo Hybrid Channel with DSP-powered Auto Ducker, Leveler, and Stereo Image functions
  • Dual onboard effects processors: FX1 (REV-X reverb, 8 programs, parameter control) and FX2 (SPX multi-effects, 16 programs, parameter control)
  • USB Device for recording/playback; iPod/iPhone direct input for audio and control
  • Routing: 4 Group buses + Stereo bus, 6 AUX sends, 2 FX sends, 1 Matrix output, mono out

  • Total harmonic distortion: 0.02% (20 Hz–20 kHz @ +14 dBu)
  • Frequency response: +0.5 / –1.0 dB across 20 Hz–20 kHz
  • Equivalent input noise: –128 dBu; residual output noise: –92 dBu
  • Crosstalk: –74 dB @ 1 kHz
  • Power: 100–240 V, 50/60 Hz; Max consumption: 86 W

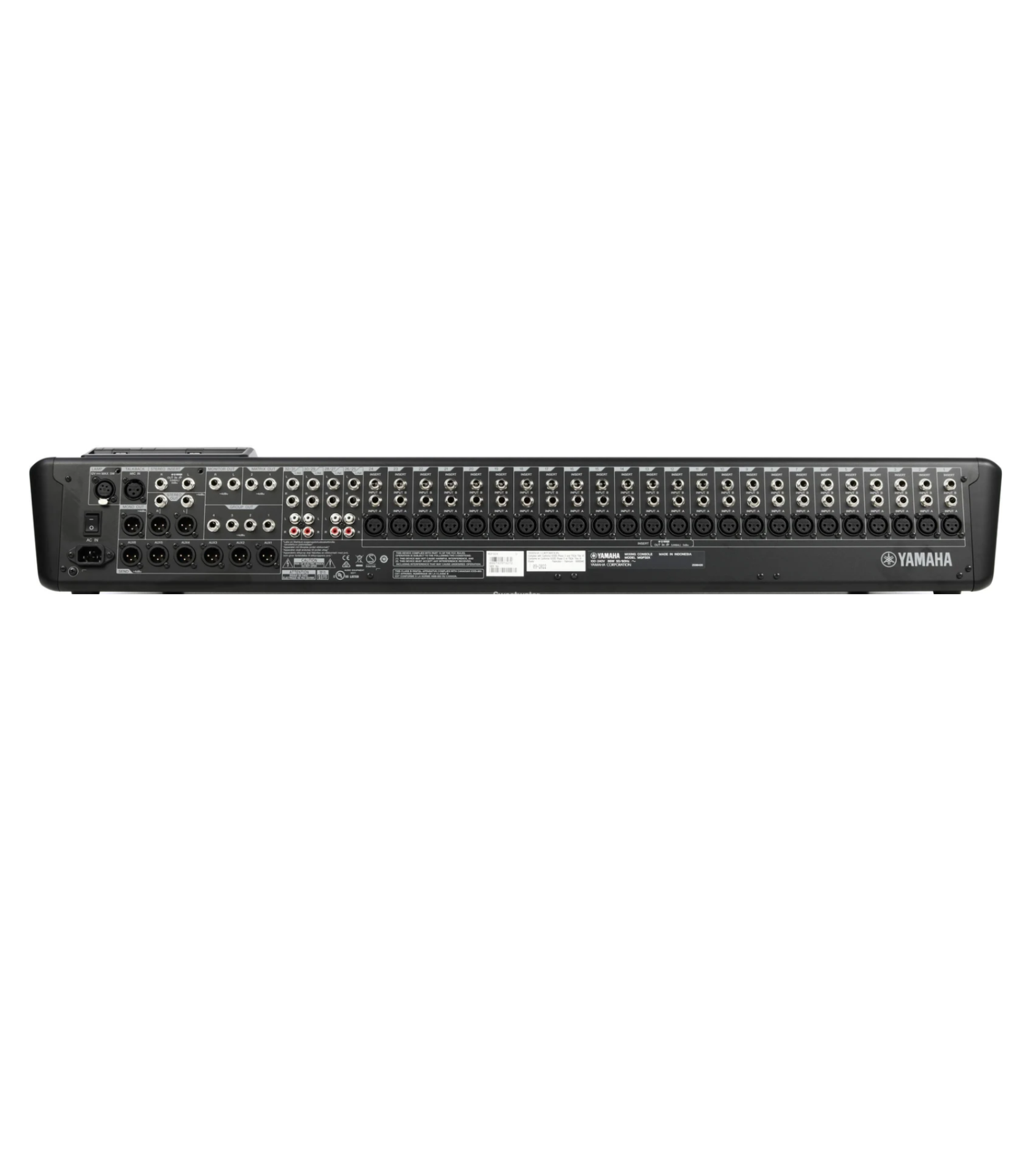

  • I/O Routing includes XLR stereo outputs, XLR aux sends, group outputs, matrix outs, monitor out, mono out, headphone jack, and more

  • Width: 1,027 mm (40.4")
  • Height: 169 mm (6.7")
  • Depth: 565 mm (22.2")

  • Yamaha MGP32X mixing console
  • AC power cord
  • Owner’s manual
