Yamaha

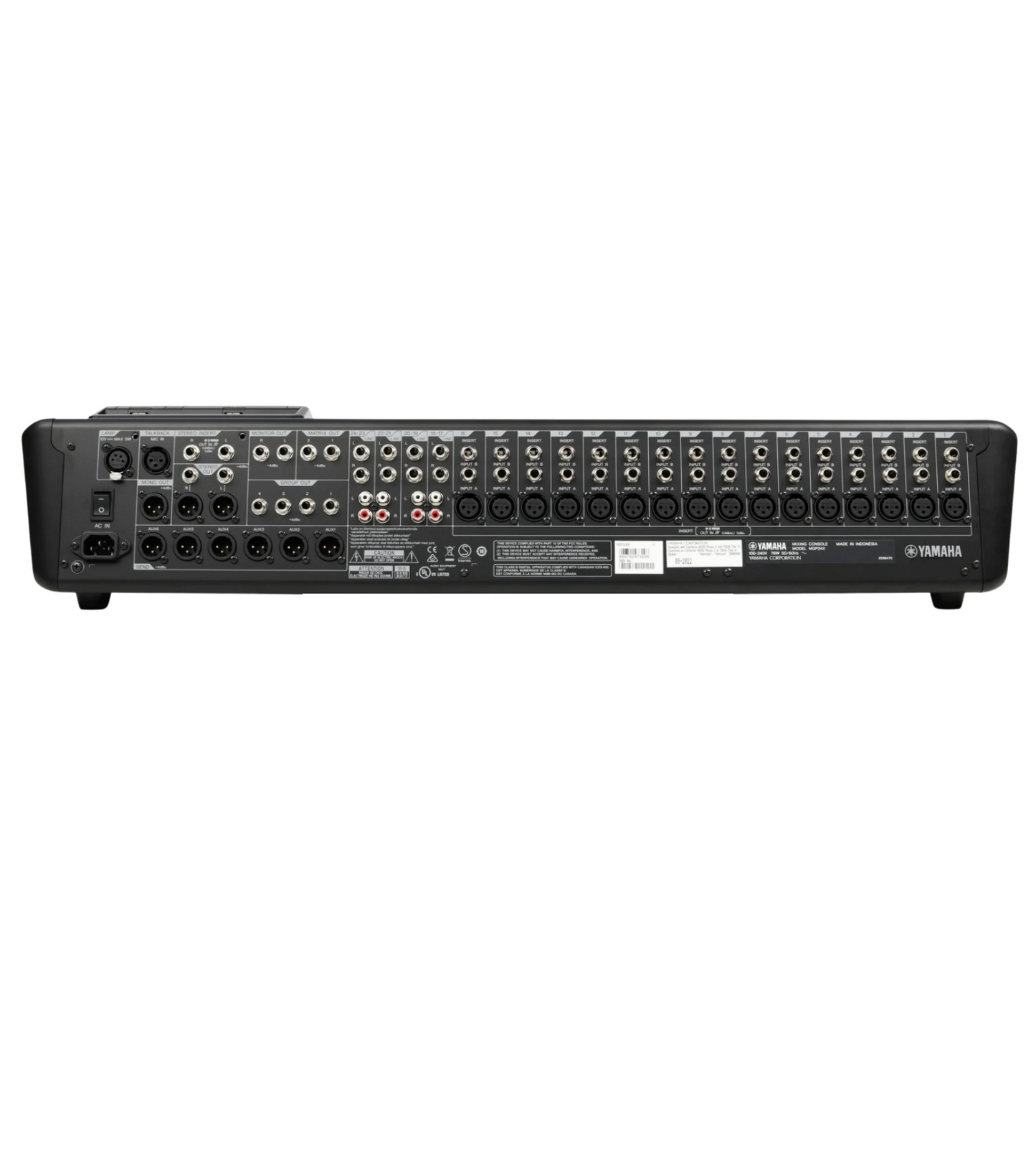

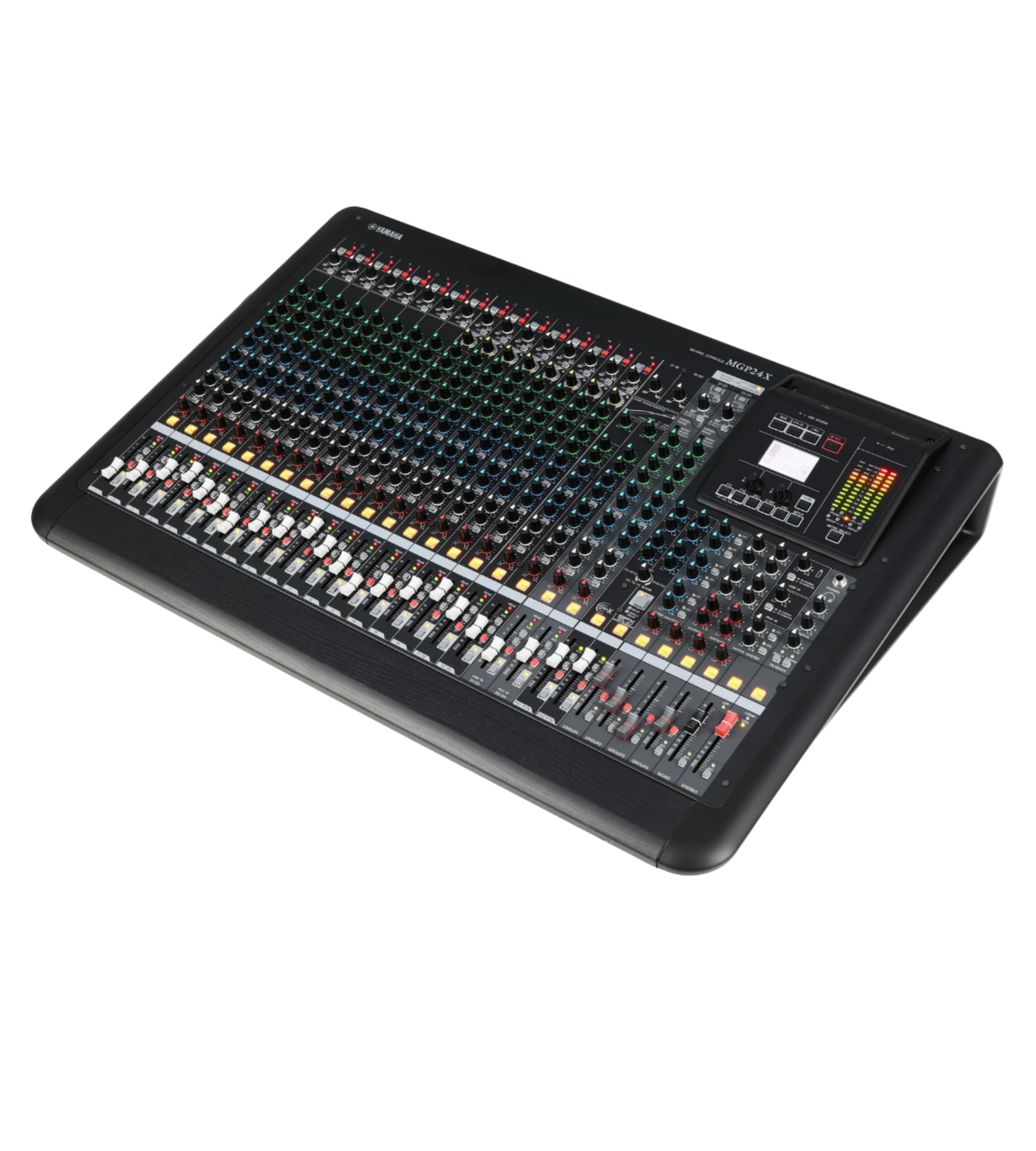

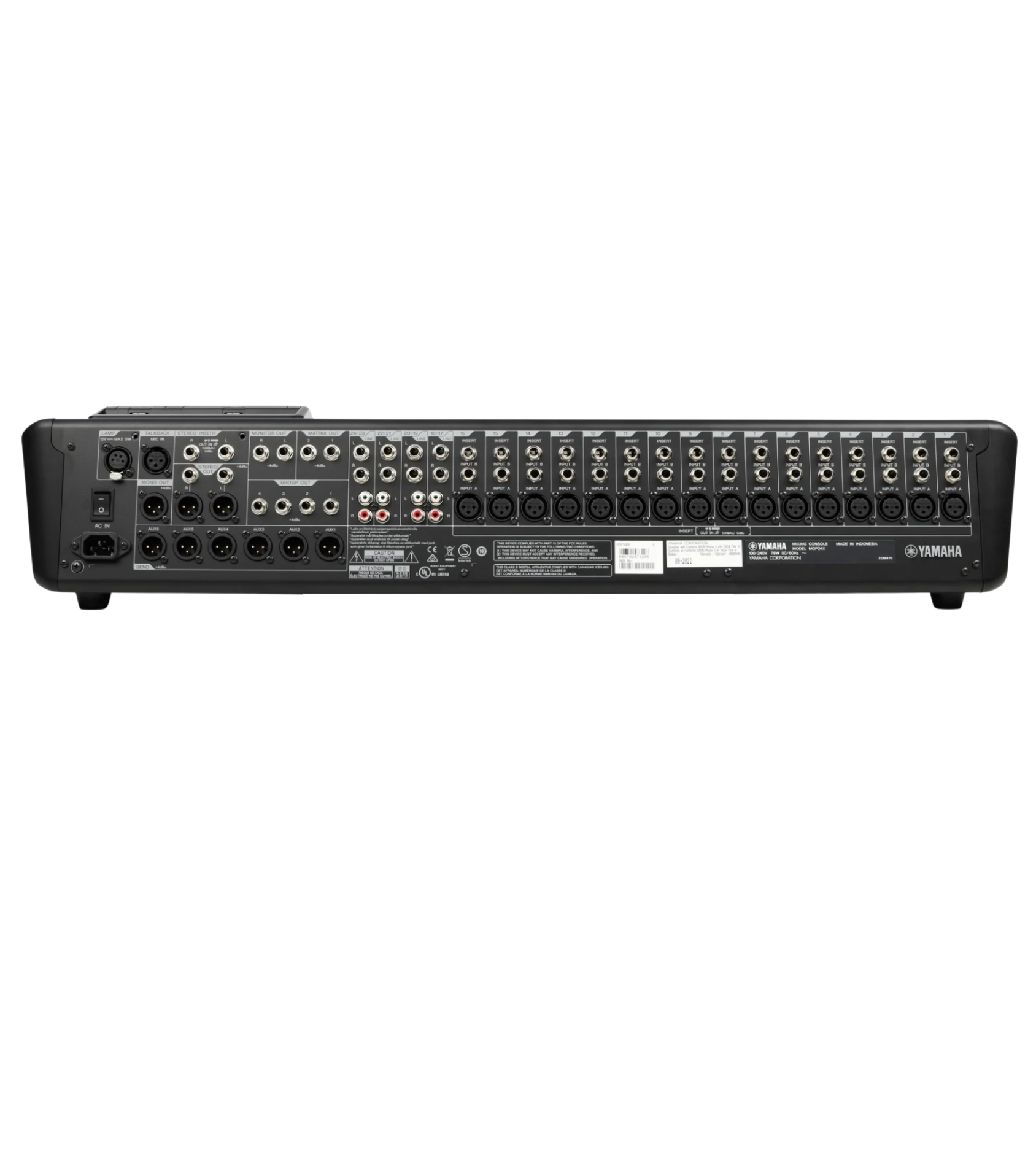

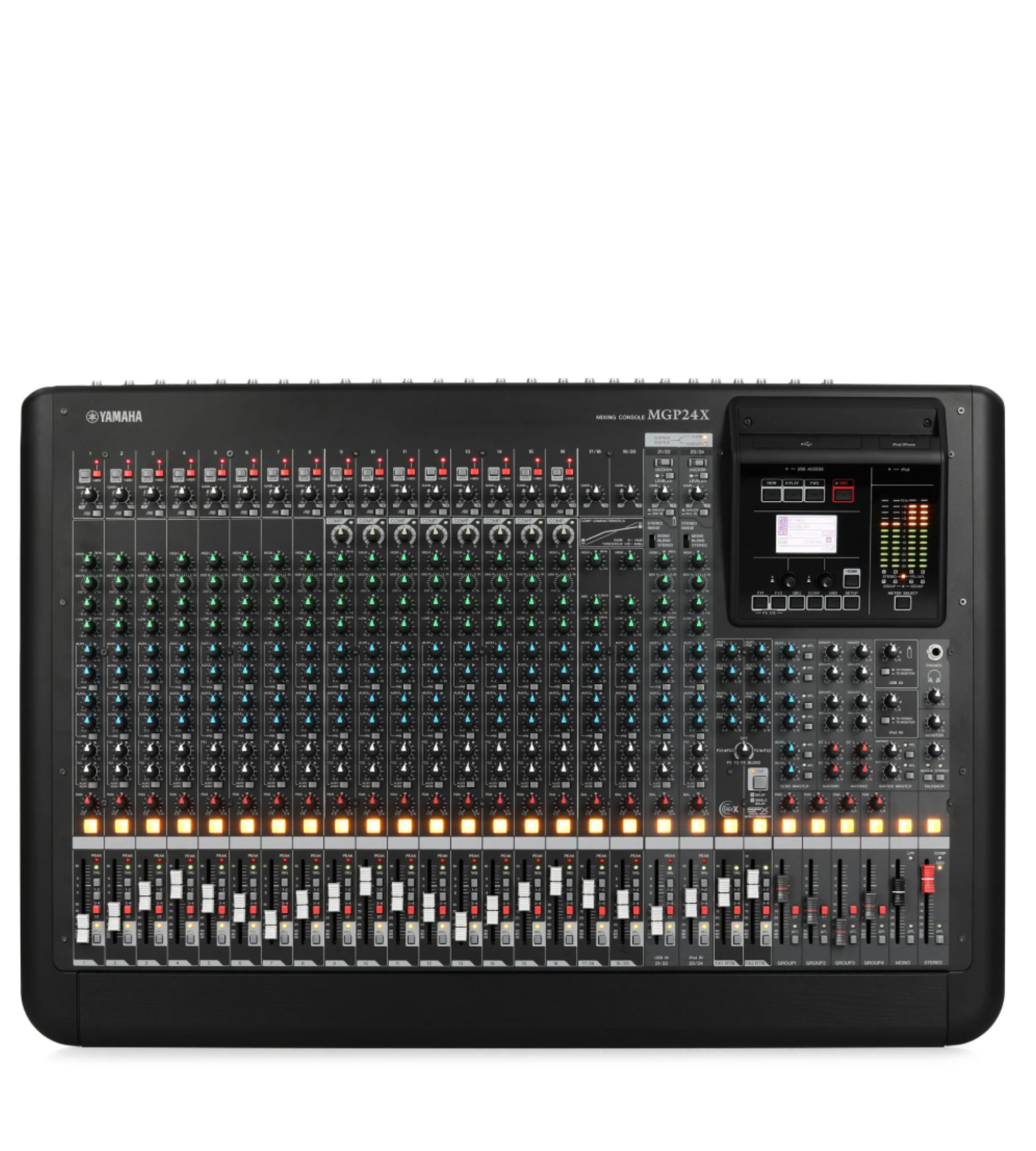

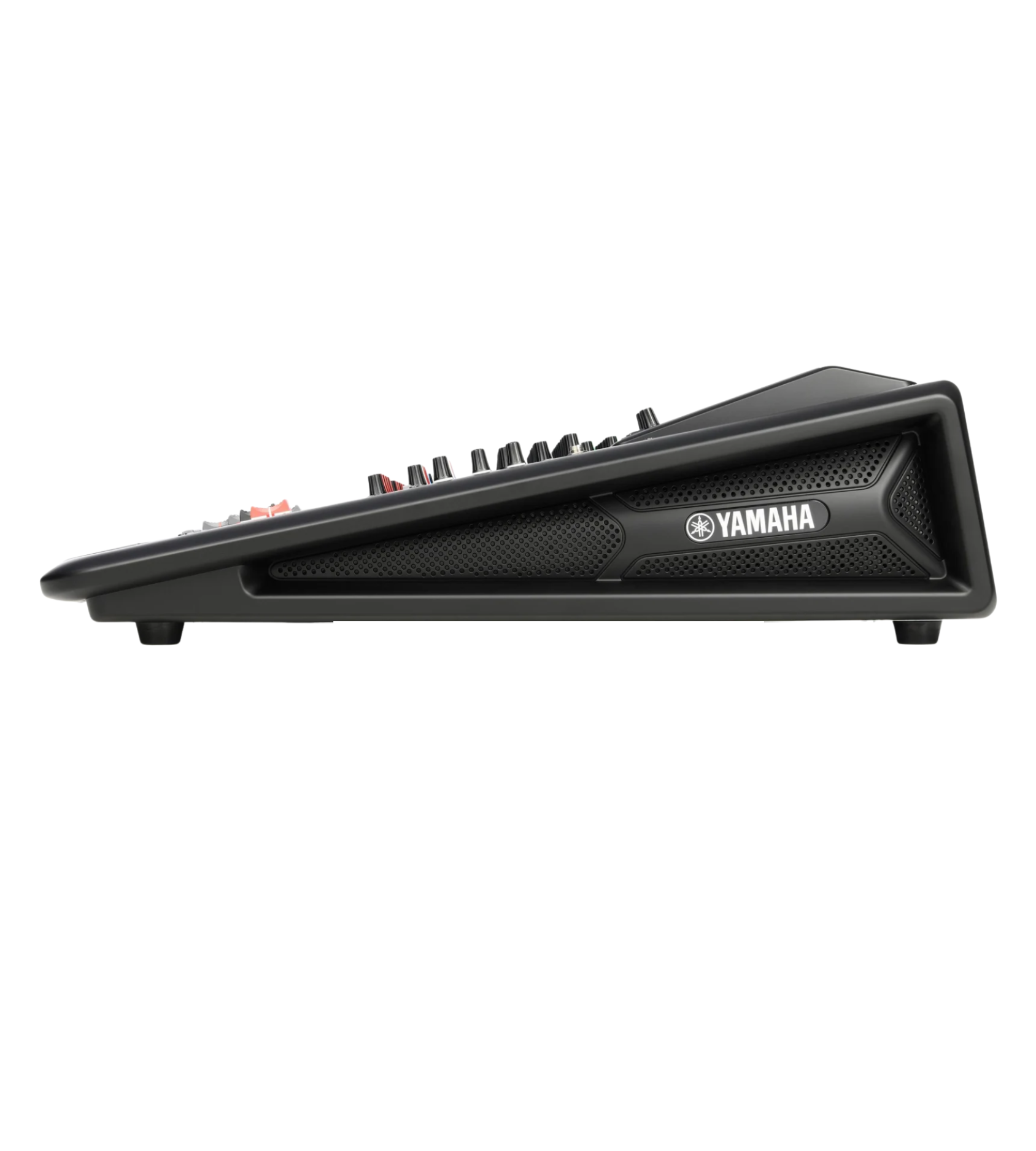

YAMAHA MGP24X 24 CHANNELS ANALOG MIXER

YAMAHA MGP24X 24 CHANNELS ANALOG MIXER

₱89,000.00 PHP
₱89,000.00 PHP
Sale Sold out

The Yamaha MGP24X is a premium analog mixer built for live sound, recorded performances, and installations. With 24 input channels, class-A D-PRE mic preamps, intuitive one-knob compression, premium EQ, and built-in DSP effects—including stereo hybrids and USB recording—it's a hybrid mixing powerhouse in a road-ready chassis.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box
  • Product Manual

  • 24 line inputs (16 mono + 4 stereo) and 16 mic inputs with 48 V phantom & high-pass filter per channel
  • Discrete Class-A D-PRE mic preamps with inverted Darlington circuit design
  • X-pressive EQ using Yamaha’s VCM (Virtual Circuit Modeling) technology
  • 1-Knob Compressors with LED indicators on each channel
  • Stereo Hybrid Channel with DSP-powered Priority Ducker, Leveler, and Stereo Image
  • Dual onboard effects: REV-X reverb (8 programs) and SPX multi-effects (16 programs)
  • USB Device port plus iPod/iPhone digital input for playback and control
  • Graphic EQ with selectable 9-band flex or 14-band fixed modes; multiband compressor

  • Power requirements: 100–240 V, 50/60 Hz; maximum power consumption: ~86 W
  • Total harmonic distortion: 0.02% (20 Hz–20 kHz @ +14 dBu)
  • Frequency response: +0.5/–1.0 dB across 20 Hz–20 kHz
  • Equivalent input noise: –128 dBu; Residual output noise: around –92 dBu
  • Crosstalk: –74 dB @ 1 kHz
  • USB: Device mode for recording/playback; digital iPod/iPhone input
  • I/O Routing: Stereo Out, Mono Out, Monitor Out, 6 AUX Sends, 4 Group Buses, 2 Matrix Outs, Phones Out, Inserts

  • Width: 819 mm (32.2")
  • Height: 169 mm (6.7")
  • Depth: 565 mm (22.2")

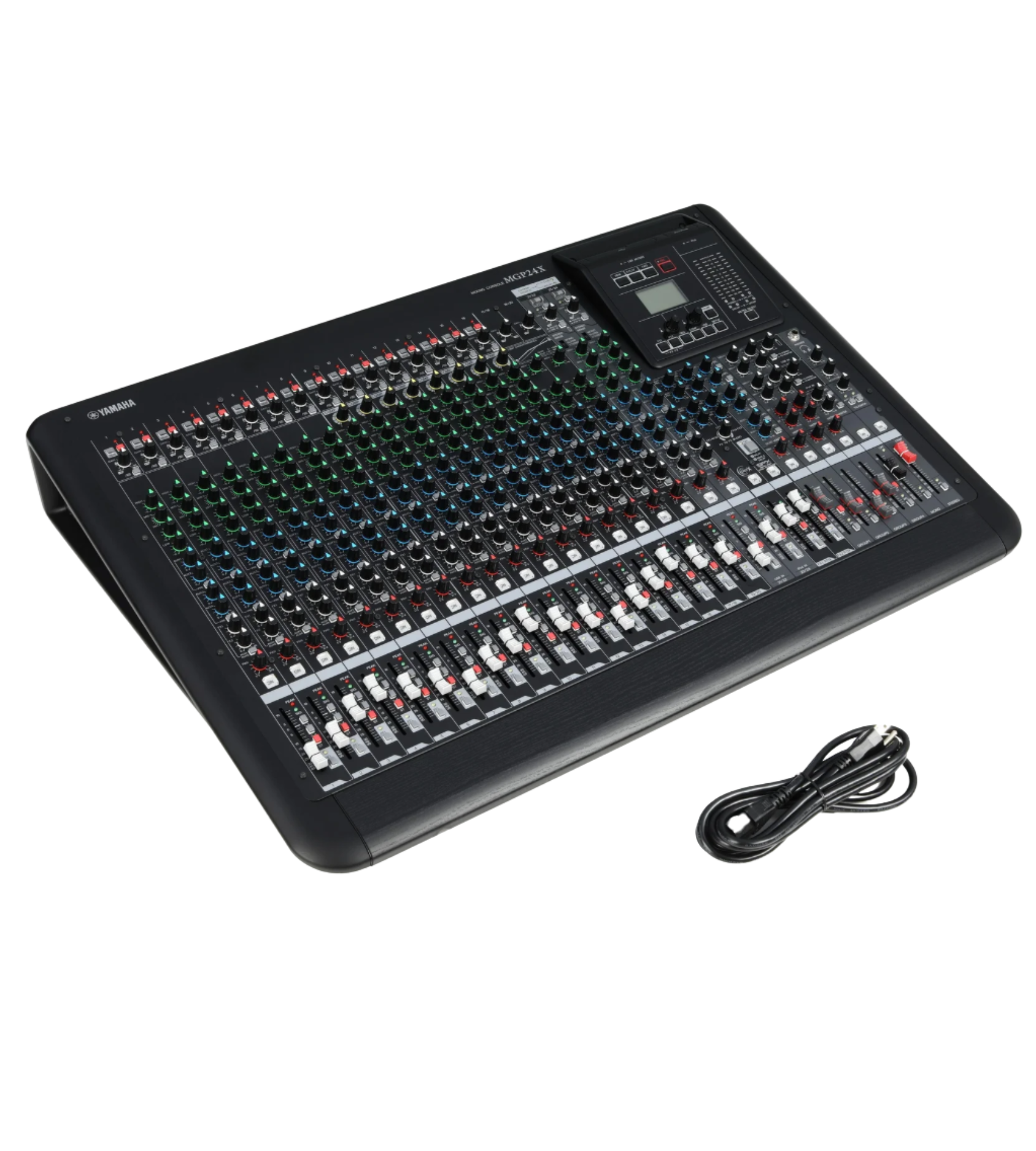

  • Yamaha MGP24X mixer console
  • AC power cord
  • Owner’s manual
