- Up to 6 Mic / 12 Line Inputs (4× mono MIC/LINE + 2× mono/stereo MIC/LINE + 2× stereo LINE)
- Discrete D-PRE Class-A mic preamps with inverted Darlington design
- 1-knob compressors on channels 1–4 with LED meters
- High-grade SPX effects engine with 24 presets and parameter control
- Pad switches and high-pass filters on mic channels for control over loud sources
- 24-bit/192 kHz USB audio interface (2 in / 2 out) for recording/playback
- Universal internal power supply for global compatibility
- Rugged metal chassis—compact and reliable
- Total harmonic distortion: 0.03% @ +14 dBu; 0.005% @ +24 dBu (gain knob at minimum)
- Frequency response: +0.5 / –1.5 dB (20 Hz – 48 kHz)
- Equivalent input noise: –128 dBu; Residual output noise: –102 dBu
- Crosstalk: –78 dB @ 1 kHz
- Input channel functions: Pad (–26 dB), High-pass filter (80 Hz), 1-knob compressor, 3-band EQ on channels 1–8, 2-band EQ on 9–12
- USB audio: Class 2.0, up to 24-bit/192 kHz, 2 in / 2 out
- Buses and I/O: 1 stereo bus, 2 group buses, 2 AUX (including FX), plus multiple outputs including stereo, monitor, group, and phones
- Footswitch control via optional FC5 (for FX on/off)
- Power Consumption: approximately 22–30 W
- Width: 308 mm (12.1″)
- Height: 118 mm (4.6″)
- Depth: 422 mm (16.6″)

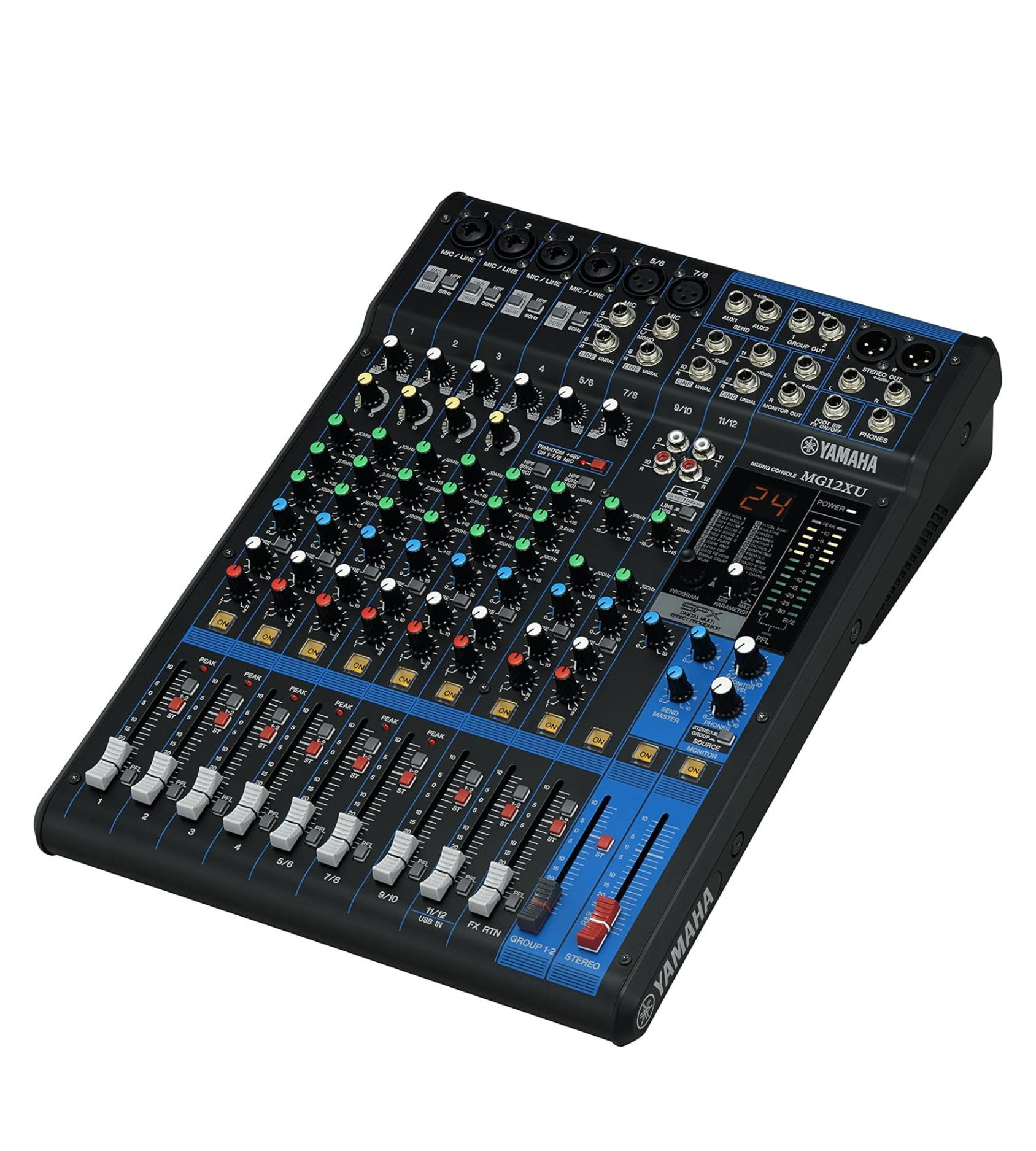

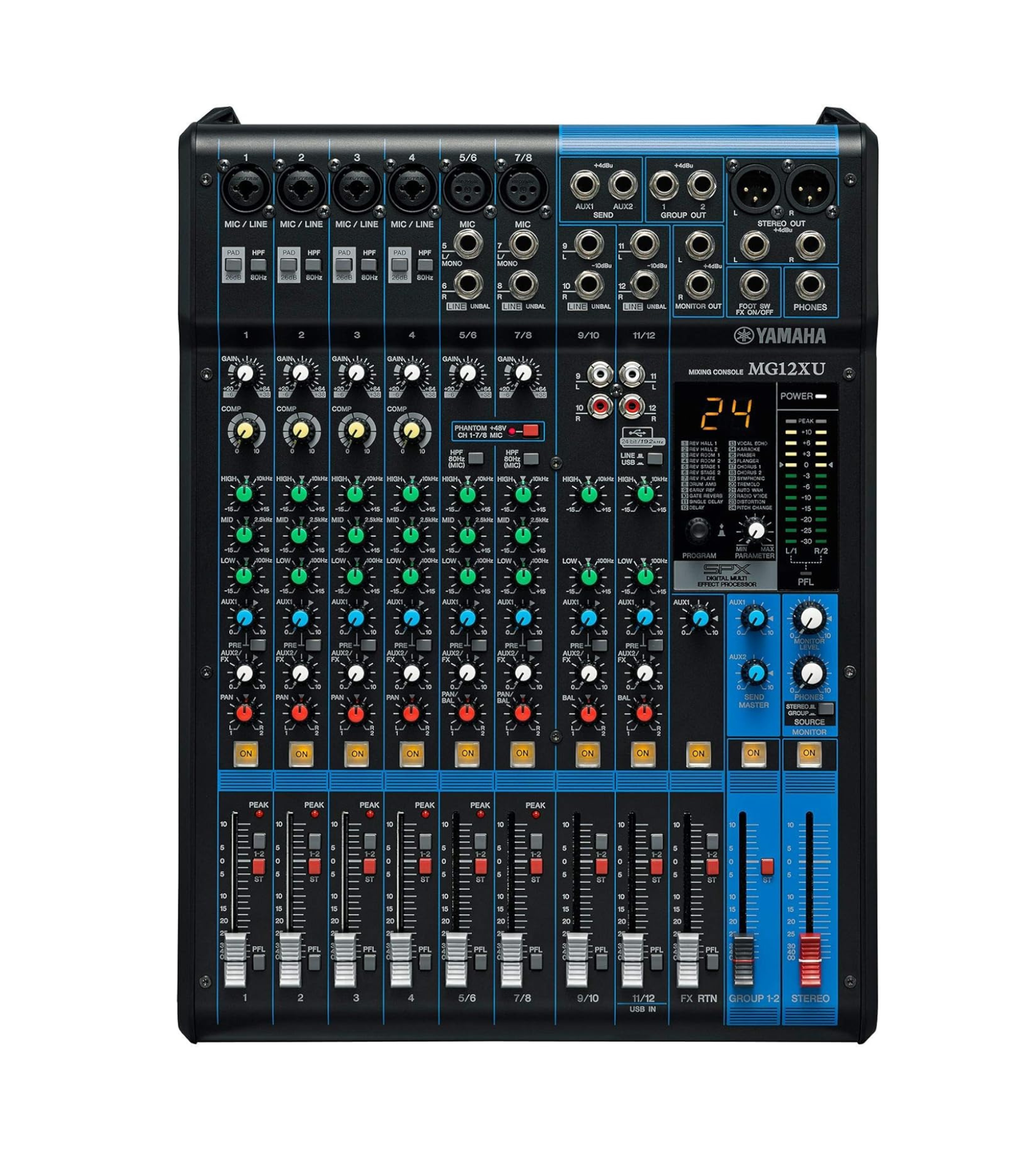

- Yamaha MG12XU mixer
- AC power cord
- Owner’s manual and spec sheet
- Download access for Cubase AI DAW
