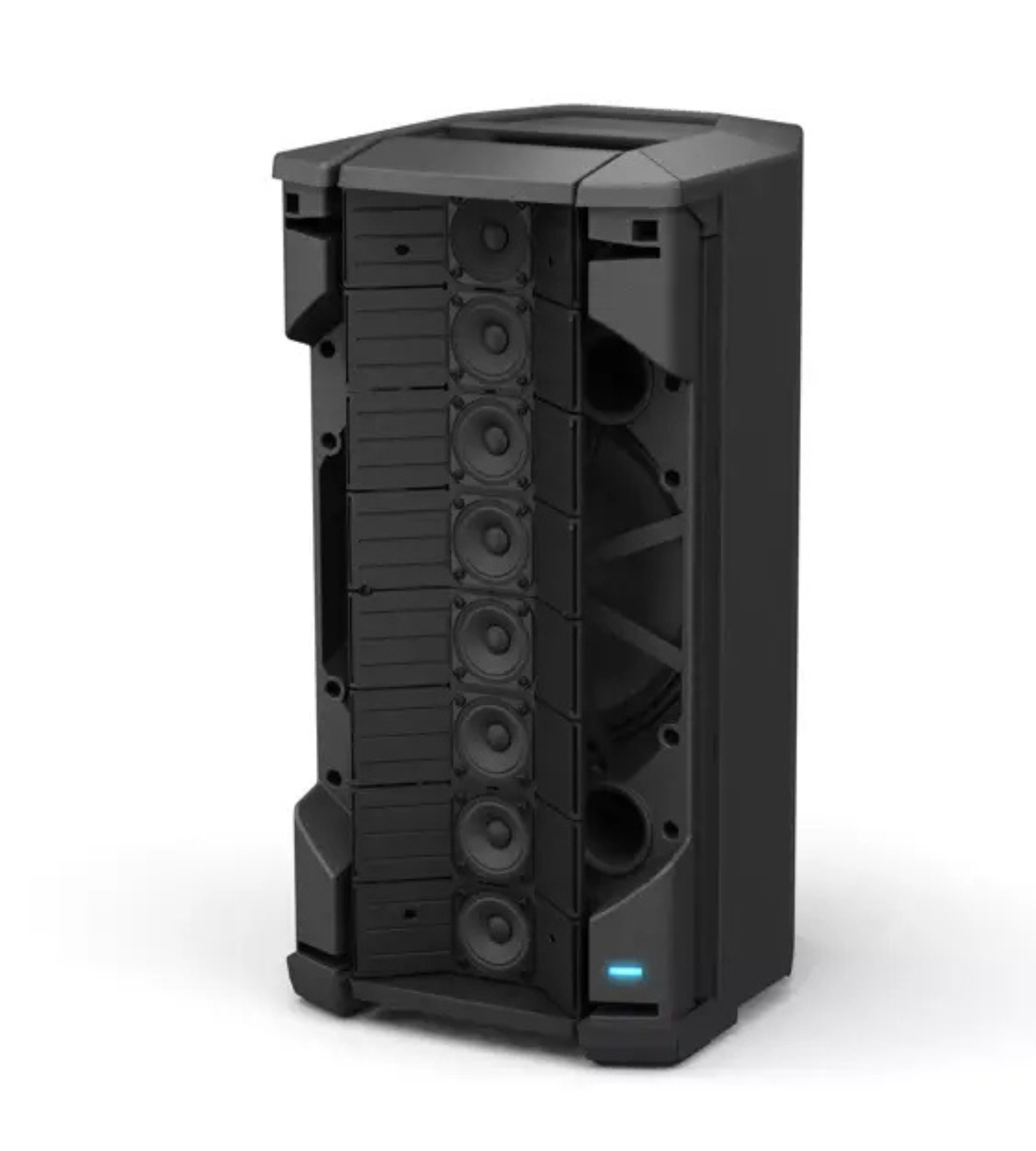

- 1000-Watt self-powered design with Class-D amplification and nine transducers (8 mid/high drivers + 12″ woofer)
- Adjustable Flexible Array technology: choose between Straight, C, J, or Reverse J coverage patterns
- Automatic EQ that adapts tonal balance based on the selected array configuration
- Optimized vocal and midrange clarity via a lower-than-normal crossover point
- Portable design with integrated handles and hidden cable channels

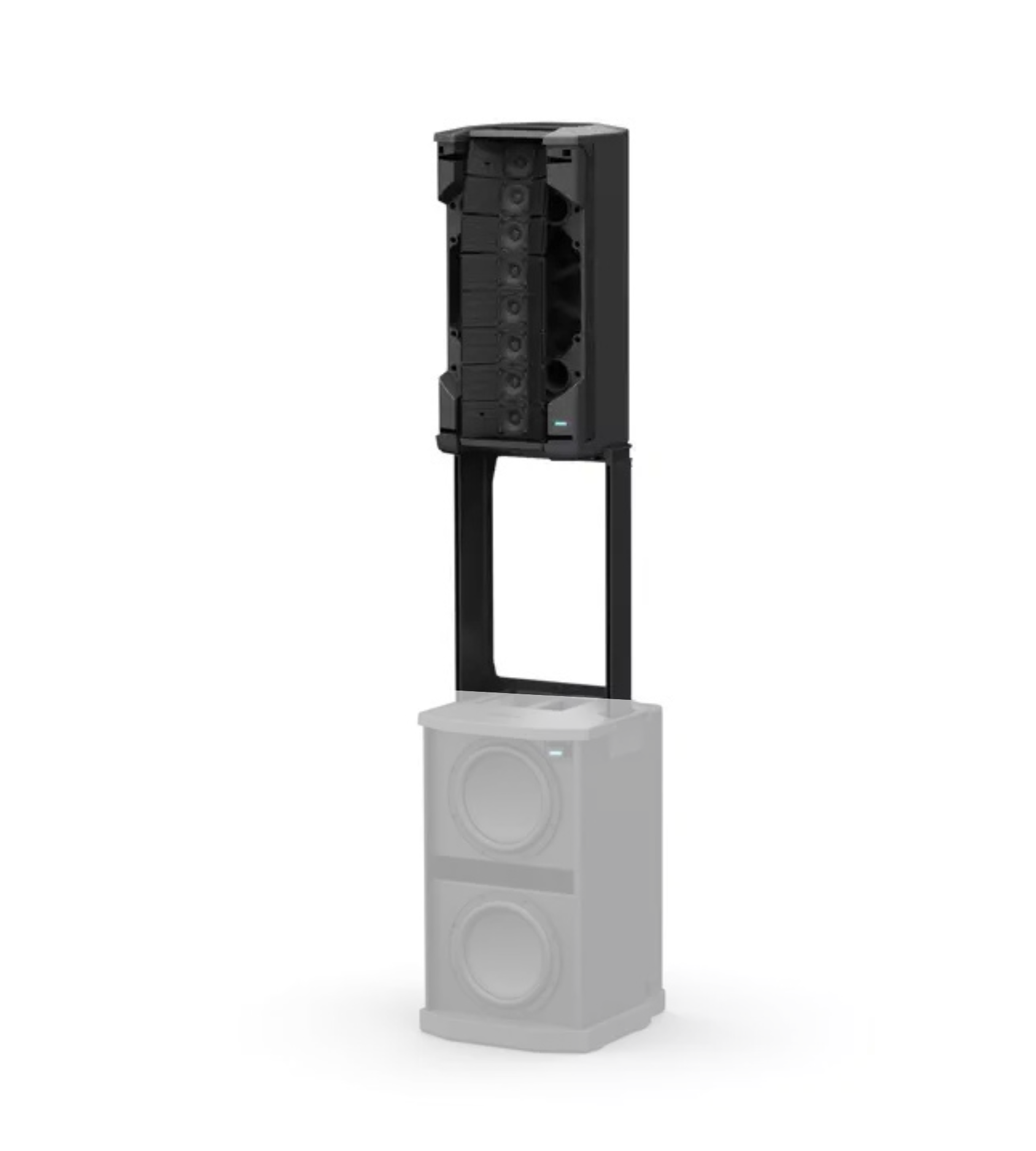

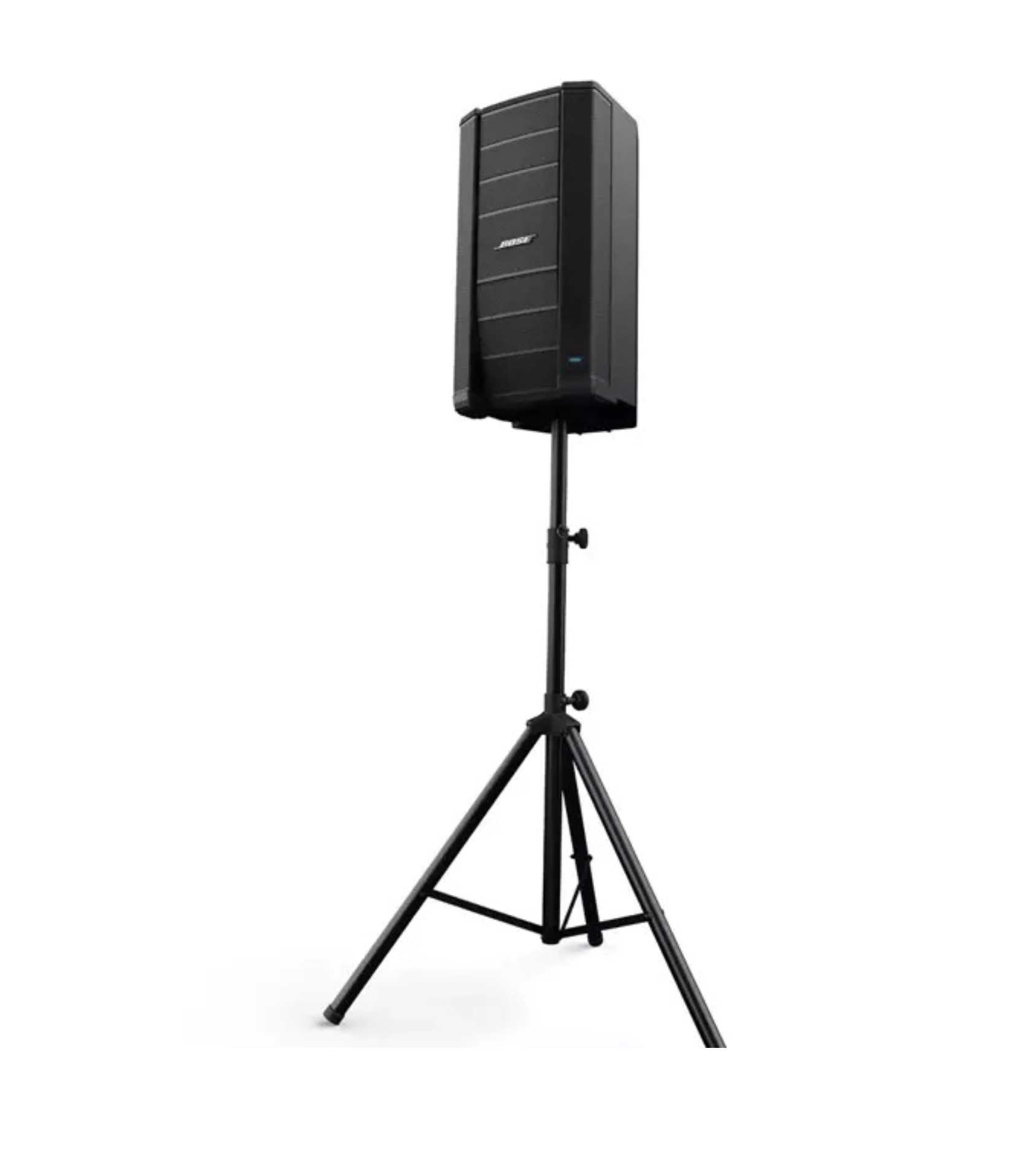

- Compatible with standard 35 mm speaker stands and Bose F1 Subwoofer (sold separately)
- Power: 1000 W peak, Class-D
- Frequency Range (–10 dB): 43 Hz – 20 kHz
- Max SPL @ 1 m (peak): 132 dB
- Coverage (C-position): ~100° horizontal × 40° vertical
- Crossover: 600 Hz, 4th-order Butterworth
- Inputs: Channel 1 – XLR/¼″ combo; Channel 2 – ¼″ TS/TRS + RCA stereo pair
- Signal Processing: Integrated DSP includes output EQ, limiter; Automatic EQ adjusts per array pattern

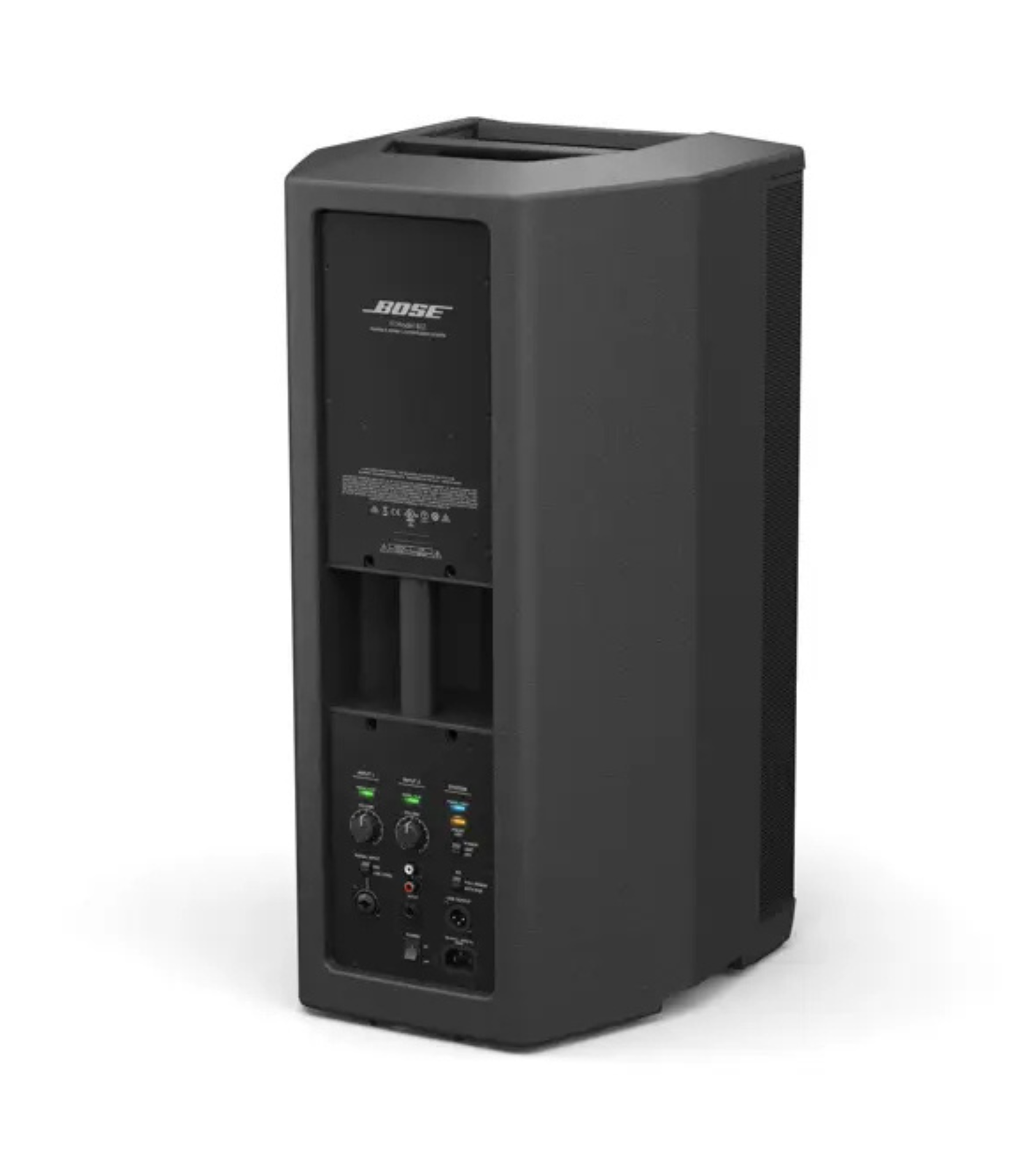

- Indicators & Controls: Volume, input select, front-LED function, EQ pattern selector; LEDs for power/fault, signal/clip, limit, front-panel
- Enclosure: High-impact composite material with powder-coated steel grille
- 26.1 × 33.1 × 37.2 cm (HxW×D) — 663 × 334 × 372 mm
- F1 Model 812 loudspeaker
- IEC power cord
- Owner’s guide / quick start guide
