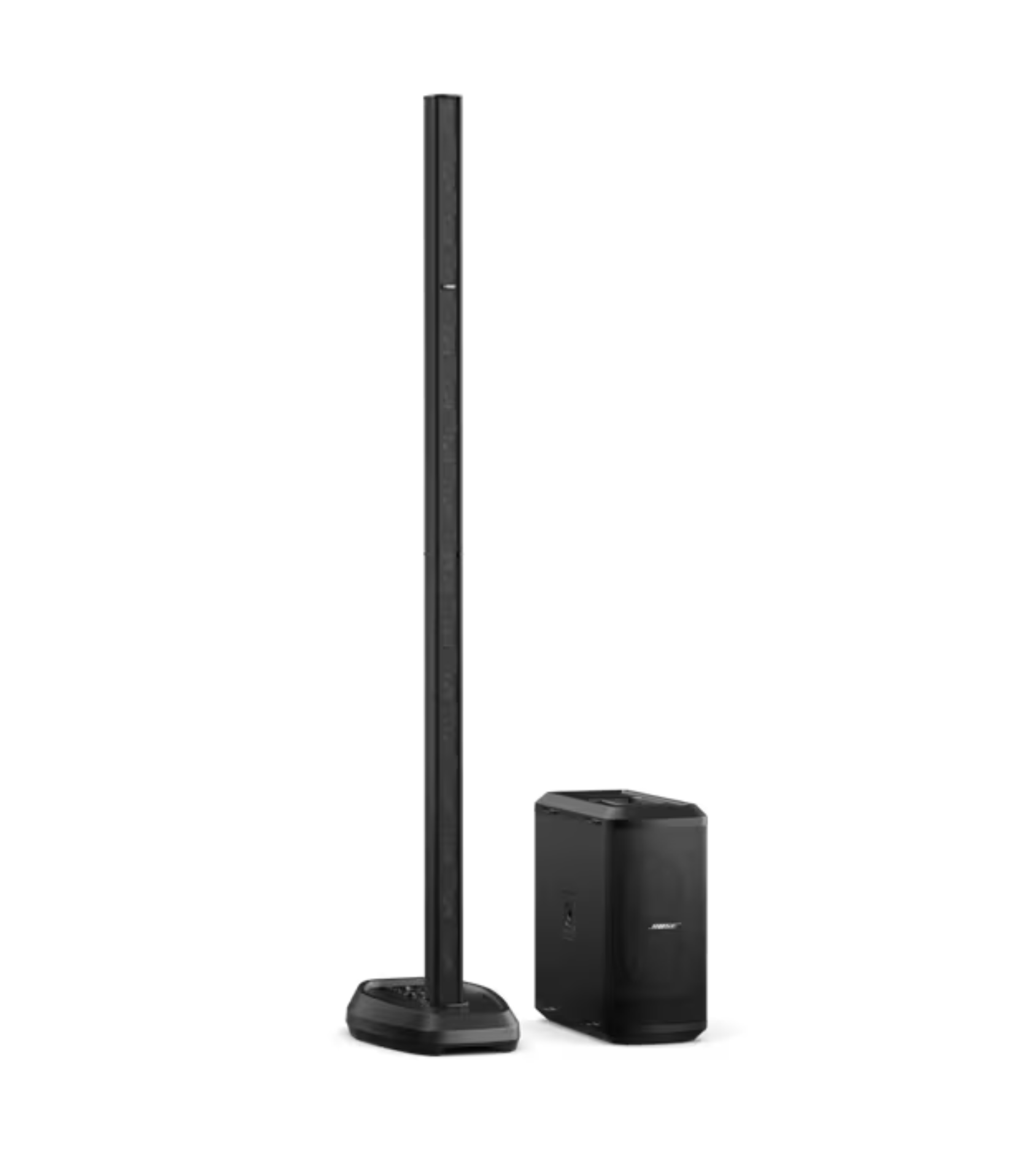

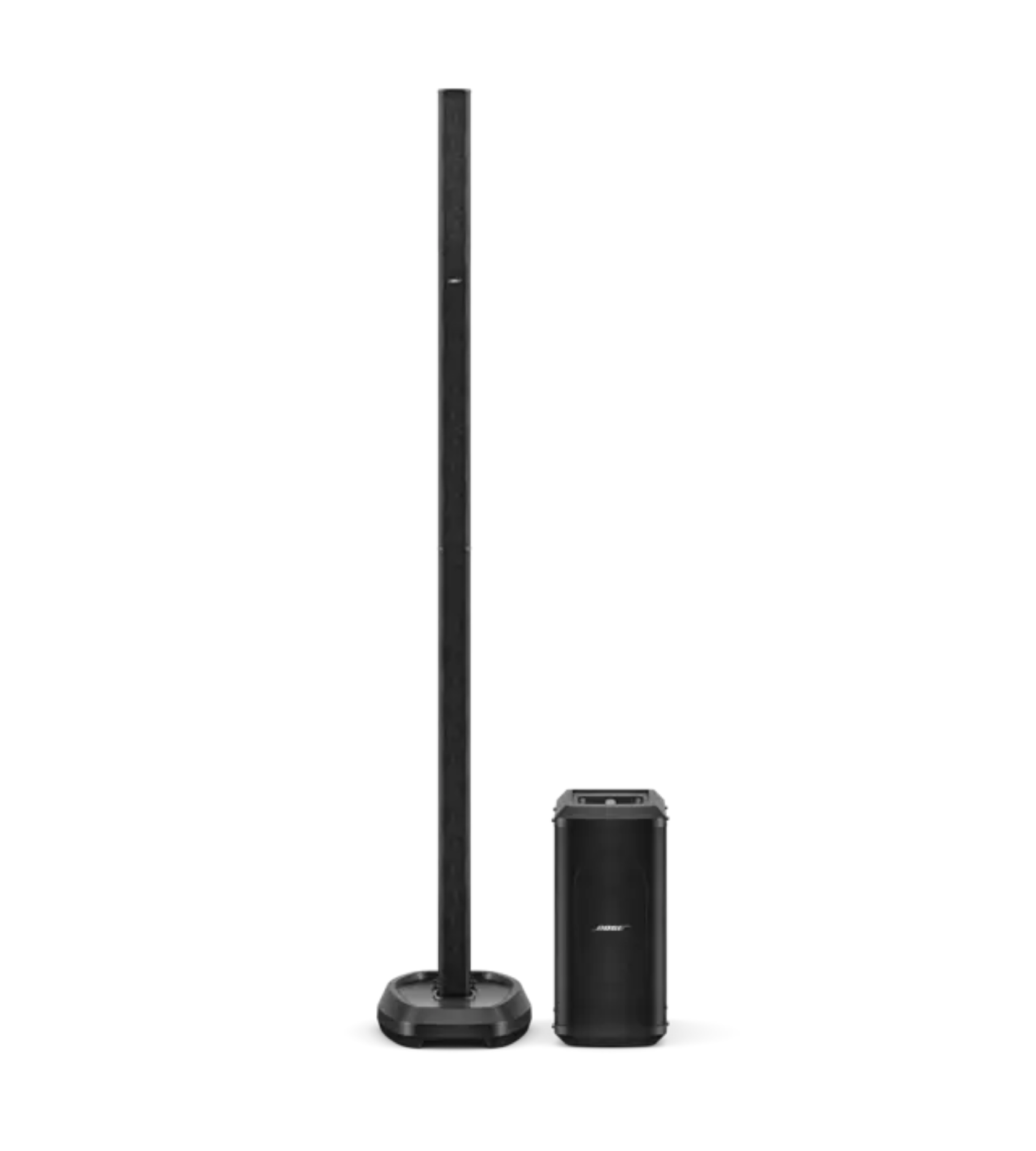

- 32-driver straight line array with 180° horizontal and 0° vertical coverage
- Superior vocal and instrument clarity across medium-to-large venues
- Built-in 3-channel digital mixer with ToneMatch presets, reverb, and phantom power
- Bluetooth® streaming and wireless control via the L1 Mix app
- Compatible with modular Sub1 or Sub2 RaceTrack bass modules for deep, compact bass
- System EQ presets (Live, Music, Speech) and illuminated controls for real-time adjustments
- Portable design optimized for fast setup and transport
- Frequency Range (–10 dB): 32 Hz – 18 kHz
- Frequency Response (–3 dB): 40 Hz – 16 kHz
- Calculated Maximum SPL @ 1 m (array alone): 117 dB continuous; 123 dB peak
- Amplification: Two 480 W Class-D channels (low-frequency & high/mid-frequency)
- Mixer Inputs: Channels 1 & 2 (XLR/¼″ combo with phantom power), Channel 3 (¼″, ⅛″ aux, Bluetooth)
- Connectivity: ToneMatch port, XLR line output

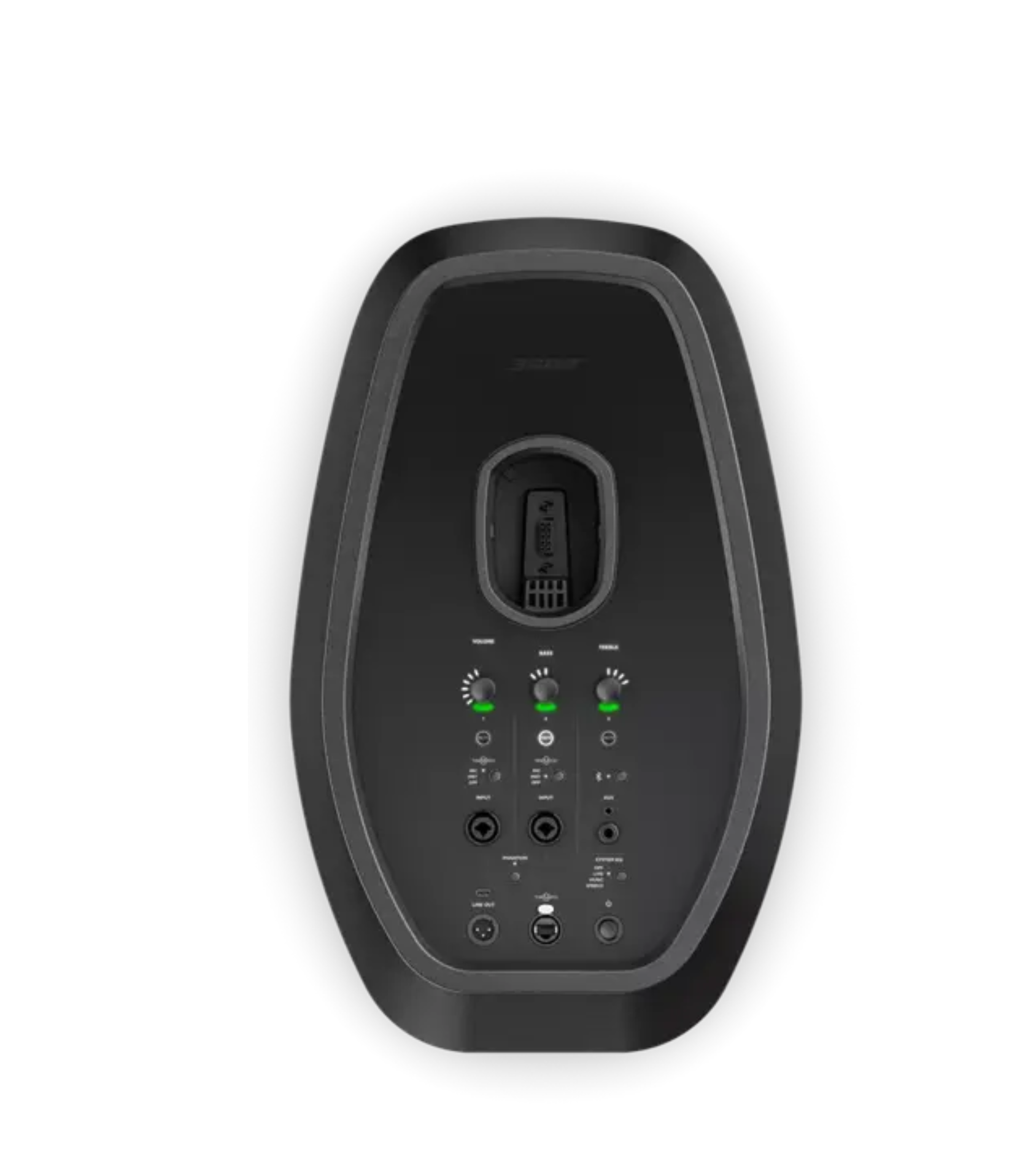

- Controls: Three digital rotary encoders with LED indicators
- Power Input: 100–240 VAC (IEC); fan-assisted cooling
- Enclosure Materials: Power stand – high-impact polypropylene; Arrays – ABS
- System EQ and ToneMatch integration with app control
- 212 × 35.1 × 57.3 cm

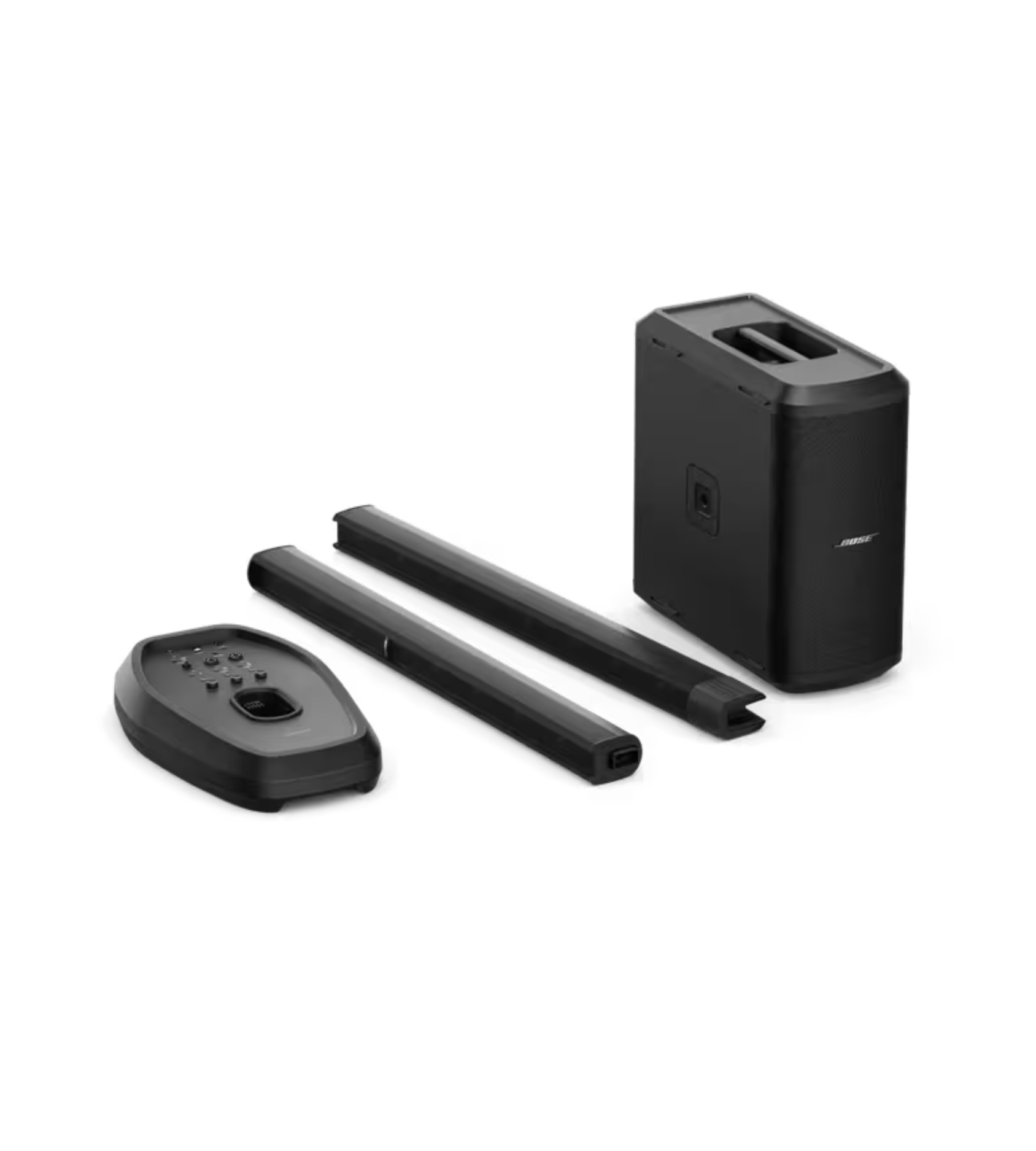

- Bose L1 Pro 32 line array system (arrays & power stand)
- Carry bags for the arrays and power stand
- SubMatch cable
- IEC power cord
- Bass-module slip cover
