- Features
- Specifications
- Dimensions
- Whats in the box
- J-shaped line array with 16 articulated 2″ neodymium drivers (180° horizontal, 0 to –30° vertical coverage)
- Integrated subwoofer with 10″ × 18″ neodymium RaceTrack driver for deep bass without bulk

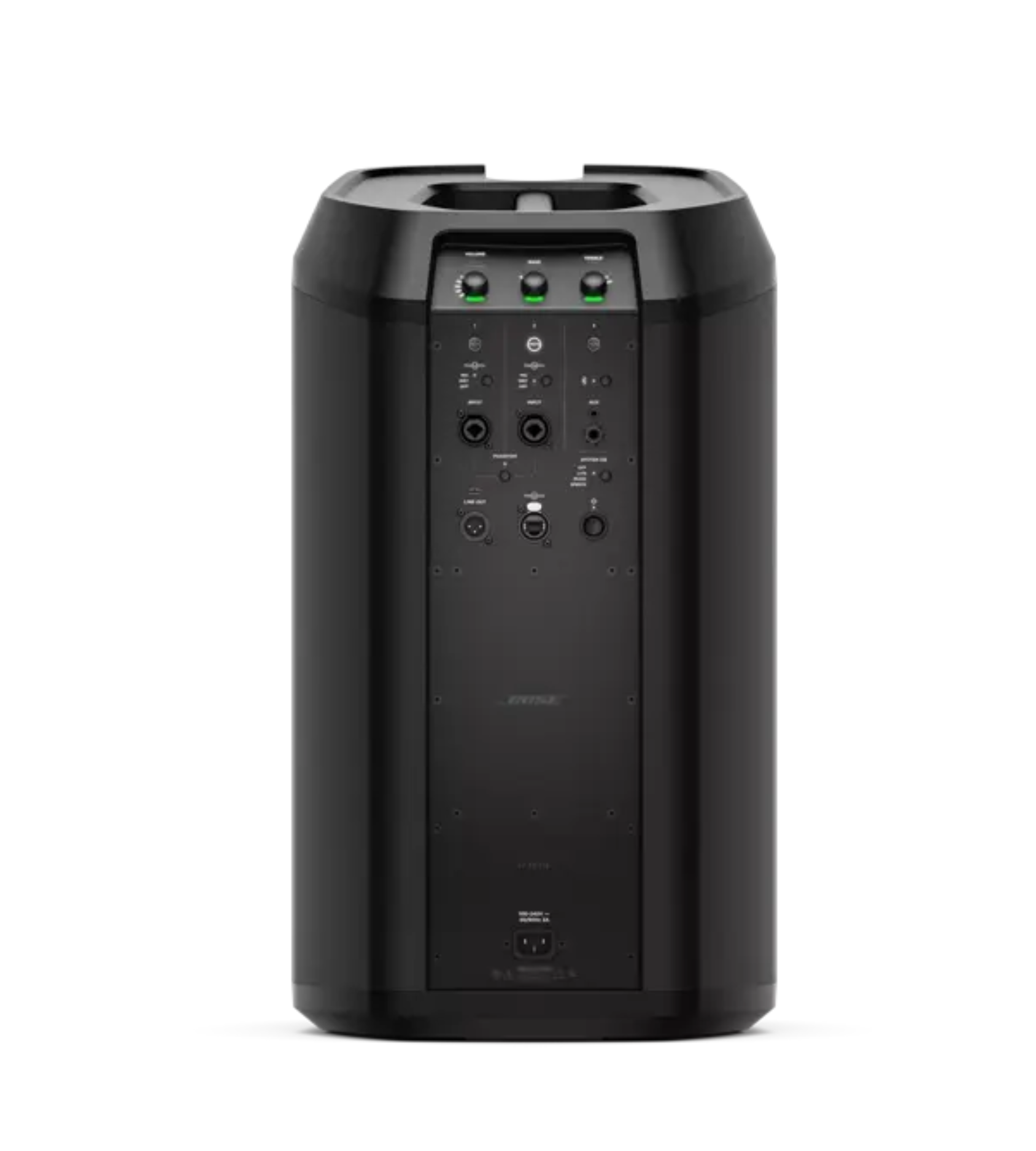

- Built-in 3-channel mixer with ToneMatch presets, reverb, EQ, and phantom power
- Bluetooth streaming and wireless control via the Bose Music / L1 Mix app
- System EQ presets (Live, Music, Speech) and illuminated digital rotary controls
- ToneMatch port for expansion with Bose ToneMatch mixers
- Frequency Range (–10 dB): 31 Hz – 18 kHz :contentReference[oaicite:1]{index=1}
- Calculated Max SPL @ 1 m: 124 dB peak :contentReference[oaicite:2]{index=2}
- Amplification: 250 W Class-D for mid/high array; 1000 W Class-D for subwoofer :contentReference[oaicite:3]{index=3}
- Mixer Inputs: 2 x XLR/¼″ combo with phantom power, 1 x ¼″ + 1/8″ aux, Bluetooth :contentReference[oaicite:4]{index=4}
- Output: XLR line output; ToneMatch port for digital audio and power :contentReference[oaicite:5]{index=5}
- Enclosure Materials: Power stand – high-impact polypropylene; Array & extension – high-impact ABS :contentReference[oaicite:6]{index=6}
- Coverage: 180° horizontal × 0 / –30° vertical (J-shaped array) :contentReference[oaicite:7]{index=7}
- 201.1 × 35.5 × 45.6 cm (extended mode); 170.4 × 35.5 × 45.6 cm (collapsed) :contentReference[oaicite:0]{index=0}

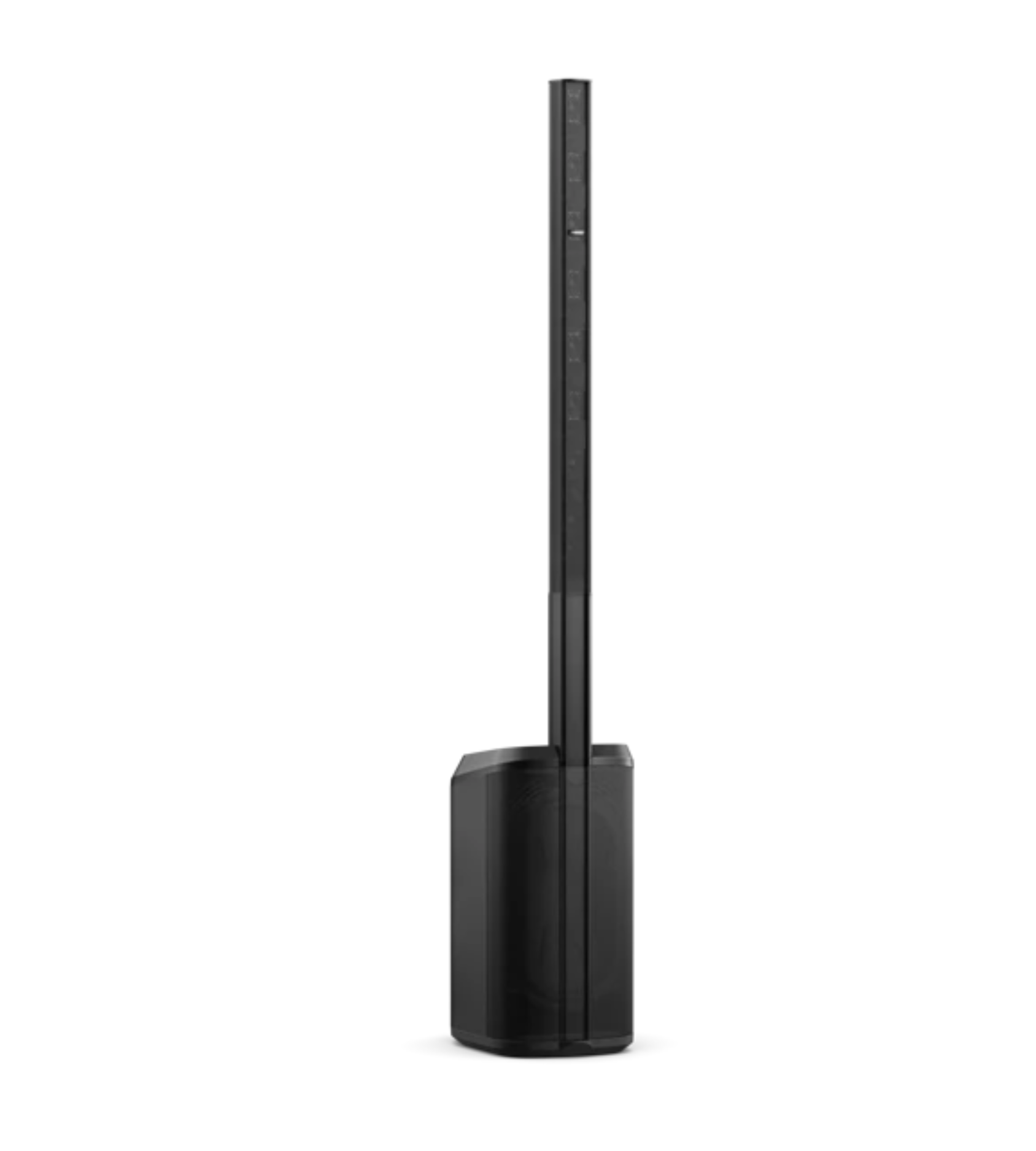

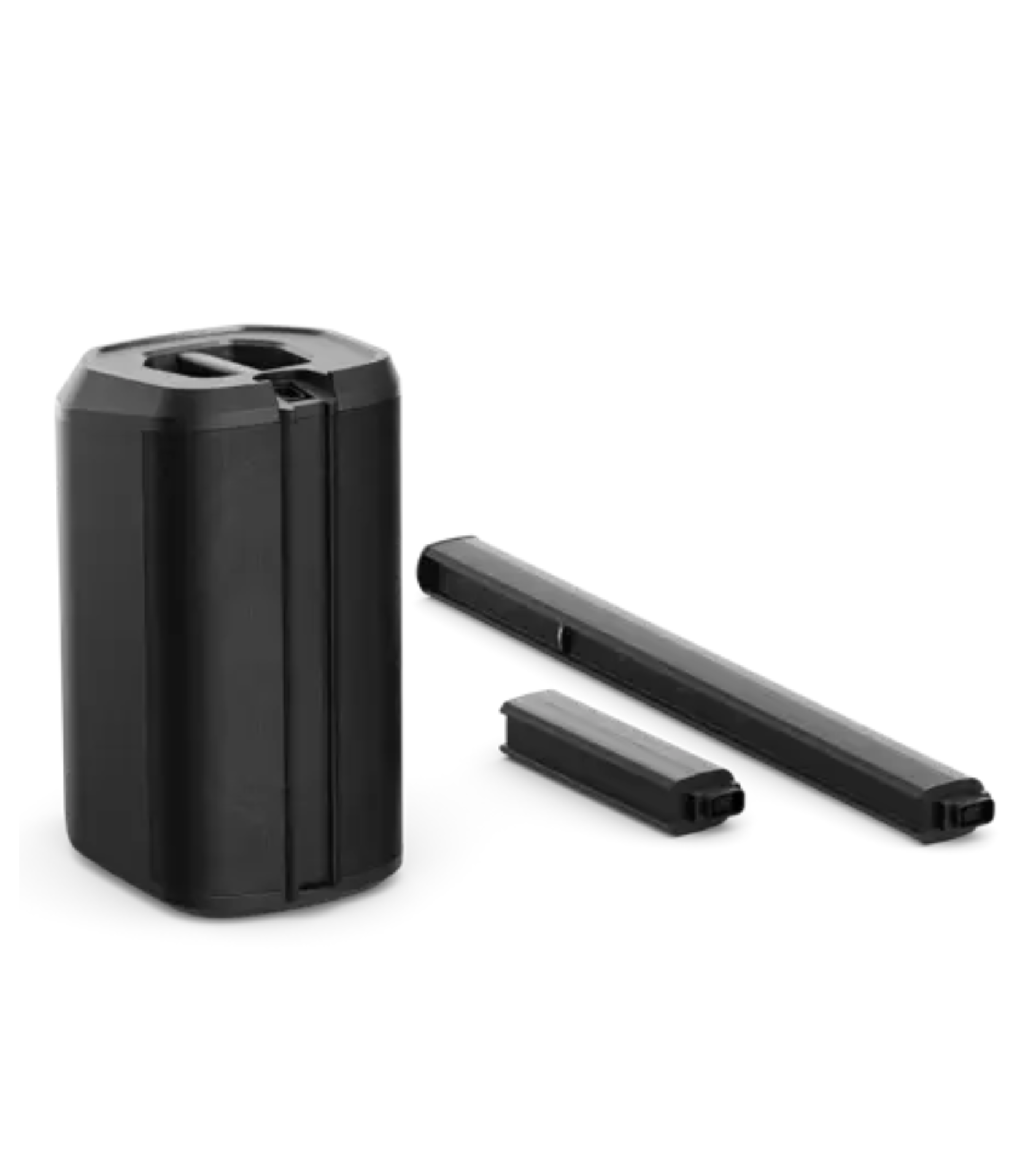

- Bose L1 Pro16 line array system (power stand with subwoofer, speaker array, array extension)
- Carry bag for speaker array and extension
- IEC power cord
