- Features
- Specifications
- Dimensions
- Whats in the box
- 1,000 W Class‑D amplifier running cool without a fan
- Bi‑amped design with 24 dB/octave crossover
- 12″ woofer + 1.5″ titanium-diaphragm compression driver
- Frequency range from 50 Hz to 20 kHz
- Selectable 100 Hz high-pass filter for subwoofer integration

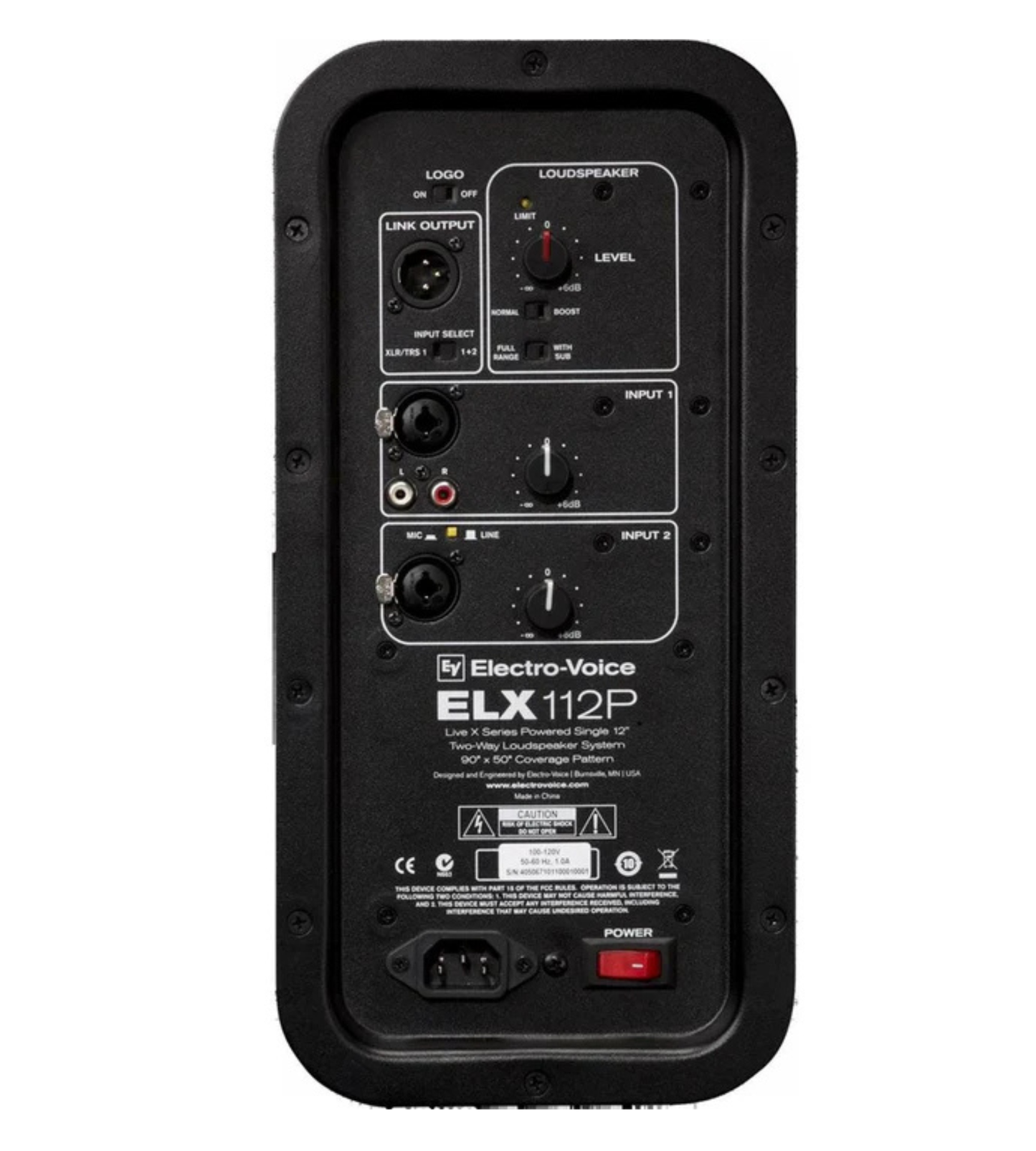

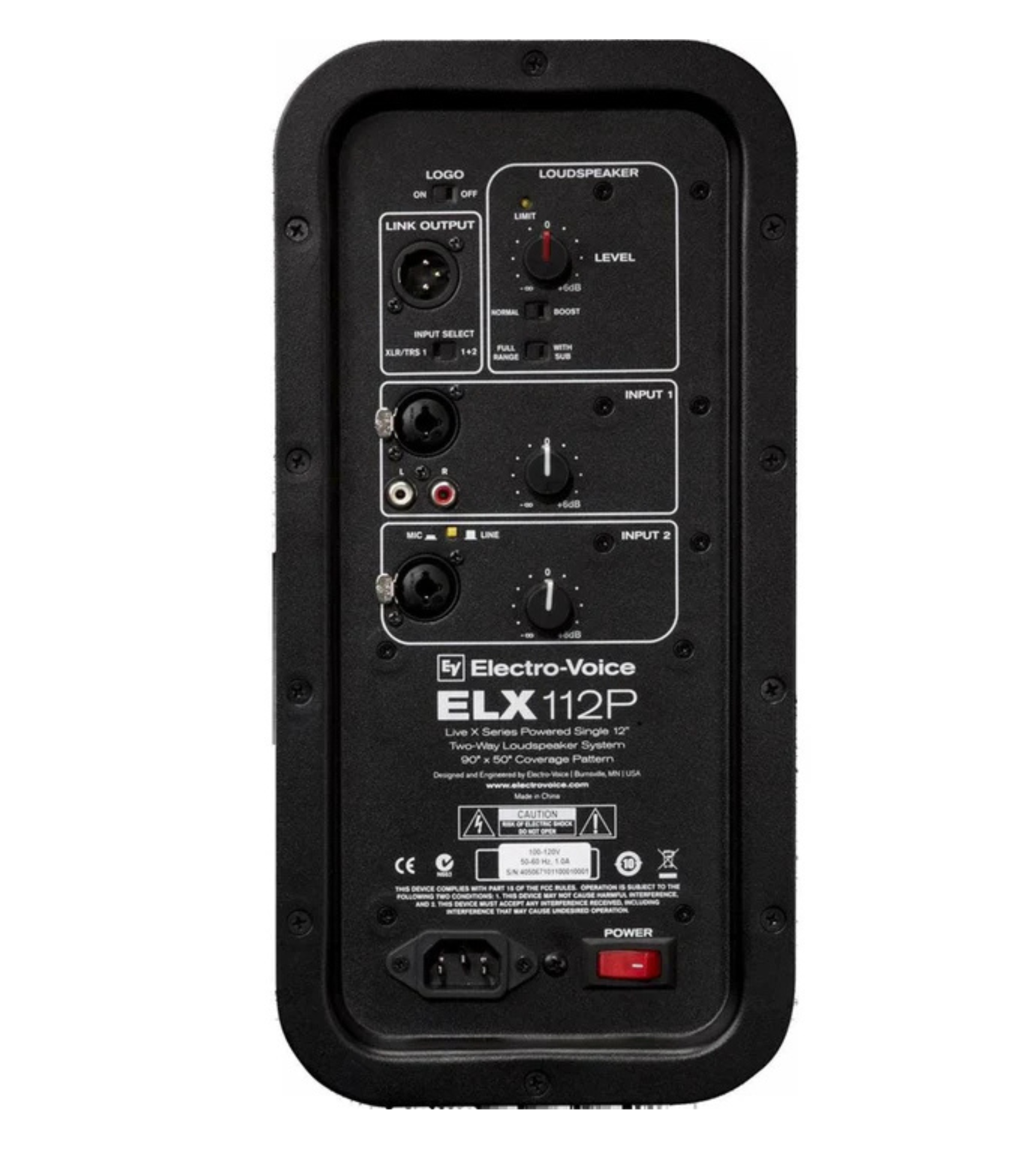

- Dual XLR/TRS combo mic/line inputs + stereo RCA input
- Pre- or post-mix XLR link output for cascading speakers

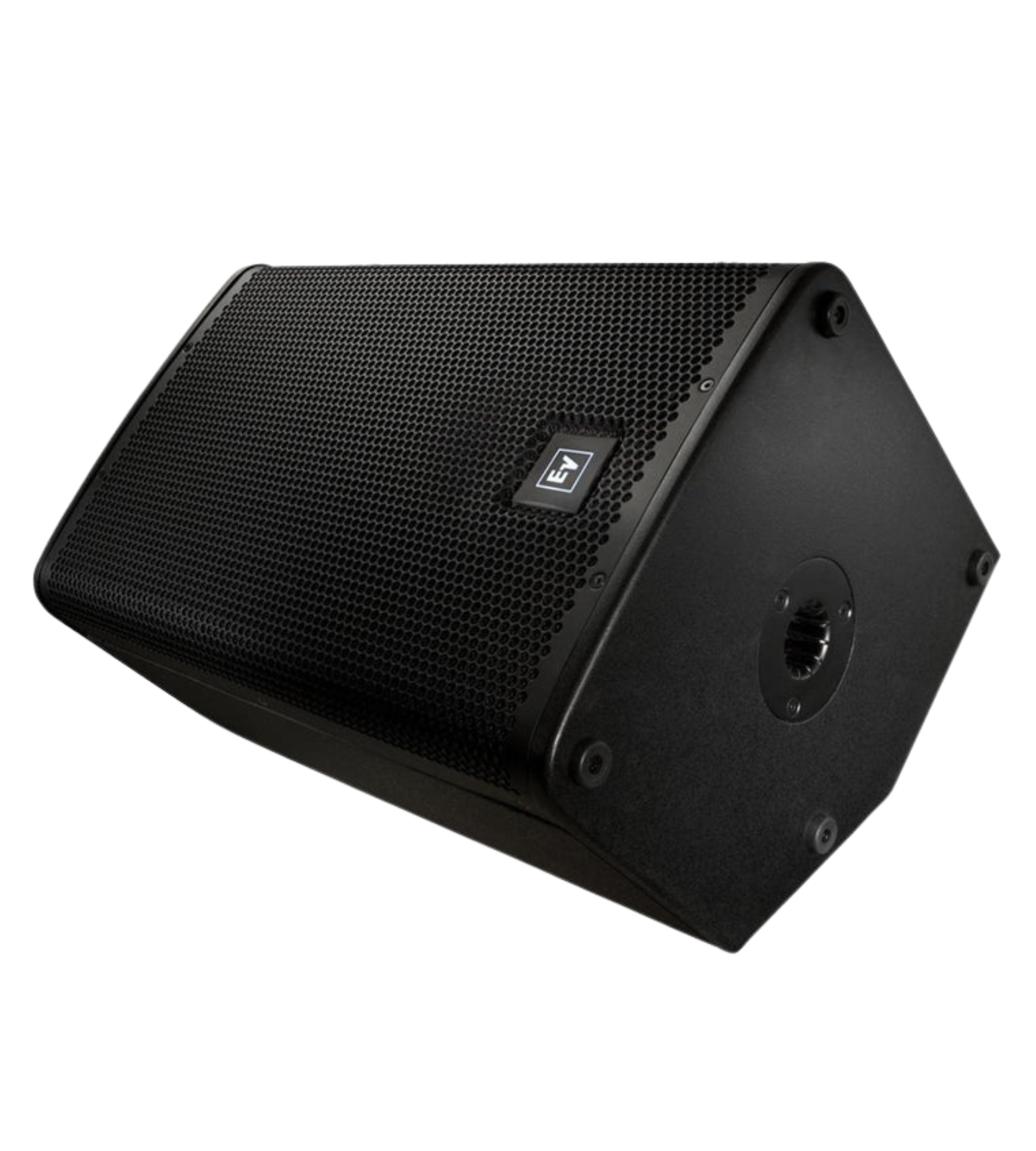

- 60° angled cabinet for use as a floor monitor
- Robust 9-ply plywood enclosure with textured paint
| Specification | Detail |
|---|---|
| Frequency Response (‑3 dB) | 60 Hz – 18 kHz |
| Frequency Range (‑10 dB) | 50 Hz – 20 kHz |
| Max SPL (1 m) | 132 dB |
| Inputs | 2 × XLR/TRS combo, 1 × stereo RCA |
| Output | 1 × XLR Link |
| LF Transducer | 12″ EVS-12K woofer |
| HF Transducer | 1.5″ DH-1K titanium compression driver |
| Crossover Frequency | 1.7 kHz |
| Cabinet Material | 9-ply, 15 mm plywood, internally braced |
| Coverage (‑6 dB) | 90° horizontal × 50° vertical |
| Dimensions (H × W × D) | 607 × 362 × 340 mm |
| Weight | 16.8 kg |
Boxed dimensions: approximately 60.7 × 36.2 × 34.0 cm

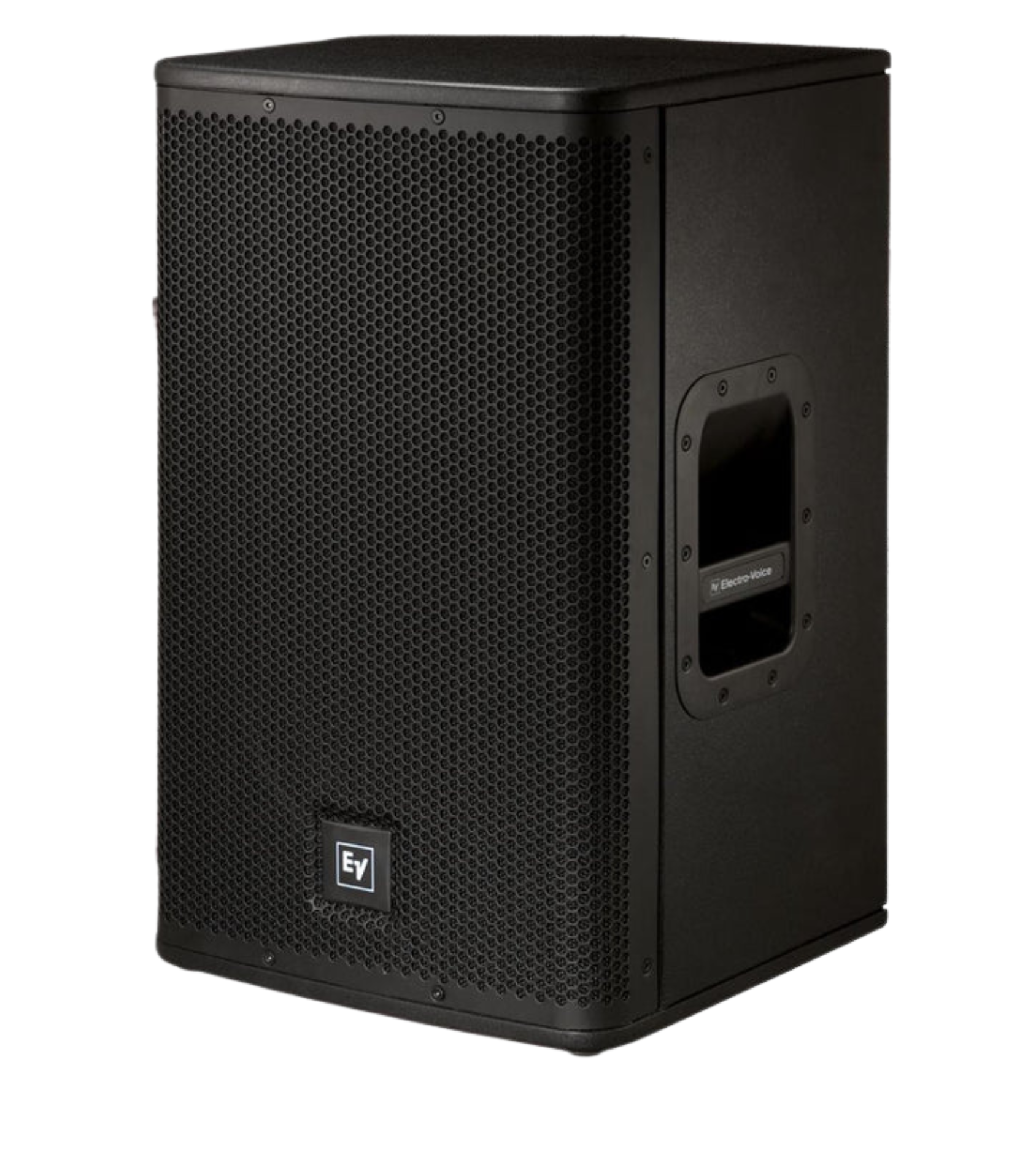

- ELX112P powered speaker
- Power cable
- User manual / quick start guide
