sE ELECTRONICS DM2 TNT

sE ELECTRONICS DM2 TNT

₱9,000.00 PHP
₱9,000.00 PHP
Sale Sold out

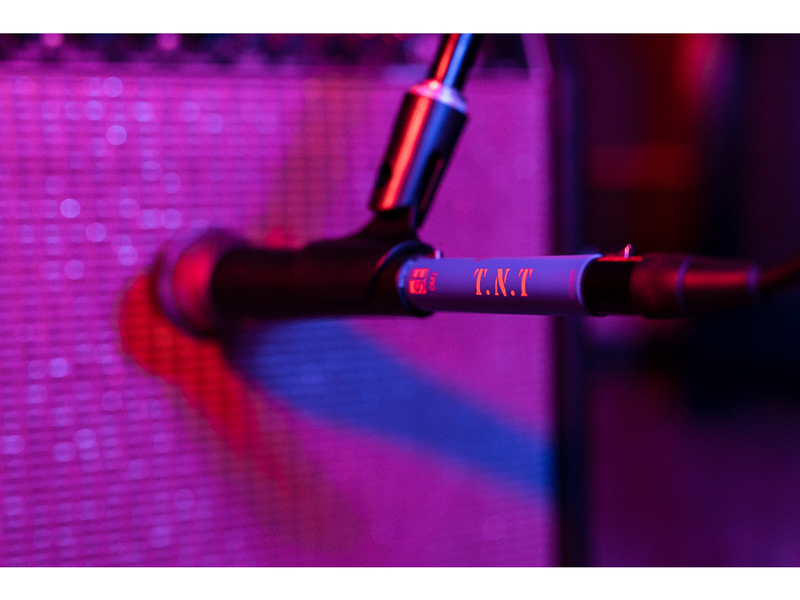

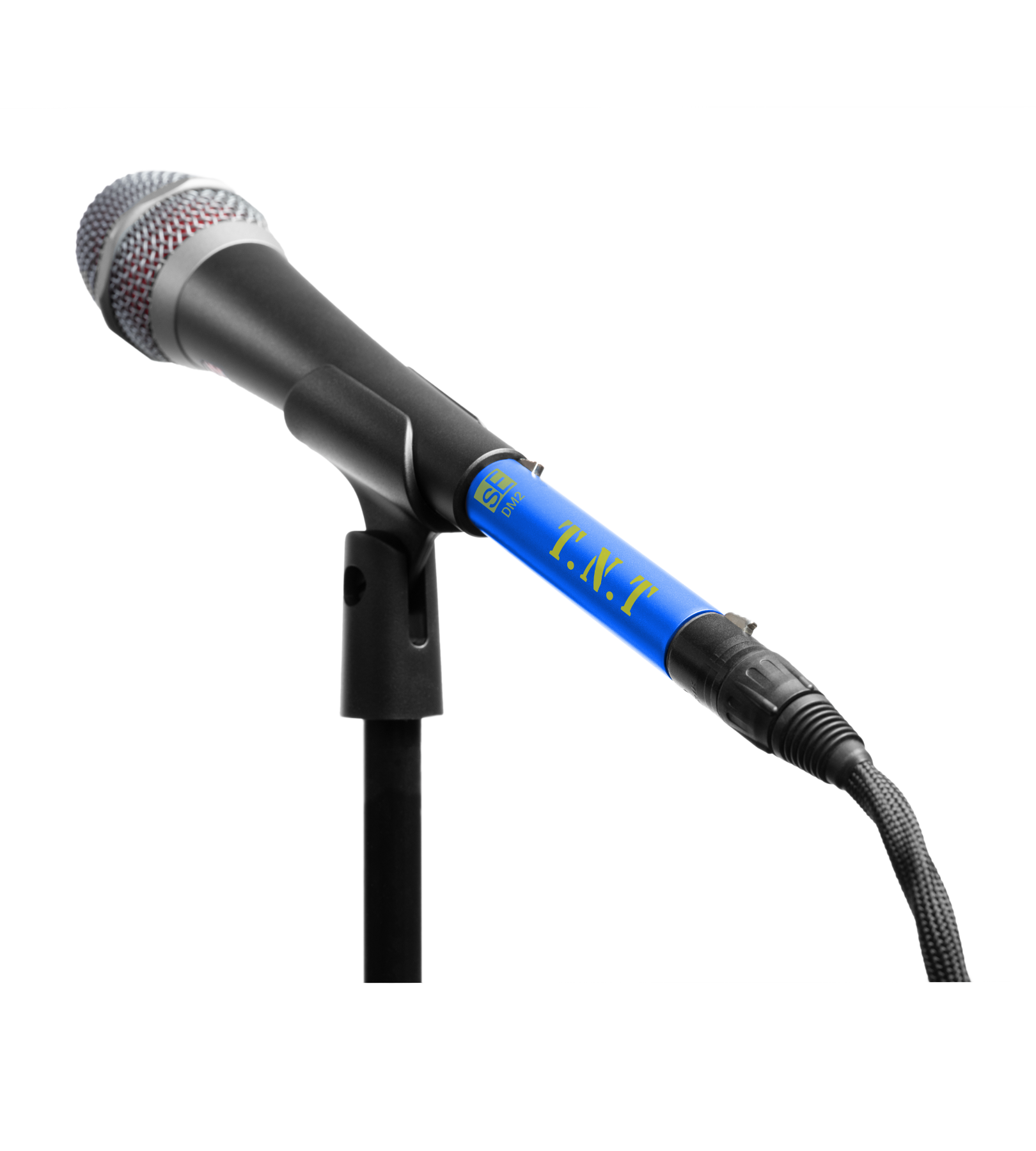

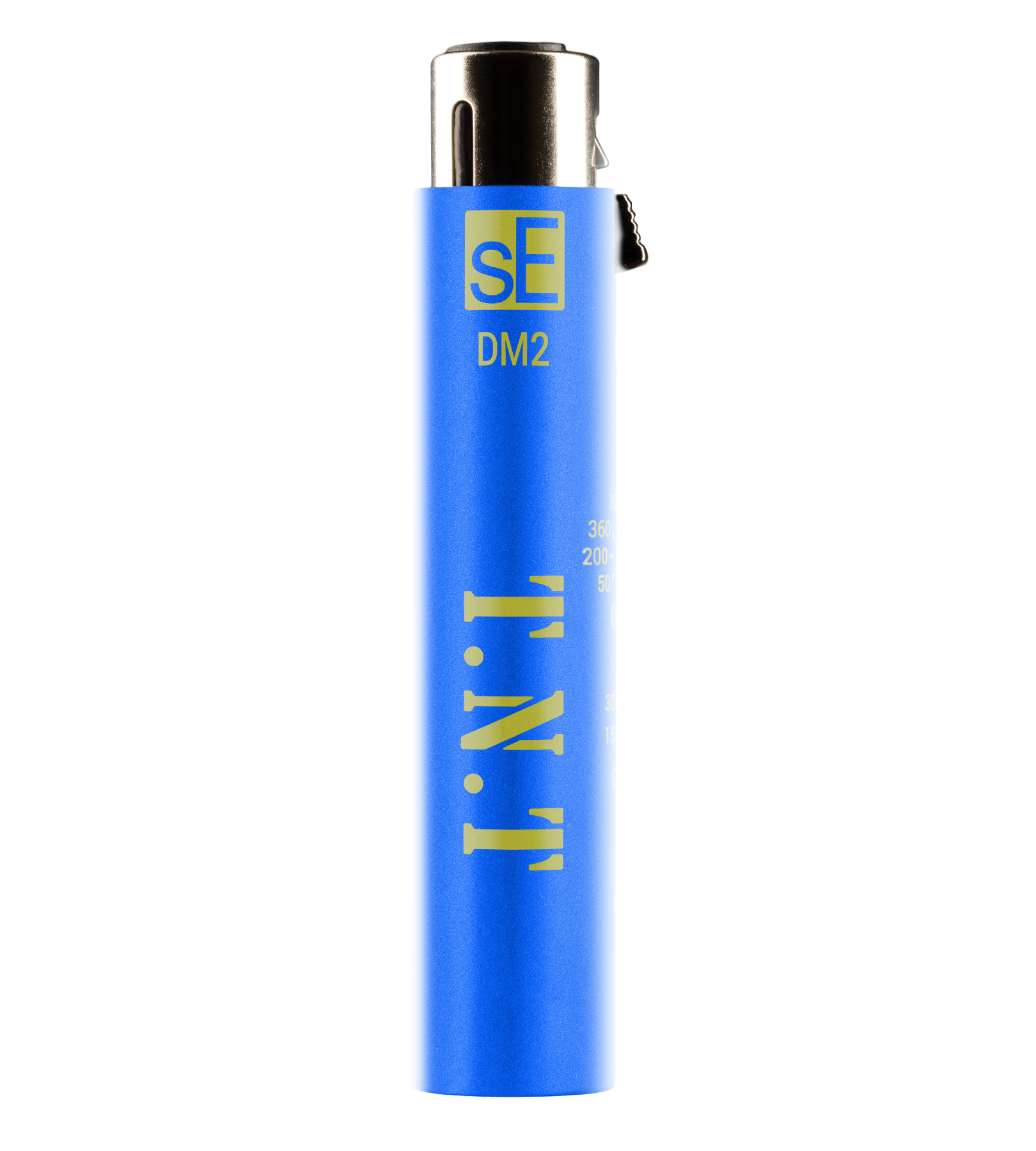

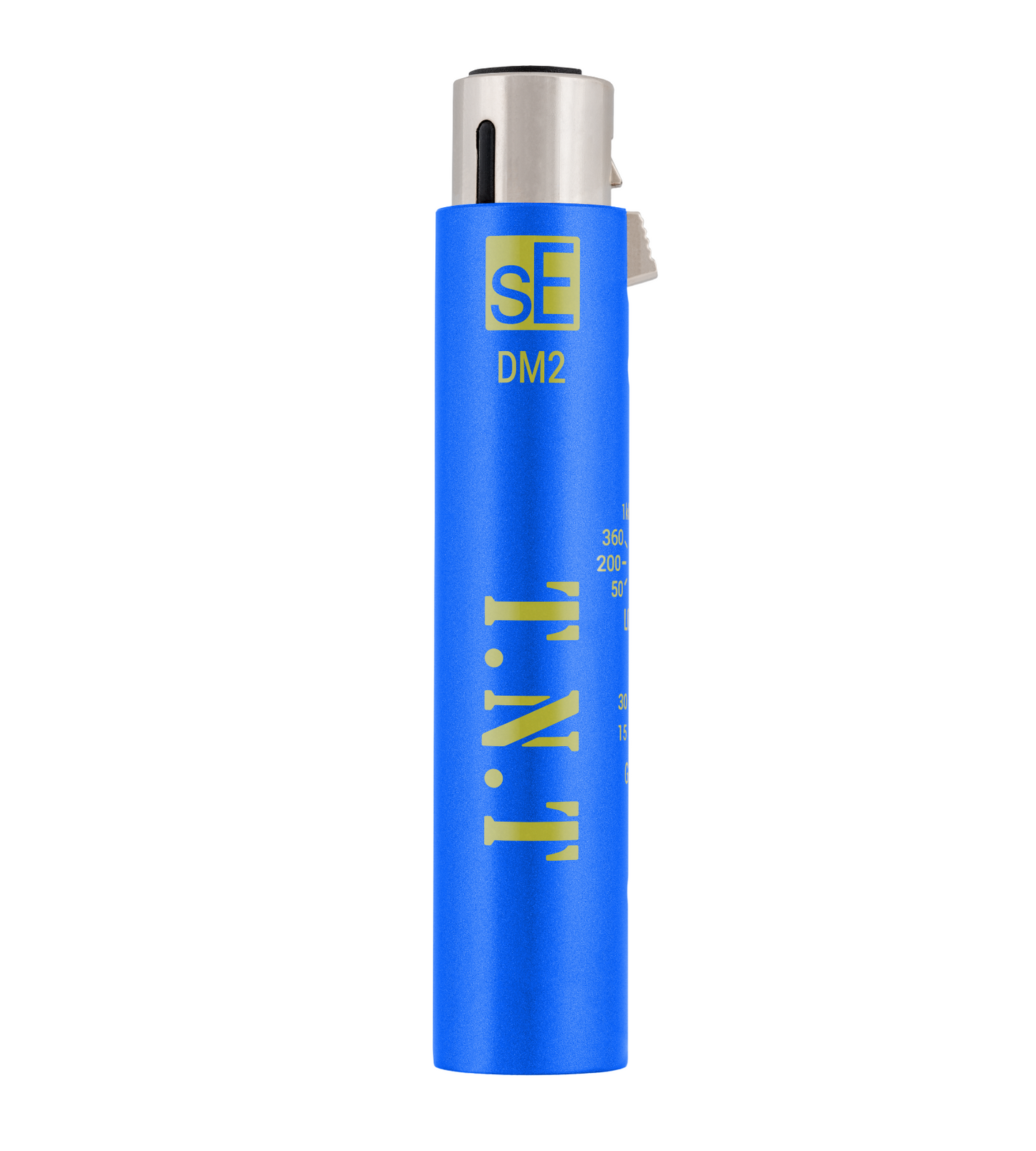

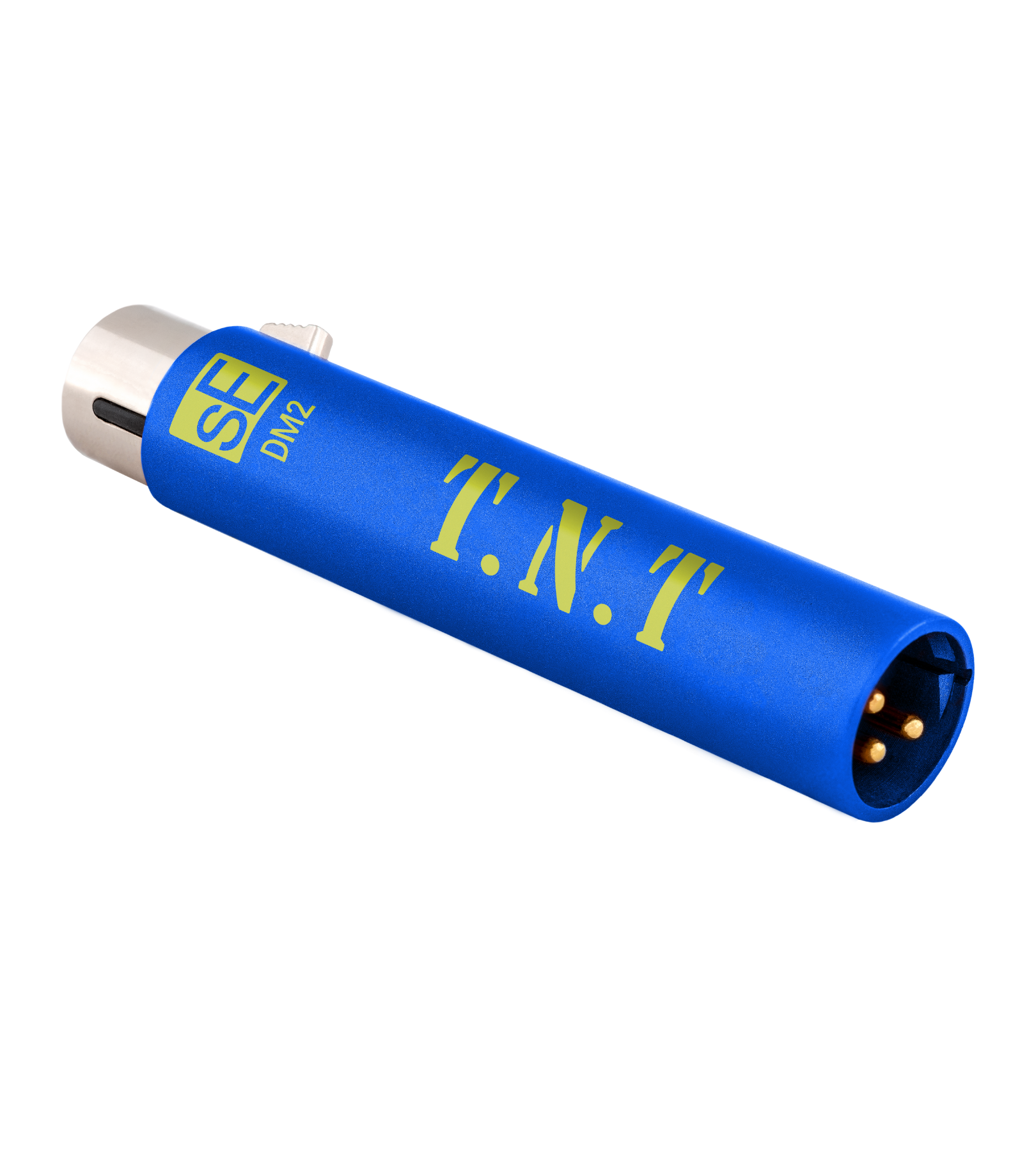

The blue DM2 TNT Active In-Line Microphone Preamplifier from sE Electronics is intended to be inserted between a passive ribbon or dynamic microphone and a microphone preamplifier (sold separately) to provide gain for the microphone signal. A switch allows you to select between 15 and 30 dB of gain to boost the audio signal, improving the level to your preamp, mixer, or audio interface without adding noise or coloring the sound.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

Key Features of sE Electronics DM2 TNT

  • Dual Gain Settings
    +15 dB or +30 dB clean gain to suit a wide variety of microphones and applications.
  • Switchable Load Impedance
    From 50 Ω to 10 MΩ, allowing tailored mic performance.
  • Class-A Electronics
    Delivers transparent, noise-free audio with ultra-low distortion.
  • Phantom Powered
    Requires 48V phantom power without passing it to the mic itself.
  • Compact, Durable Housing
    Rugged all-metal body ideal for stage or studio.
  • Gold-Plated XLR Connectors
    Ensures high-quality signal transmission with maximum reliability.

Device Type: Active inline microphone preamp
Gain Levels: Switchable +15 dB / +30 dB
Input Impedance: Variable – 8 selectable settings (50 Ω to 10 MΩ)
Output Impedance: ~135 Ω
Frequency Response: 10 Hz – 120 kHz (±0.3 dB)
Max Output Level: +9.5 dBV (0.5% THD)
Self-Noise: ~1 µV at +15 dB gain ~6.6 µV at +30 dB gain
Power Requirement: 48 V phantom power (does not pass phantom to mic)
Current Consumption: ~3.1 mA
Connectors: Gold-plated XLR (female input, male output)
Circuit Type: Class-A FET, transformerless
Housing: All-metal, cylindrical body

Dimensions

  • Weight: 0.08 kg
  • Size (L × W × H): 9.5 × 2 × 2 cm

What's in the Box

  • sE Electronics DM2 TNT Inline Mic Preamp
  • User Manual
  • sE Logo Sticker

Hero Banner

Explosive Gain & Custom Tone Control

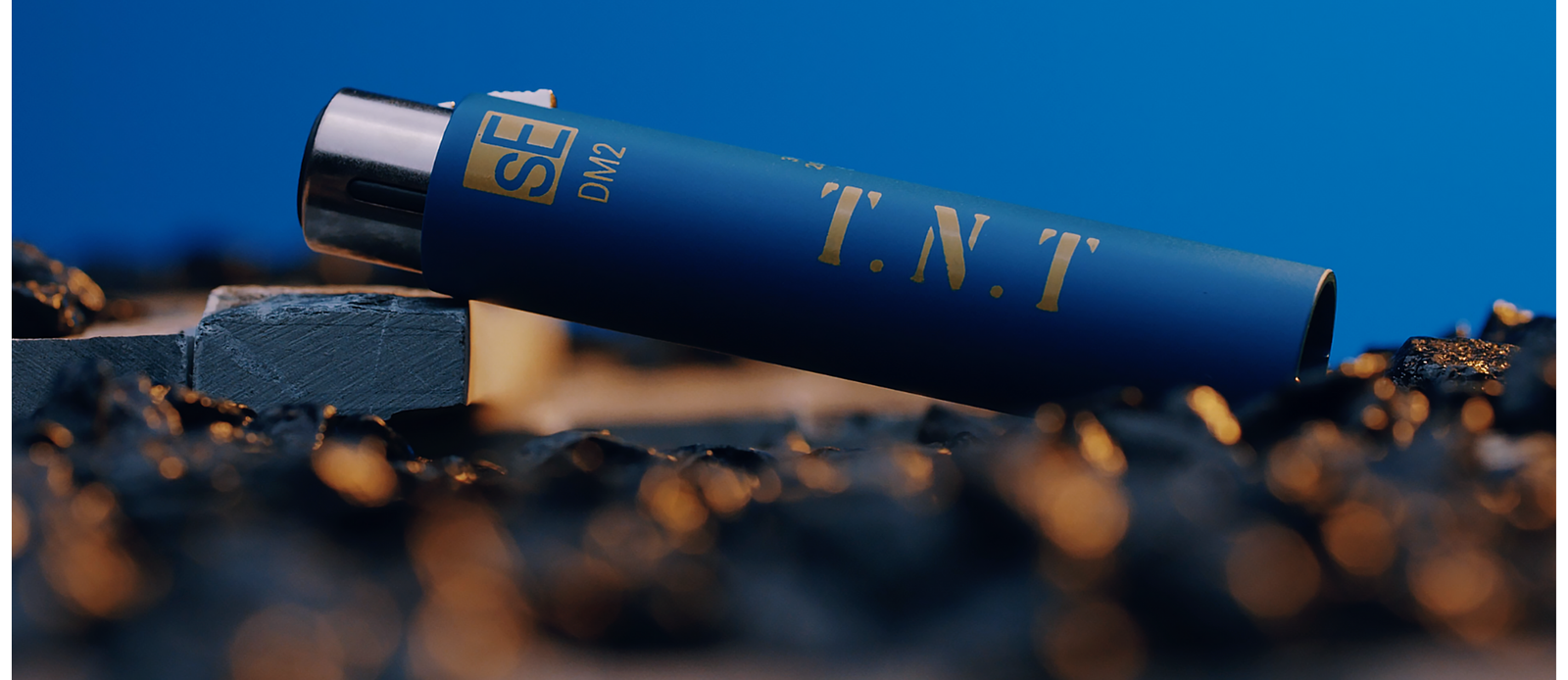

The DM2 TNT introduces a bold twist on sE’s inline preamp concept—offering two clean gain options (+15 dB or +30 dB) that bring ribbon or low‑output dynamic microphones firmly into usable range, even with modest audio interfaces or mixers. Beneath the cobalt-blue exterior—styled like a TNT stick—is precision circuitry derived from sE’s Dynamite technology. It draws around 3.1 mA phantom power, yet delivers remarkably low noise: approximately 1 µV at +15 dB, rising to 6.6 µV at +30 dB.

Custom Image 1
Custom Image 2

Impedance Tuning for Tonal Matching

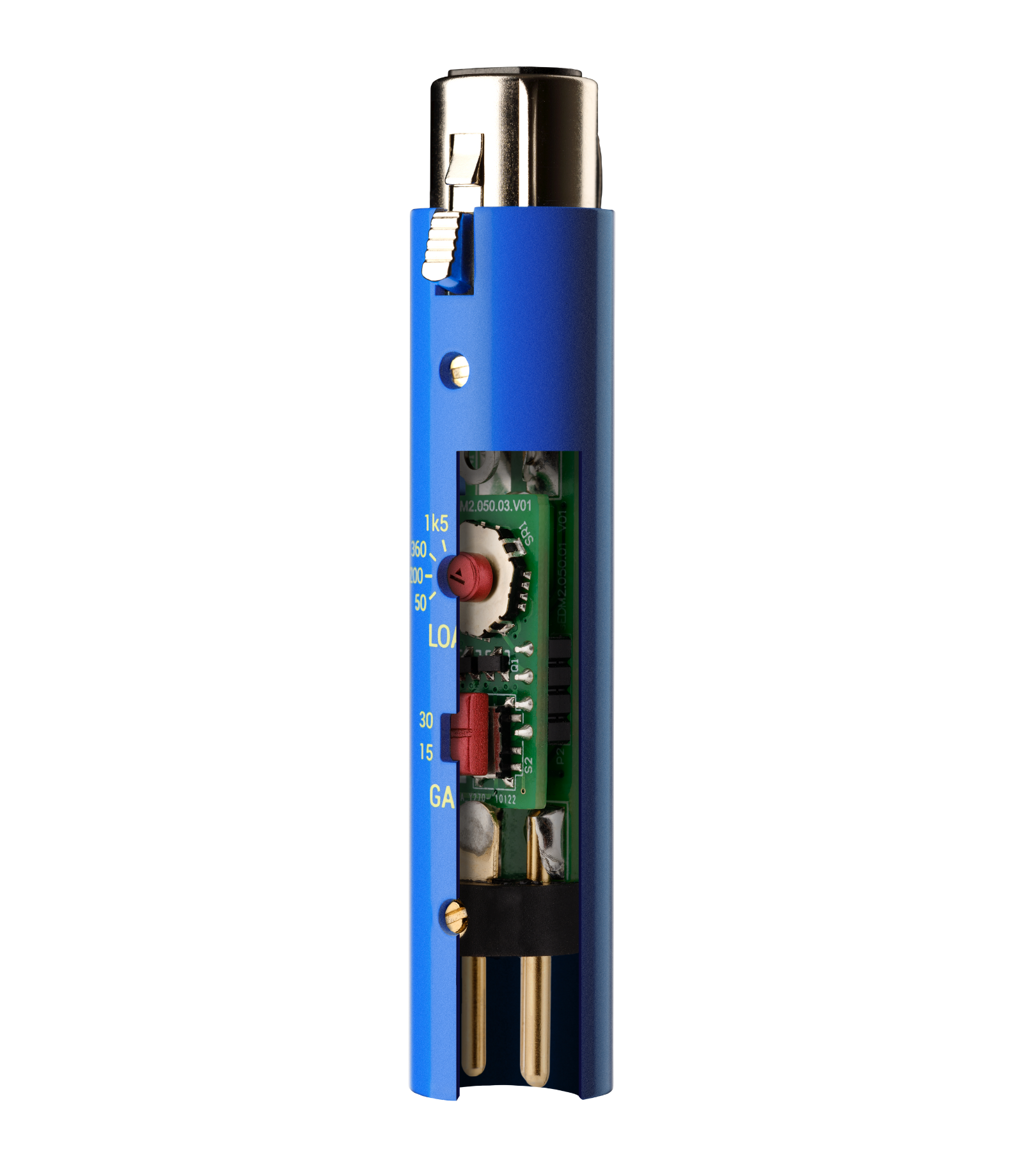

What truly sets the DM2 apart is its eight selectable input impedance settings, ranging from ultra-low (50 Ω) to ultra-high (10 MΩ). This load control can subtly—or dramatically—alter mic response: lower impedances soften transients, while higher load settings enhance clarity, brilliance, or warmth depending on the microphone. This allows real-time tone-shaping without the need for EQ, making it an ideal tool for dialing in the perfect vocal or instrument sound.

Miniature Powerhouse Built for Reliability

Encased in a compact 19 mm × 96 mm metal cylinder (weighing just ~80 g), the DM2 plugs directly into your mic and other preamp without extra wiring—reducing noise pickup and enhancing portability. Its gold-plated XLR connectors and transformerless Class‑A FET design deliver pristine sound clarity while shielding against RF and hum across long cable runs. Many users appreciate its rugged build, straightforward controls, and the included mini screwdriver to securely set gain and impedance options on the fly.

Custom Image 3
