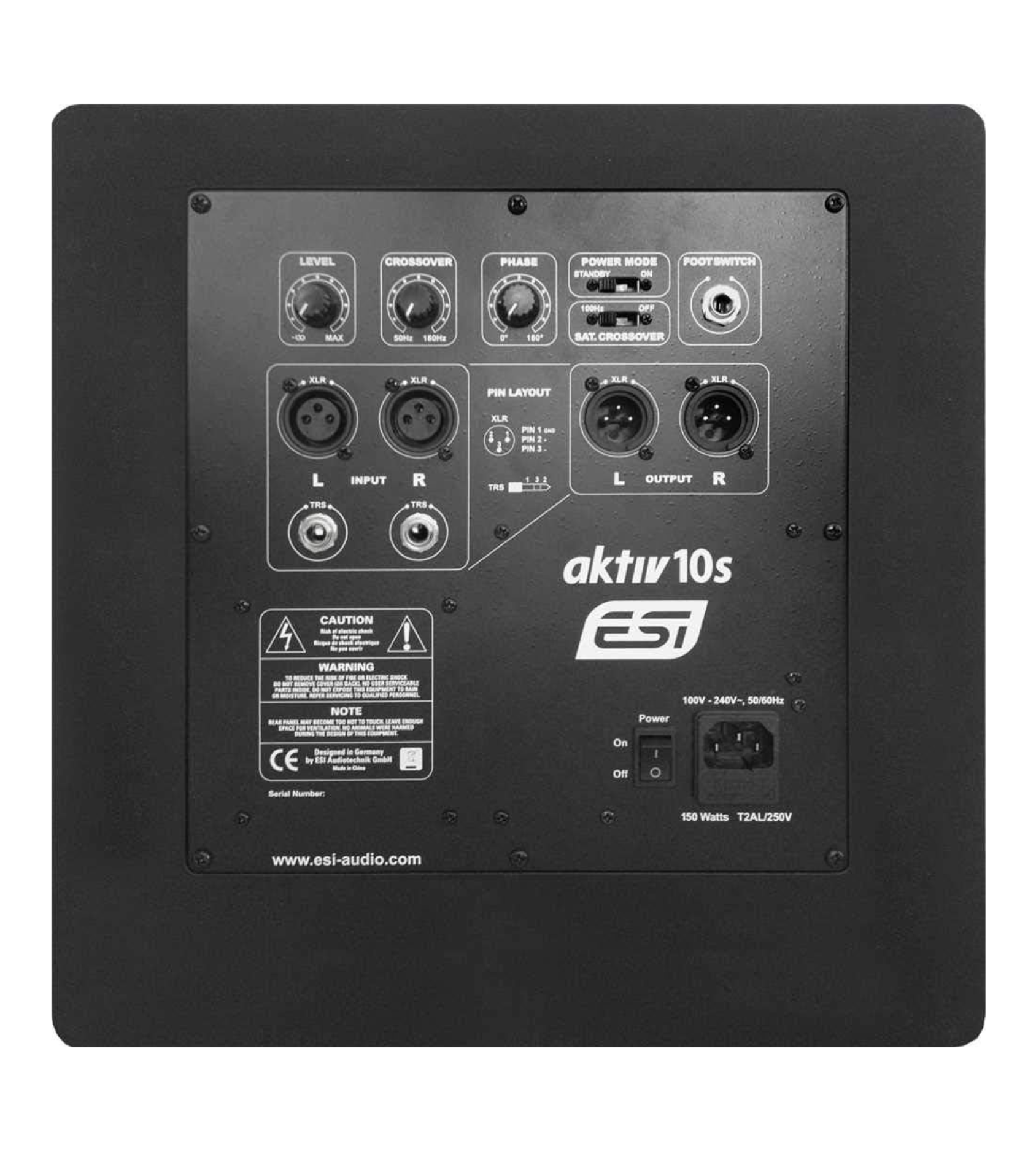

- 10″ bass-reflex active subwoofer with shielded enclosure
- 150 W amplifier at 100 Hz (4 Ω, 0.1% THD)
- Variable subwoofer crossover: 50–180 Hz
- Adjustable satellite output crossover: @100 Hz or flat
- Phase switchable: 0° / 180°
- Input level (volume) control
- Power mode selector (On / Standby)
- Dual inputs: Balanced XLR and unbalanced ¼″ TRS
- Balanced XLR outputs for satellite feed
- Footswitch input for mute control
- Speaker: 1 × 10″ (25.4 cm) cone driver
- Frequency Response: 30–200 Hz
- Crossover Options: Subwoofer (50–180 Hz), Satellite (100 Hz or flat)
- Phase Inversion: 0° / 180°
- Inputs: XLR balanced (20 kΩ), TRS balanced/unbalanced (10 kΩ)
- Outputs: Balanced XLR (satellite feed)
- Footswitch input for mute functionality
- AC Power: 100–240 V AC, 50/60 Hz
- Enclosure: Bass-reflex (ported), shielded
340 mm × 340 mm × 340 mm (cube-shaped enclosure)

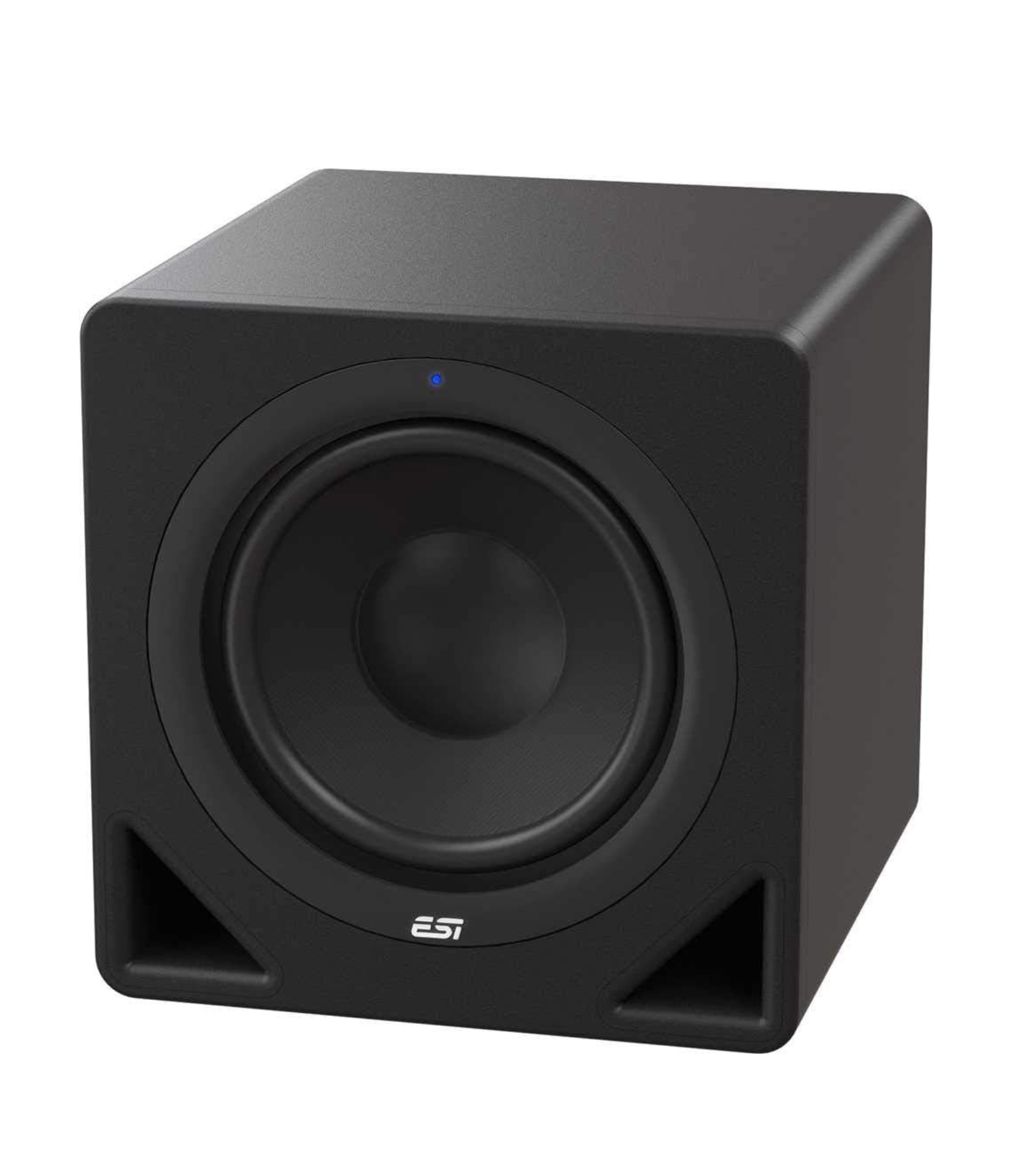

- ESI AKTIV10S powered studio subwoofer
- Power cord
- User manual (includes warranty information)
