sE ELECTRONICS DM1 DYNAMITE

sE ELECTRONICS DM1 DYNAMITE

₱6,900.00 PHP
₱6,900.00 PHP
Sale Sold out

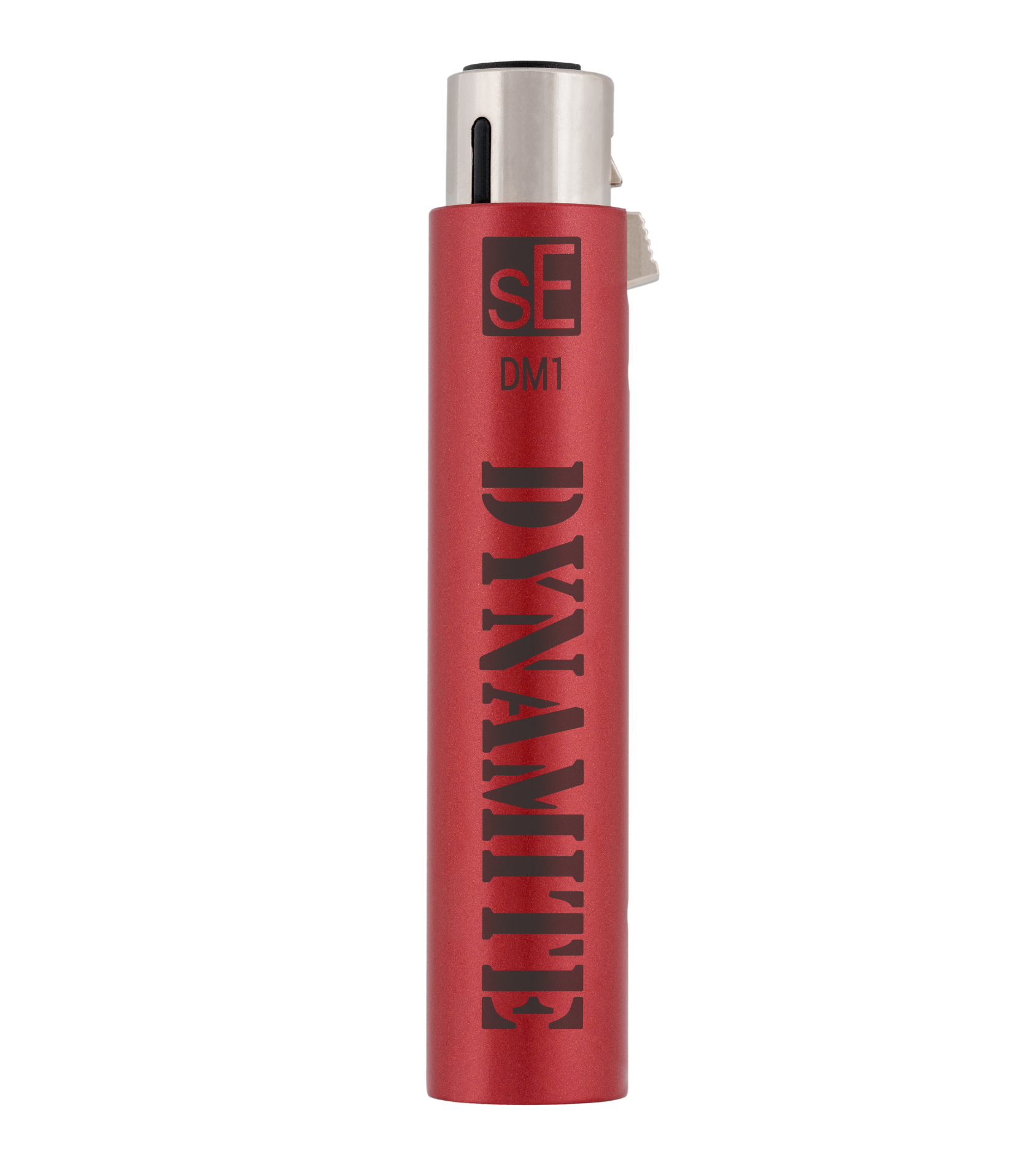

The red DM1 Dynamite Active In-Line Microphone Preamplifier from sE Electronics is an active preamp intended to be inserted between a passive ribbon or dynamic microphone and a microphone preamplifier (sold separately). It can be used to deliver a robust 28 dB of gain to boost the audio signal of a passive mic, which improves the level through the preamplifier without adding noise or coloration.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

Key Features of sE Electronics DM1 Dynamite

  • Fixed +28 dB Clean Gain
    Ideal for low-output ribbon and dynamic microphones.

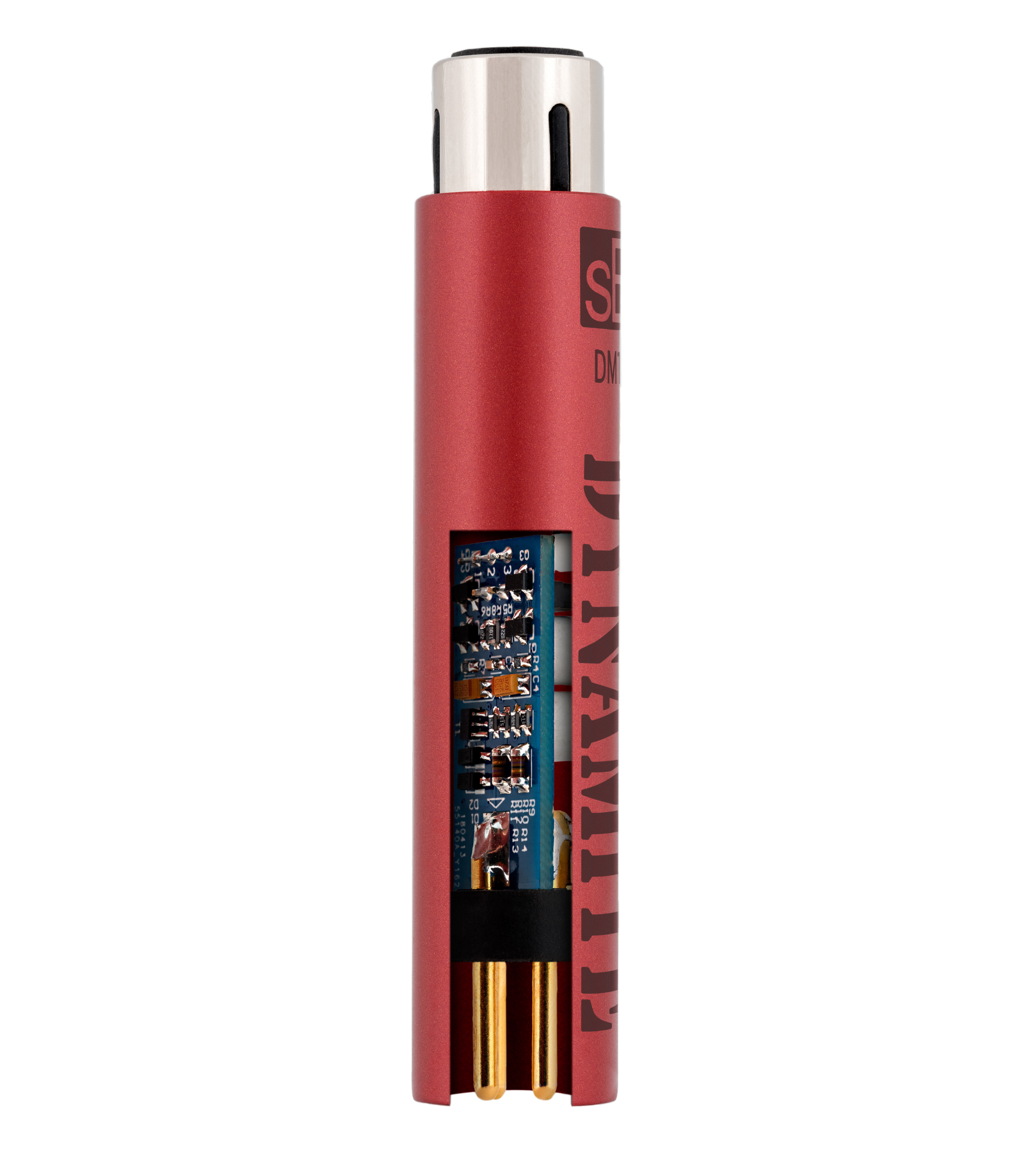

  • Class‑A Transformerless Circuit
    Provides ultra-transparent sound with minimal noise.
  • Constant Gain Across Loads
    Ensures consistent signal regardless of preamp or input impedance.
  • Low Output Impedance (~135 Ω)
    Optimized for long cable runs and interference resistance.
  • Ultra-Clean Operation
    Near-silent performance—great for delicate sources.
  • Compact and Durable Design
    Slim, lightweight metal tube built for portability or permanent setups.

Technical Specifications

  • Gain: +28 dB (fixed)
  • Circuitry: Class‑A Transformerless
  • Output Impedance: ~135 Ω
  • Frequency Response: 10 Hz – 120 kHz (approx.)
  • Noise Floor: Extremely low (~9 µV A‑weighted)
  • Power Requirement: 48 V phantom power only

Dimensions

  • Length: ~95 mm (≈3.75″)
  • Diameter: ~19 mm (≈0.75″)
  • Weight: ~80 g (≈2.8 oz)

What's in the Box

  • sE Electronics DM1 Dynamite Inline Preamp
  • User Manual / Warranty Card
  • sE Logo Sticker

Hero Banner

Consistent +28 dB of Clean Gain

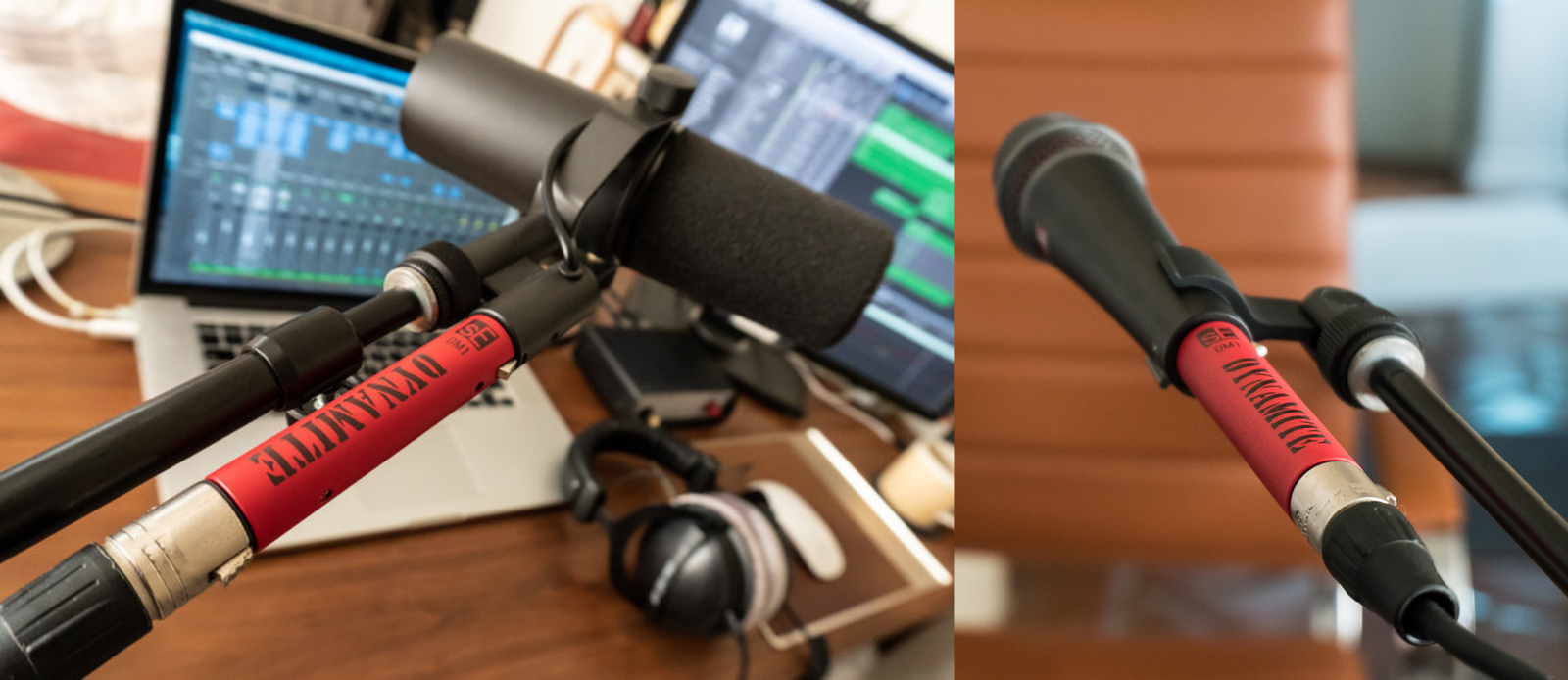

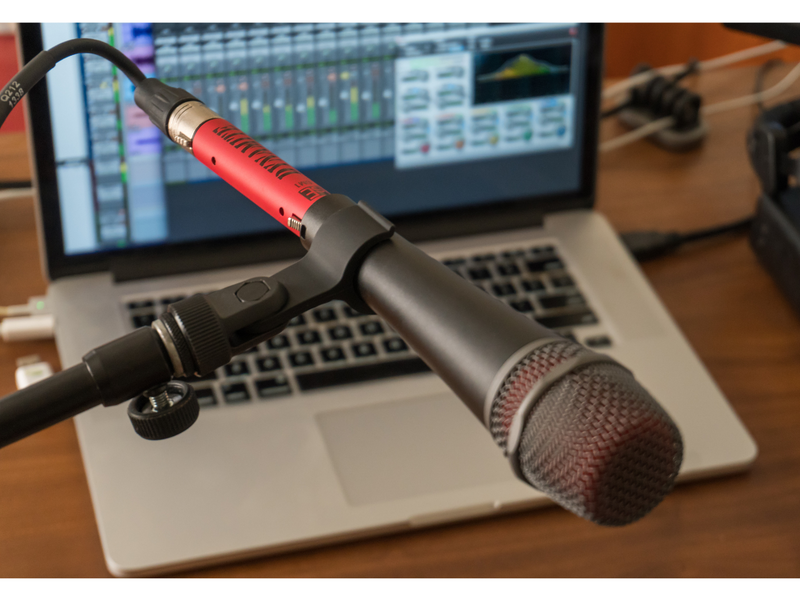

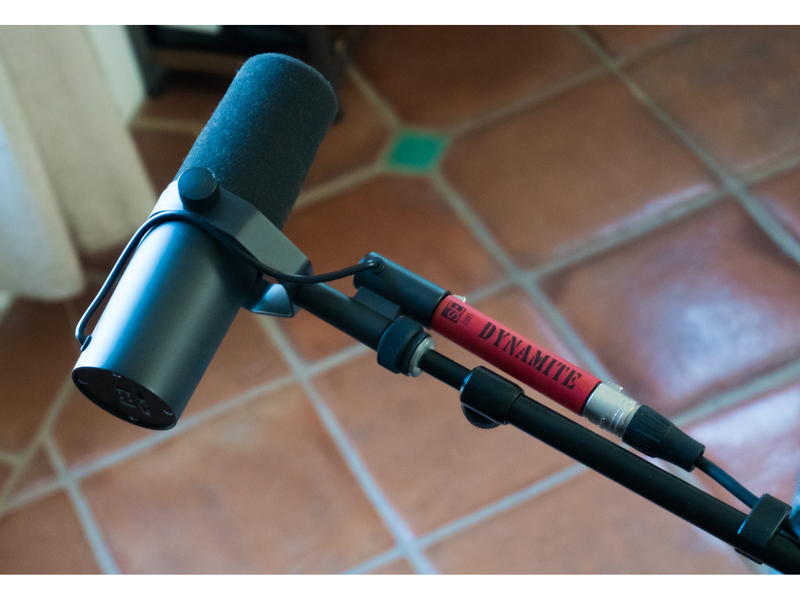

The DM1 Dynamite delivers a fixed +28 dB of Class‑A, low-noise gain designed to enhance low-output dynamic and passive ribbon microphones. Its output remains stable and consistent across varying load conditions, making it ideal for any interface or mixer setup. Whether you’re using a vintage ribbon mic or a modern dynamic like the SM7B, the DM1 ensures that your signal remains strong, clear, and transparent—without introducing coloration or added noise.

Custom Image 1
Custom Image 2

Ultra‑Slim, Rugged, and Interference‑Resistant

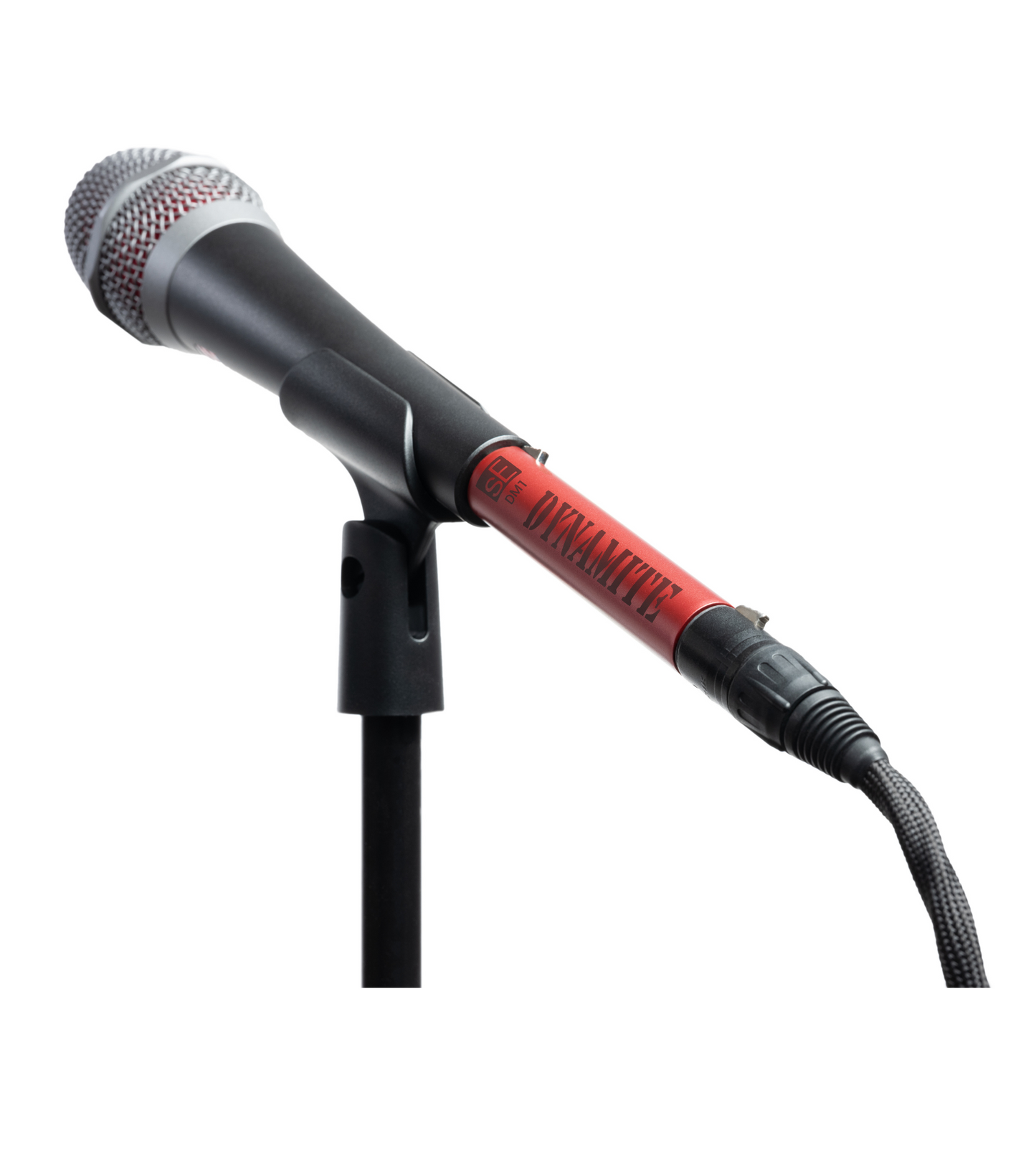

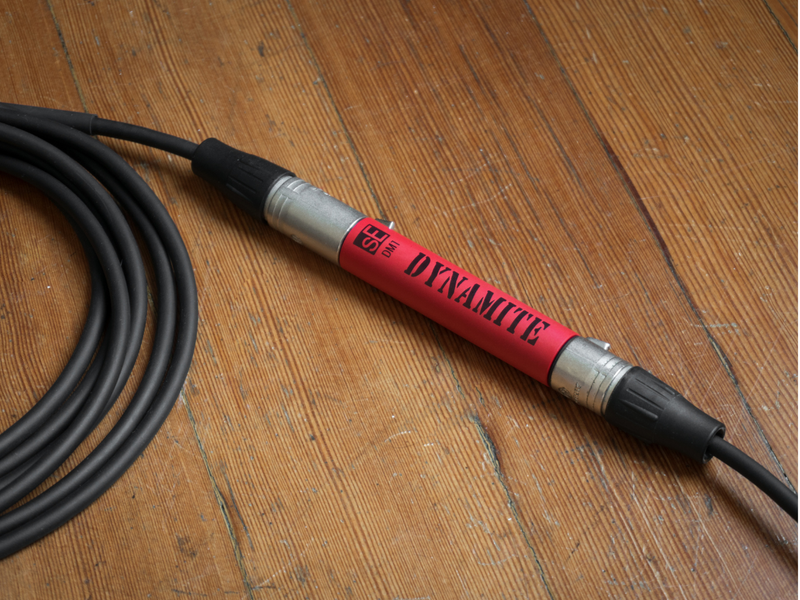

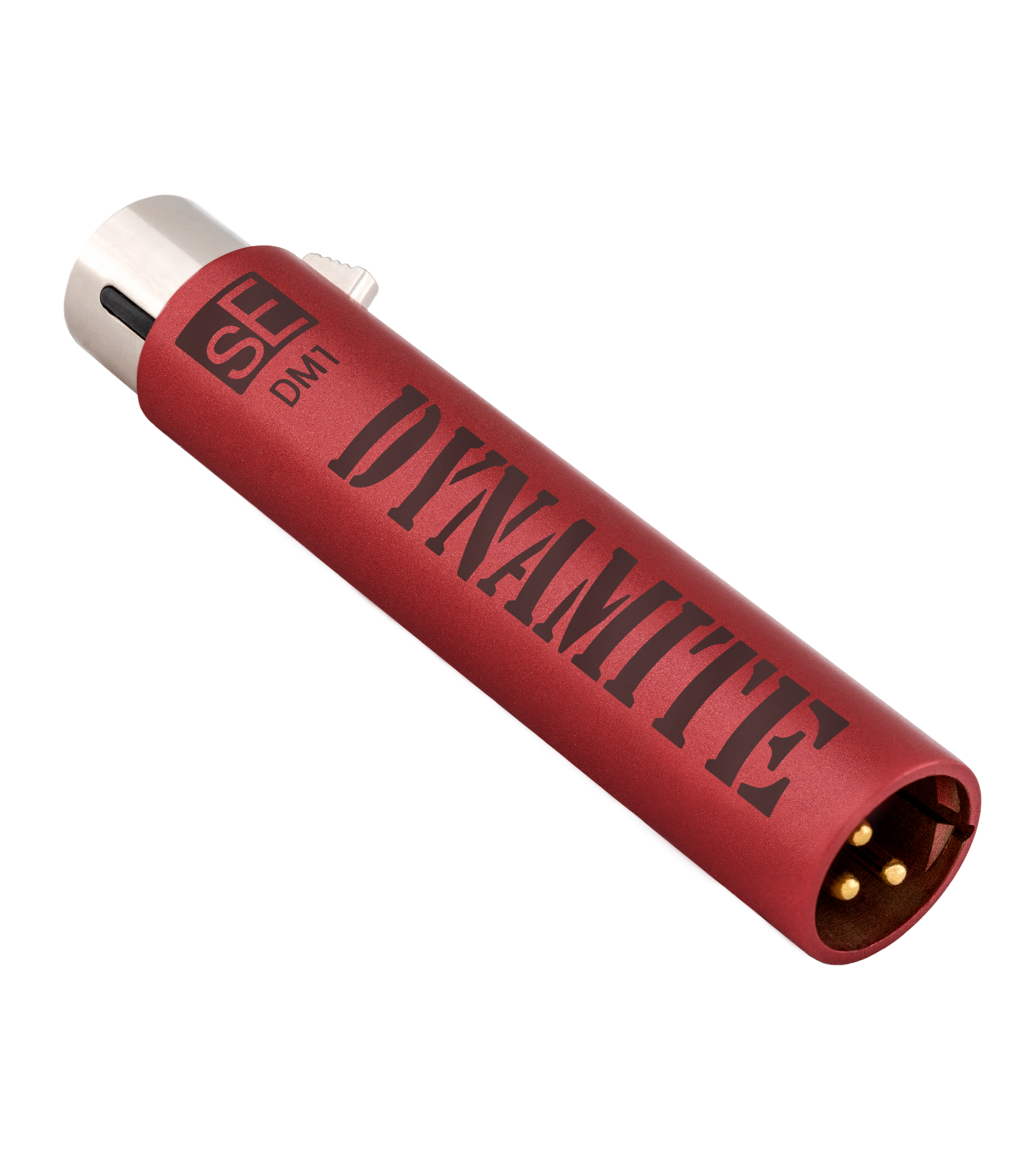

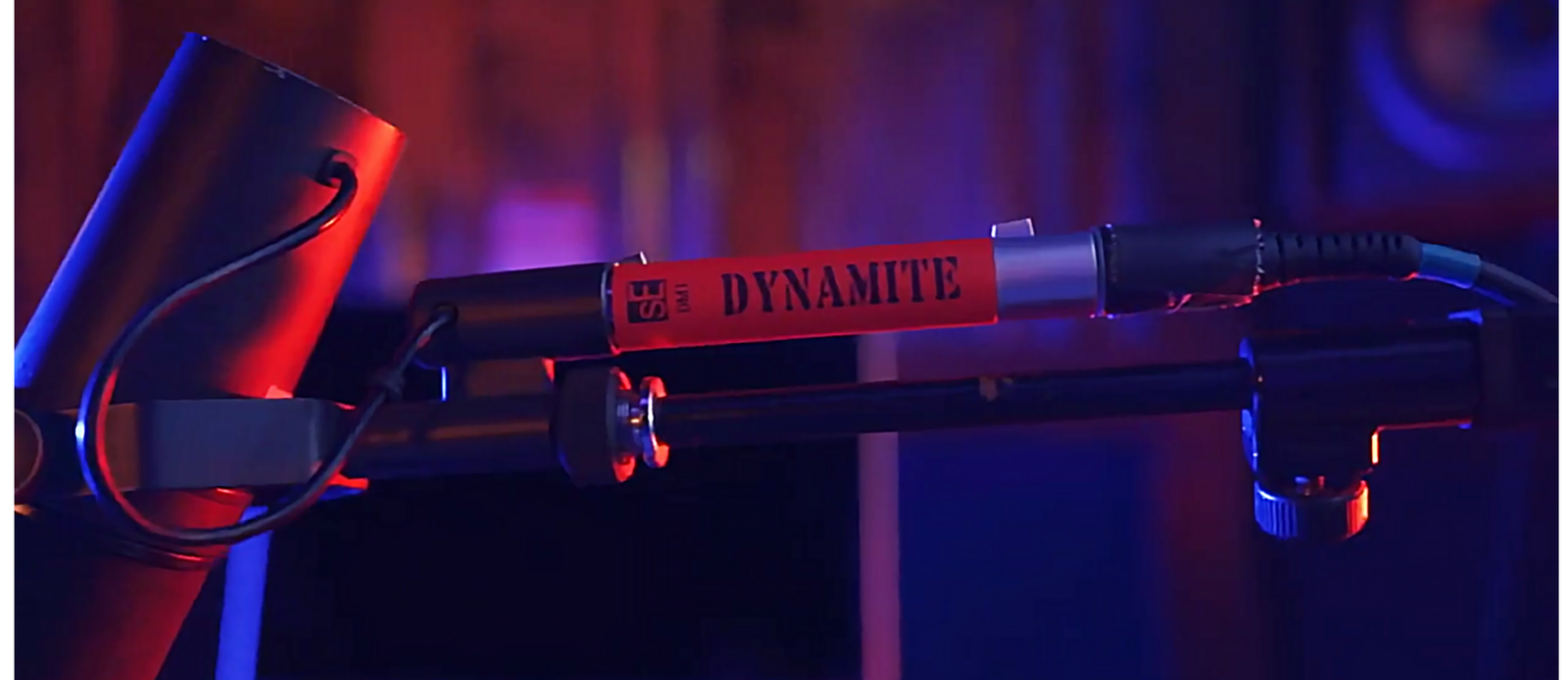

Measuring approximately 19 mm × 96 mm and weighing only 80 g, the DM1 installs directly between your mic and XLR cable—keeping your setup compact and noise-resistant. It runs on standard 48 V phantom power, yet does not pass phantom voltage to your microphone, making it safe for even the most delicate vintage gear. Its all-metal housing, gold-plated XLR connectors, and transformerless design help eliminate RF interference, ground hum, and handling noise, making it equally suited for studio and live use.

Sonic Fidelity with Pro‑Grade Finishing

Engineered with a flat frequency response from 10 Hz to 120 kHz, the DM1 preserves the full detail of your source—delivering natural, uncolored sound. With exceptionally low self-noise and a high output level, it’s perfect for situations where you need clarity and headroom without relying on noisy built-in preamps. Whether you’re recording vocals, podcasting, streaming, or miking acoustic instruments, the DM1 adds reliable gain without compromise.
