- Features
- Specifications
- Dimensions
- Whats in the box
- High-efficiency 1,200 W Class‑D amplifier
- QuickSmartDSP with presets (Music, Live, Club), custom EQ, limiter monitoring, and volume control
- Wireless system control using QuickSmart Mobile app (Bluetooth Low Energy)
- 18″ EVS‑18L low-frequency driver for deep bass
- Adjustable low-pass filter (80 / 100 / 120 / 150 Hz)

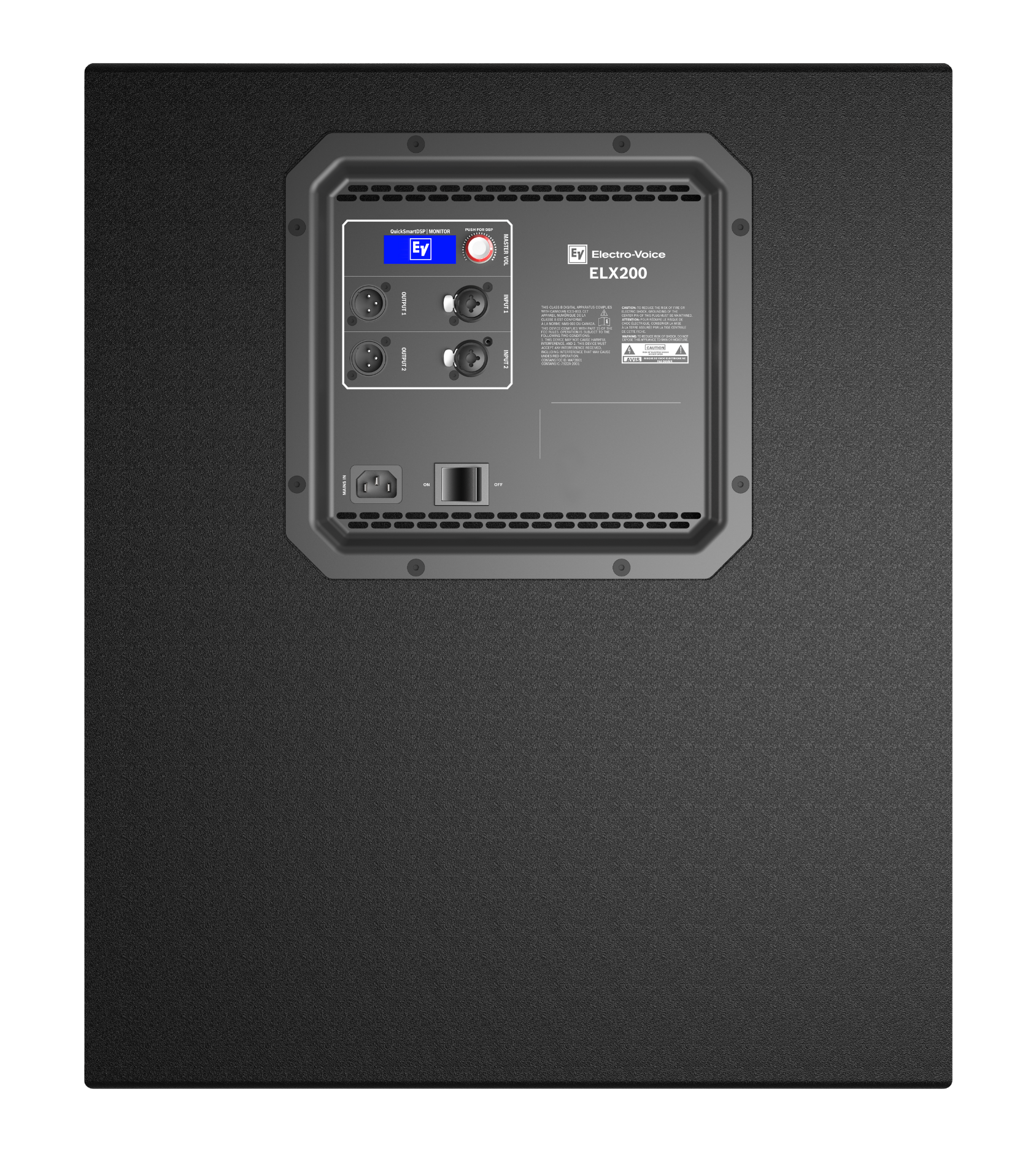

- Two combo XLR / ¼″ inputs and two XLR link outputs
- Sturdy 15 mm plywood cabinet with EVCoat finish
- Integrated M20 pole-mount plate and dual handles for transport and mounting
| Specification | Detail |
|---|---|
| Frequency Response (‑3 dB) | 47 Hz – 105 Hz |
| Frequency Range (‑10 dB) | 40 Hz – 145 Hz |
| Max SPL (1 m) | 132 dB (peak) |
| Power Rating | 1,200 W |
| LF Transducer | EVS‑18L, 457 mm (18 in) |
| Low-Pass Filter Settings | 80 / 100 / 120 / 150 Hz |
| Inputs / Outputs | 2 × XLR/TRS combo in, 2 × XLR link out |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel, powder-coated |
| Control | On-board LCD + Bluetooth via QuickSmart Mobile |
| Dimensions (H × W × D) | 600 mm × 507 mm × 574 mm |
| Net Weight | 29.0 kg |
| Shipping Weight | 33.1 kg |
| Power Consumption | 100–240 V~, 50–60 Hz |
Boxed dimensions: approximately 60 × 50.7 × 57.4 cm
- ELX200‑18SP subwoofer unit
- Power cable
- User manual / quick start guide
