- Features
- Specifications
- Dimensions
- Whats in the box
- 1,000 W Class‑D bi-amped amplifier
- 24 dB/octave crossover with transducer protection
- 15″ EVS‑15K woofer + 1.5″ titanium compression driver
- Selectable 100 Hz high‑pass filter for subwoofer integration
- Two XLR/TRS combo inputs + stereo RCA input
- XLR link output (pre or post mix) for cascading speakers
- 90° × 50° coverage waveguide for even dispersion
- 60° monitor angle built into plywood cabinet
| Specification | Detail |
|---|---|
| Frequency Response (‑3 dB) | 56 Hz – 18 kHz |
| Frequency Range (‑10 dB) | 44 Hz – 20 kHz |
| Max SPL (1 m) | 134 dB |
| Coverage (H × V) | 90° × 50° |
| Power Rating | 1,000 W |
| LF Driver | EVS‑15K, 381 mm (15″) |
| HF Driver | DH‑1K, 39 mm (1.5″) titanium |
| Crossover Frequency | 1.7 kHz |
| Inputs | 2 × XLR/TRS combo, 1 × stereo RCA |
| Output | XLR Link |
| Cabinet Material | 9‑ply, 15 mm plywood, internally braced |
| Grille | 18 GA steel, powder-coated |
| Dimensions (H × W × D) | 708 × 432 × 382 mm |
| Weight | 22.5 kg |
Not officially specified by manufacturer.

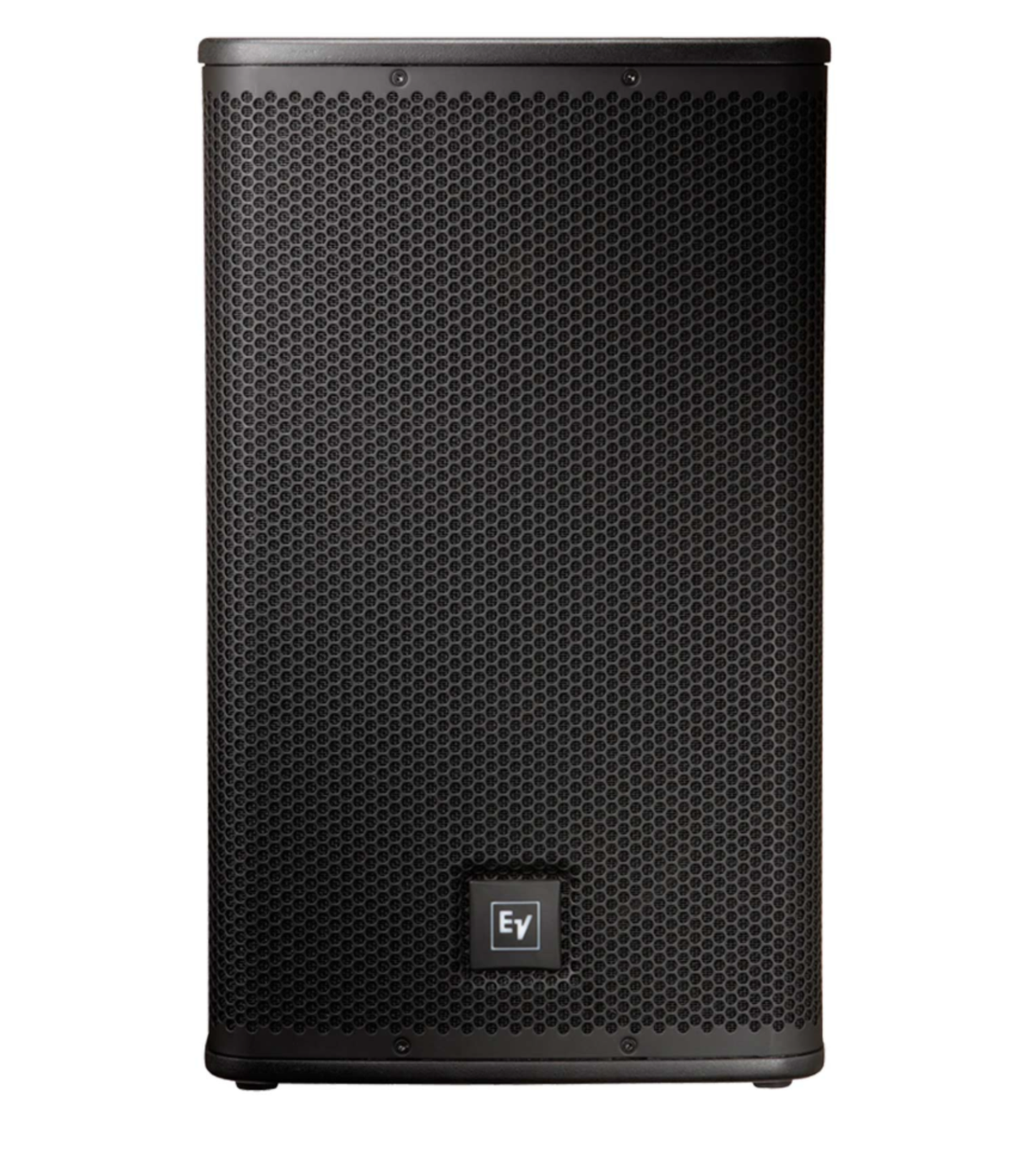

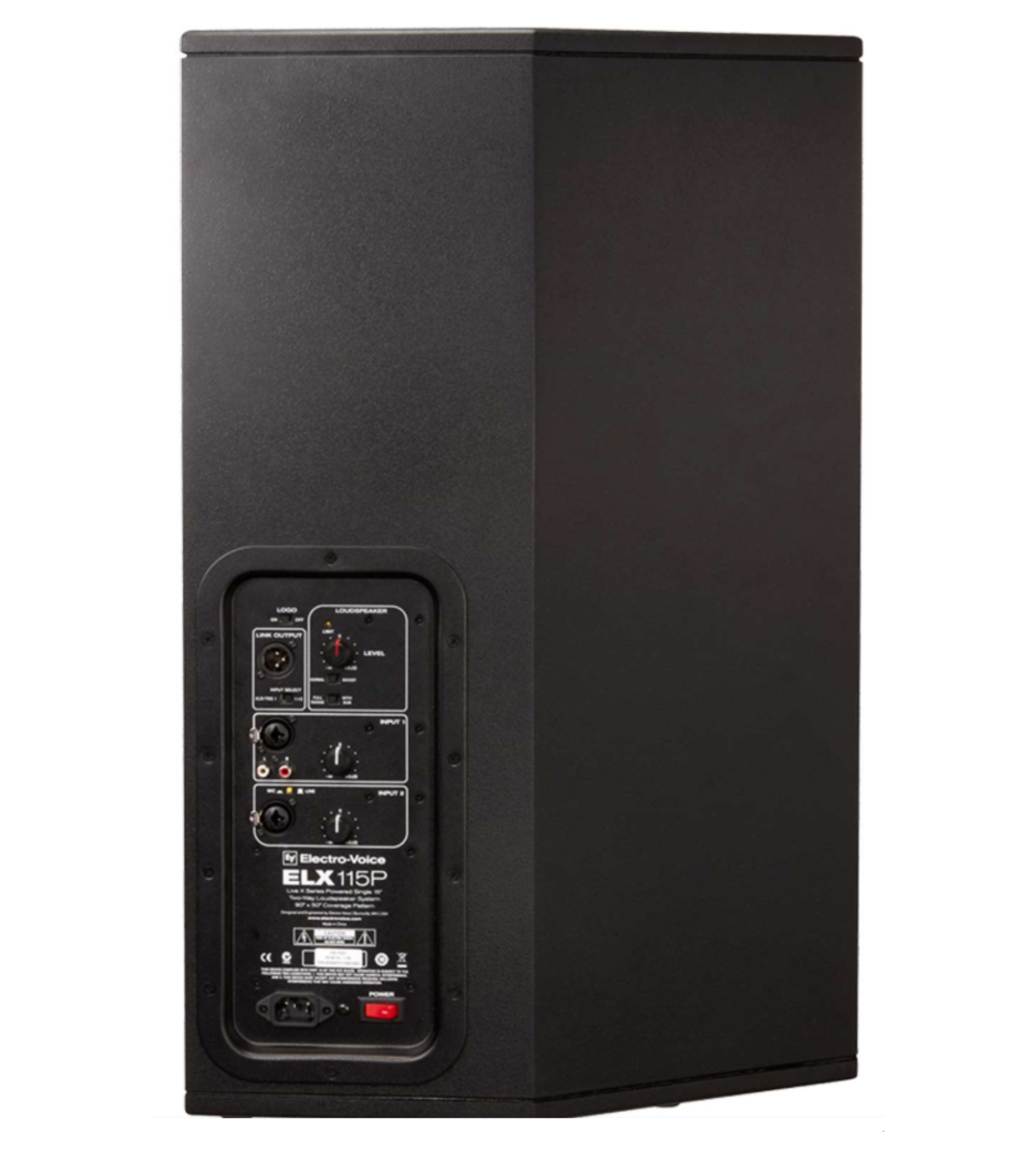

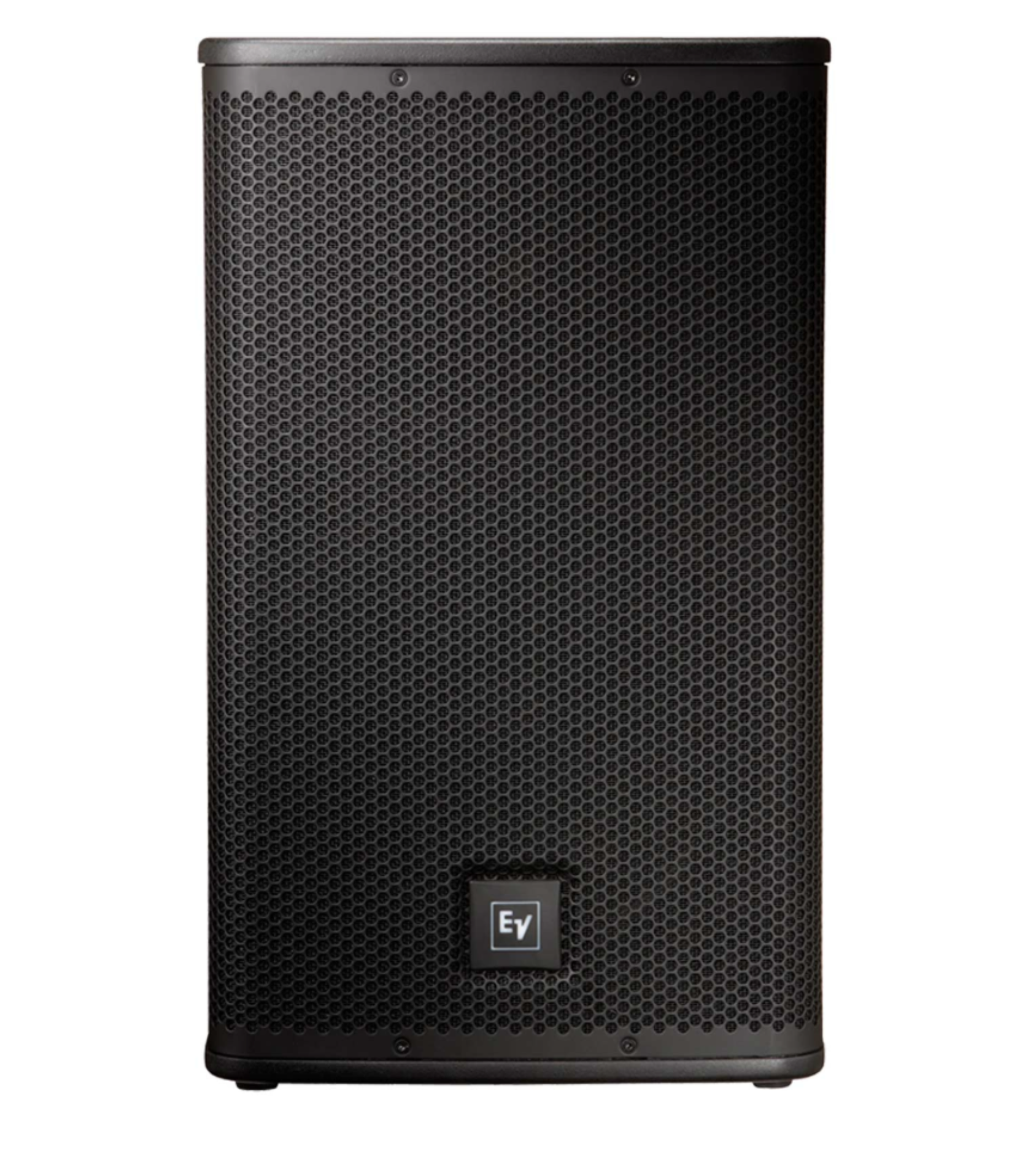

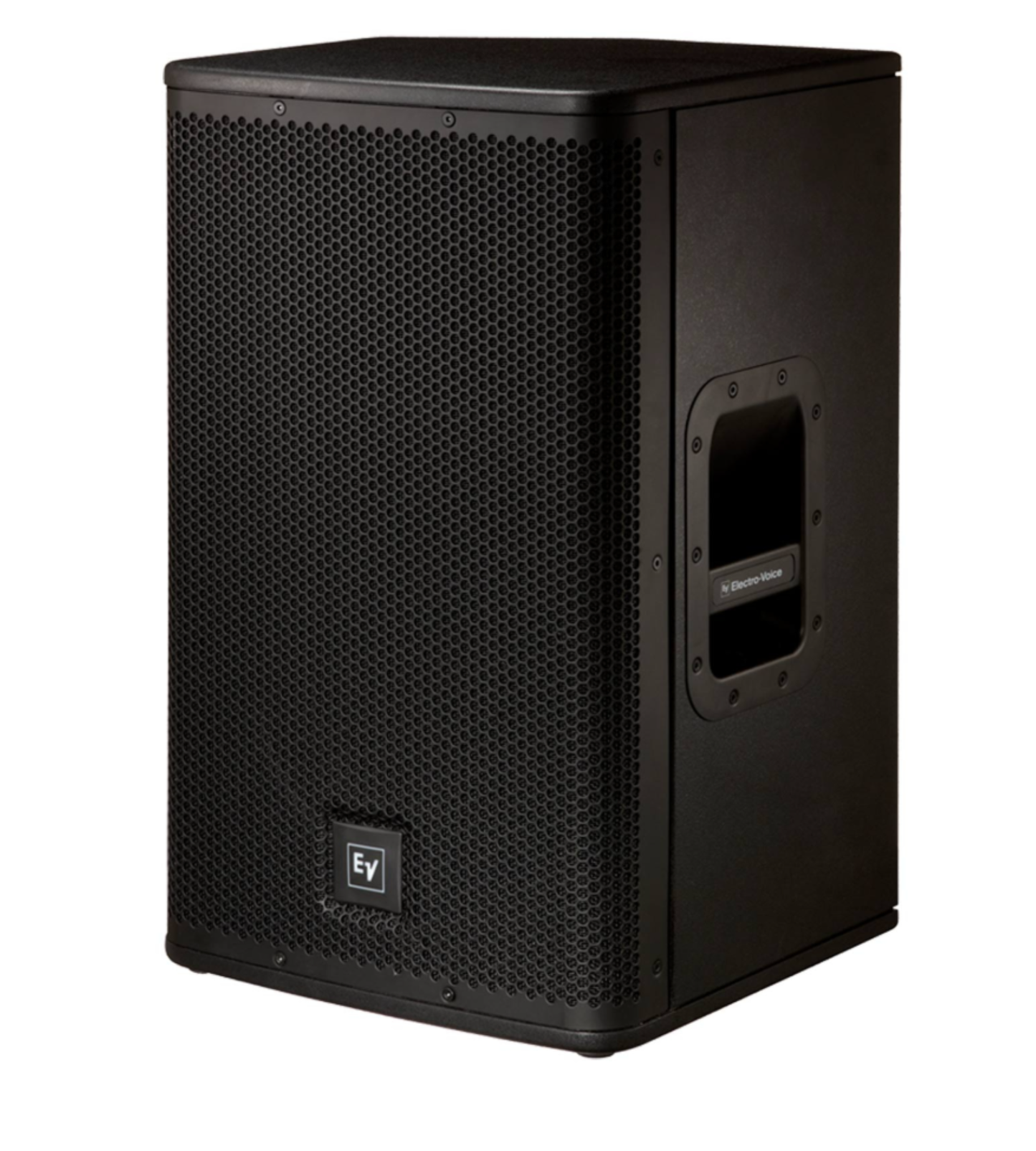

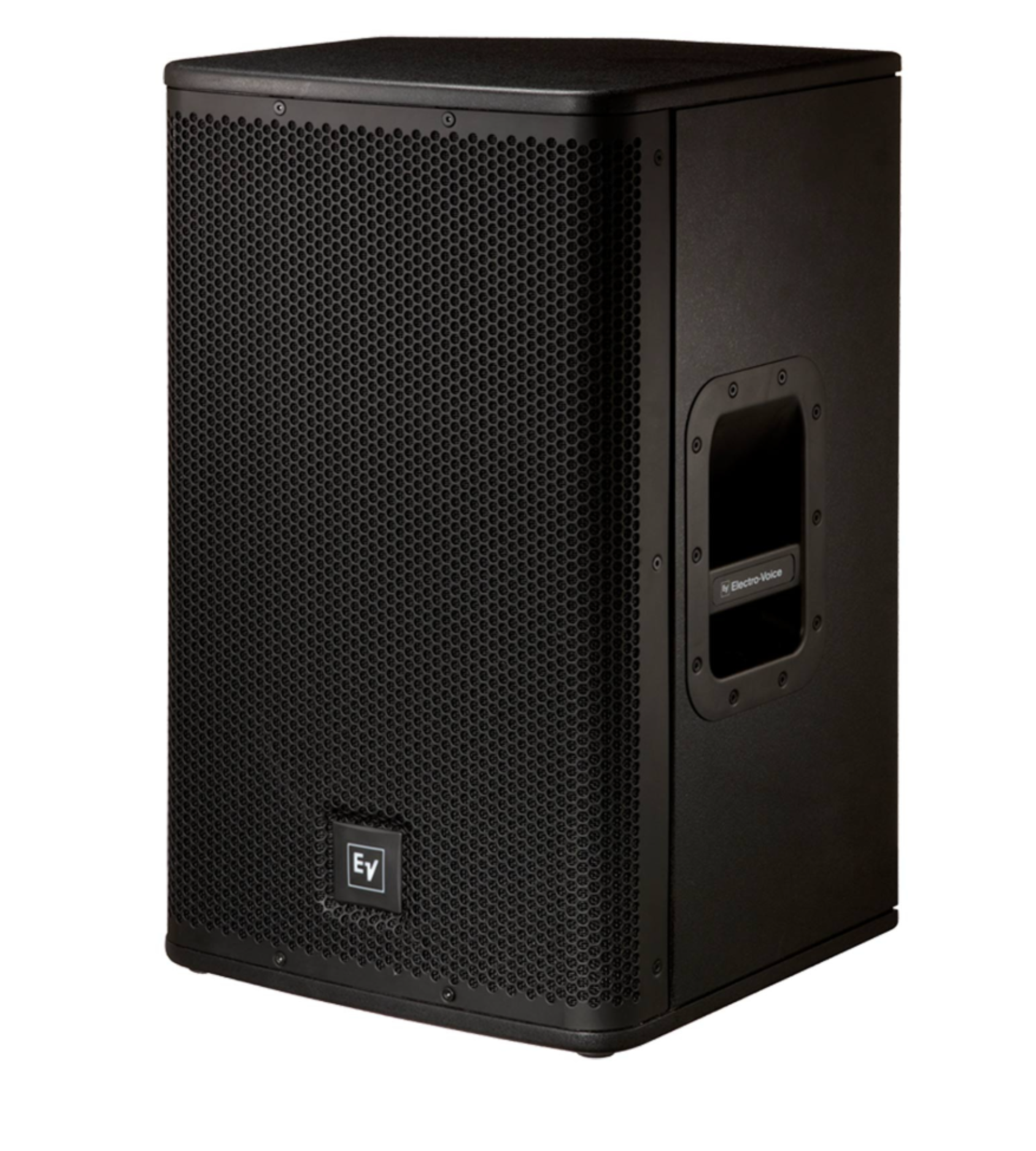

- ELX 115P powered speaker unit
- Power cable
- User manual / safety documentation
