- Features
- Specifications
- Dimensions
- Whats in the box
- 1600 W peak power handling
- Up to 134 dB peak SPL
- Lightweight 15 mm plywood enclosure with internal bracing
- Durable EVCoat finish for protection and aesthetics
- Large slot ports to minimize distortion and extend low-frequency response
- Two metal grille reinforcement bars for grille durability
- M20 threaded pole-mount plate for mounting flexibility
| Specification | Detail |
|---|---|
| Woofer | EVS‑18C, 457 mm (18″) |
| Power Handling (Continuous / Peak) | 400 W / 1600 W |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7 Ω |
| Sensitivity (1 W @ 1 m) | 96 dB SPL |
| Frequency Response (‑3 dB) | 50 Hz – 100 Hz |
| Frequency Range (‑10 dB) | 35 Hz – 300 Hz |
| Recommended High-Pass | 30 Hz |
| Maximum SPL | 134 dB (peak) |

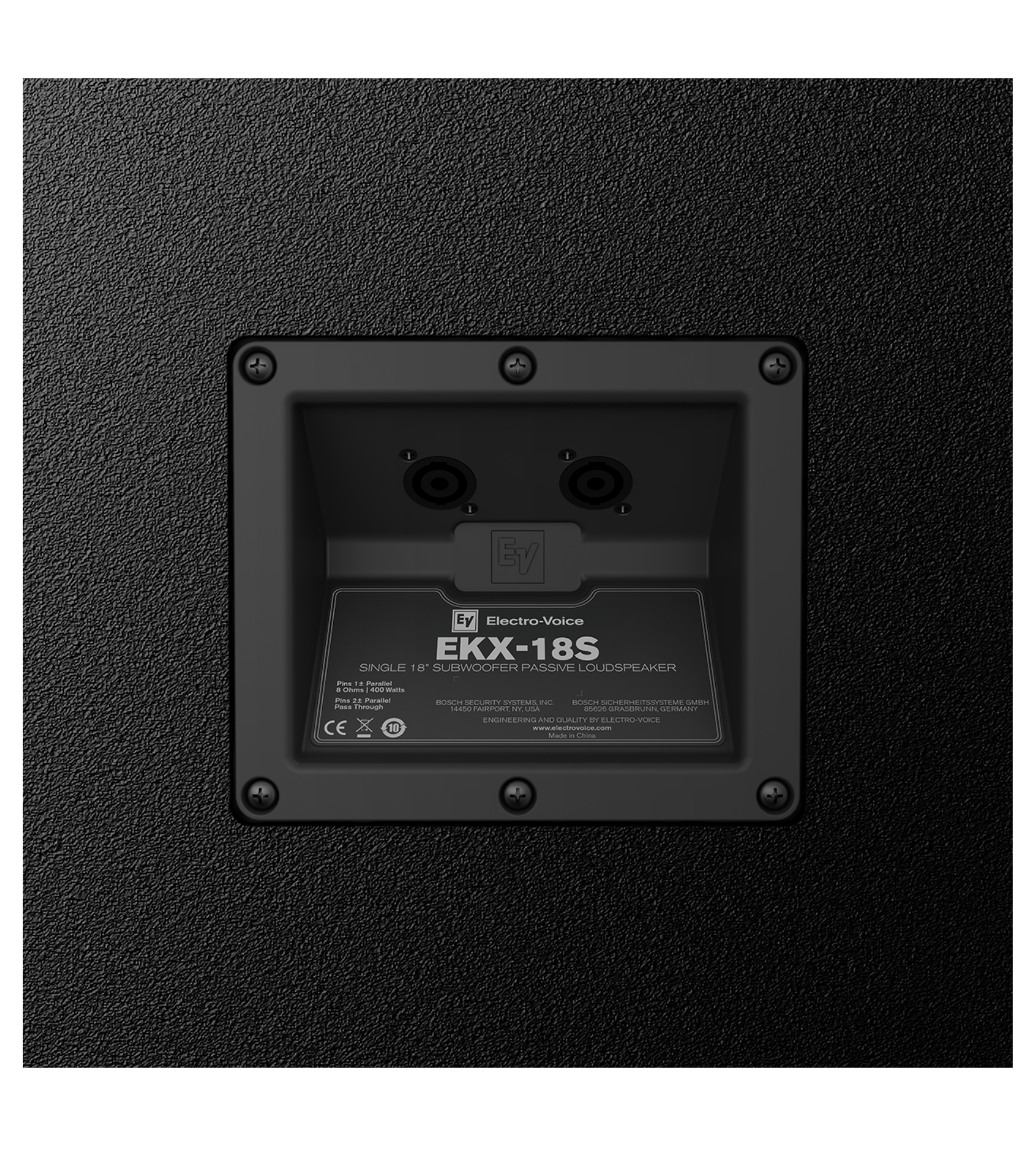

| Connector | Dual NL4 |
| Enclosure | 15 mm plywood, EVCoat finish |
| Grille | 18 AWG steel, powder-coated |
| Dimensions (H × W × D) | 520 × 606 × 612 mm |
| Net Weight | 31.8 kg |
| Shipping Weight | 40.1 kg |
Boxed dimensions: approximately 52.0 × 60.6 × 61.2 cm
- EKX‑18S subwoofer unit
- Dual NL4 connector panel (built‑in)
- User manual
