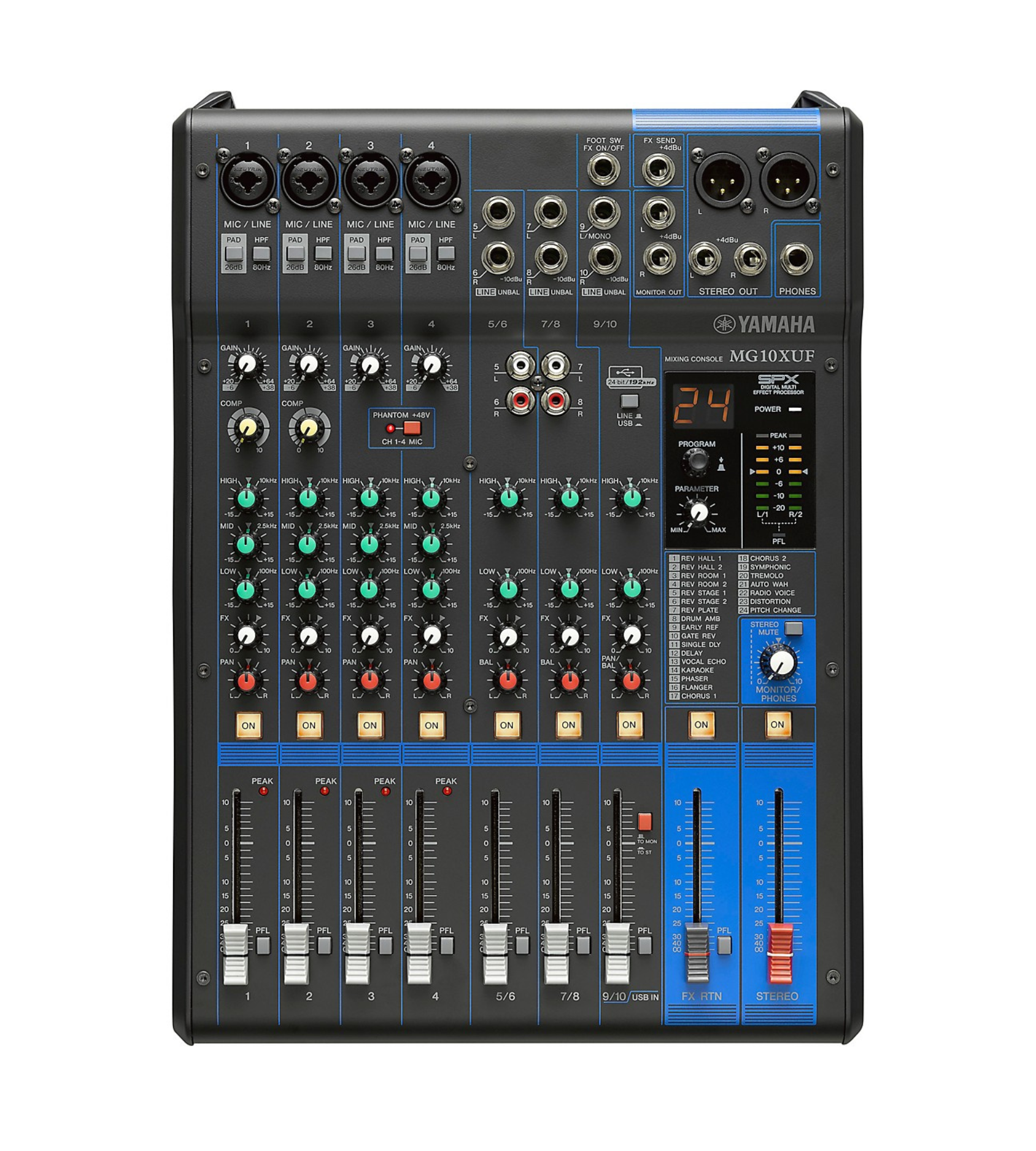

- 10 input channels: 4 mono (mic/line) with +48 V phantom and high-pass filters, plus 3 stereo line channels
- Studio-grade Class-A D-PRE mic preamps with inverted Darlington circuitry for clear, professional sound
- One-knob compressors on mono channels for fast, effective dynamic control
- SPX digital effects: 24 selectable programs with parameter control and foot-switch support
- USB 2.0 audio interface (2-in / 2-out, 24-bit / 192 kHz) for seamless DAW or iPad integration
- Powder-coated steel housing built for durability in demanding environments
- Inputs: 4 mono mic/line with phantom + HPF, 3 stereo line inputs

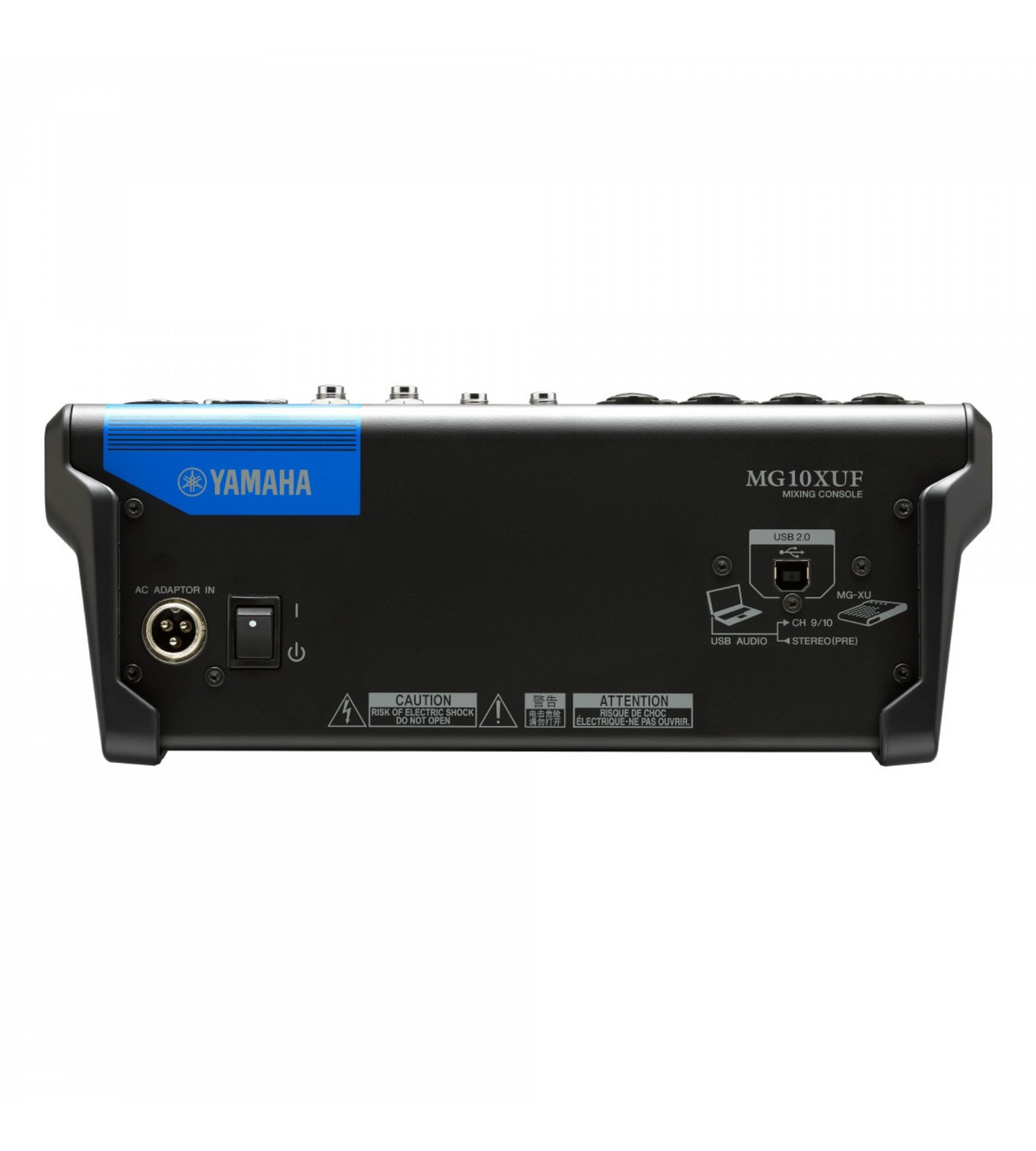

- Outputs: Stereo out, Monitor out, Aux (FX) send, Headphone jack
- USB: Class-compliant USB 2.0 (24-bit / 192 kHz), compatible with PC, iPad (via Camera Connection Kit)
- DSP: 24 SPX effects with parameter adjustment and foot-switch control
- Compressor controls: Threshold +22 dBu to –8 dBu; Ratio up to 4:1; Output level adjustment
- Channel pads: –26 dB (Mono), High-pass filters (Mono mic channels only)
- Width: 275 mm (~10.8")
- Height: 110 mm (~4.3")
- Depth: 390 mm (~15.4")
