- 8 touch-sensitive drum pads plus 2 assignable foot pedals (for hi-hat and bass drum)
- 570 voices plus 30 drum phrases, played through 75 preset kits and 10 custom kits
- 32-note polyphony, LED display, and pads with individually adjustable sensitivity
- AUX In for jamming with external players, headphone output for silent practice, and built-in stereo speakers
- Compact battery or AC power operation for ultimate portability
- Tone engine: AWM Stereo Sampling; max polyphony: 32 notes
- Voices: 570 voices + 30 phrases; Drum kits: 75 presets + 10 custom
- Preset songs: 105; Recording: 4-track recorder, up to 5 songs, ~7,000 notes per song
- Effects: 9 types of reverb, 2-band Master EQ

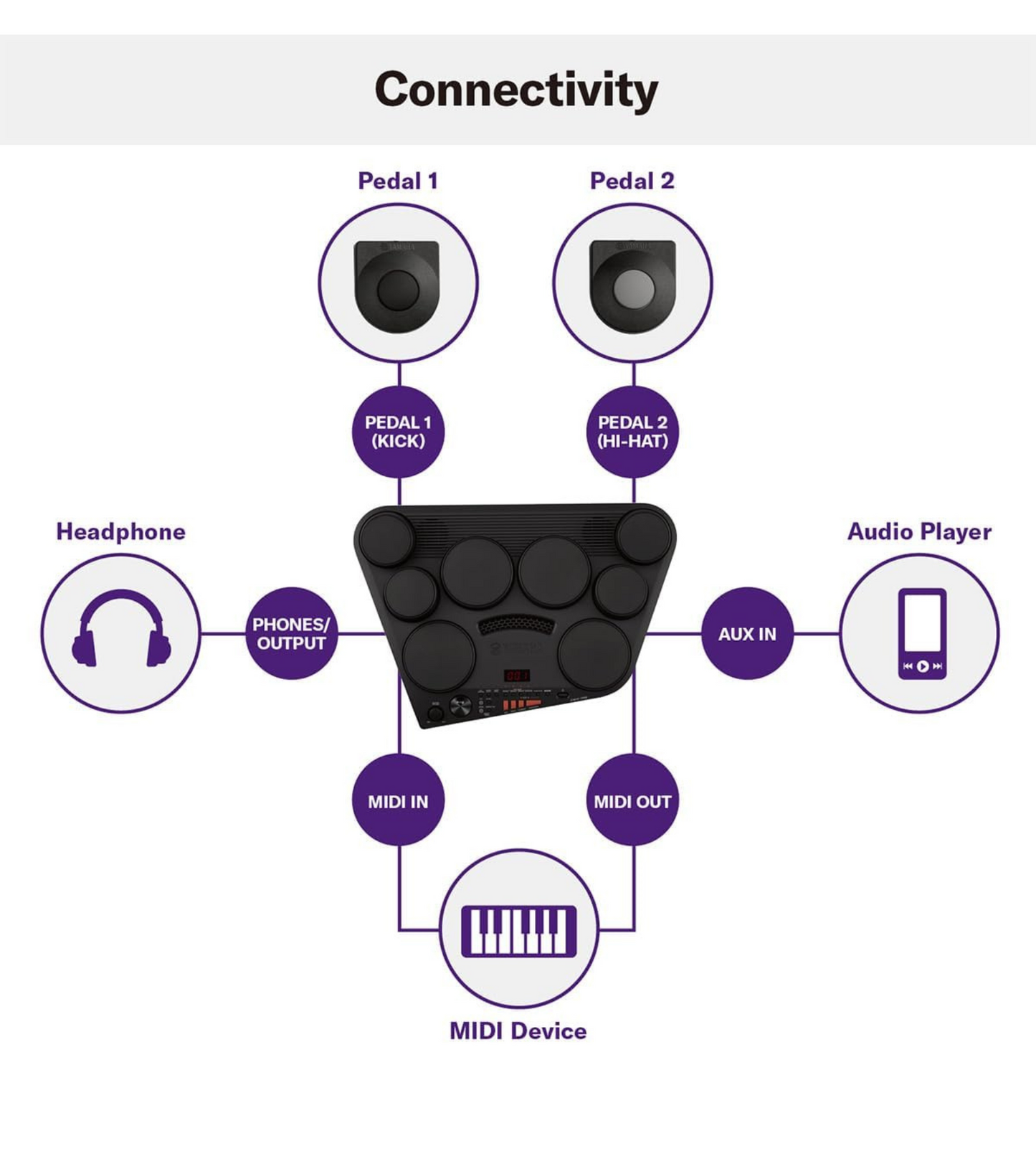

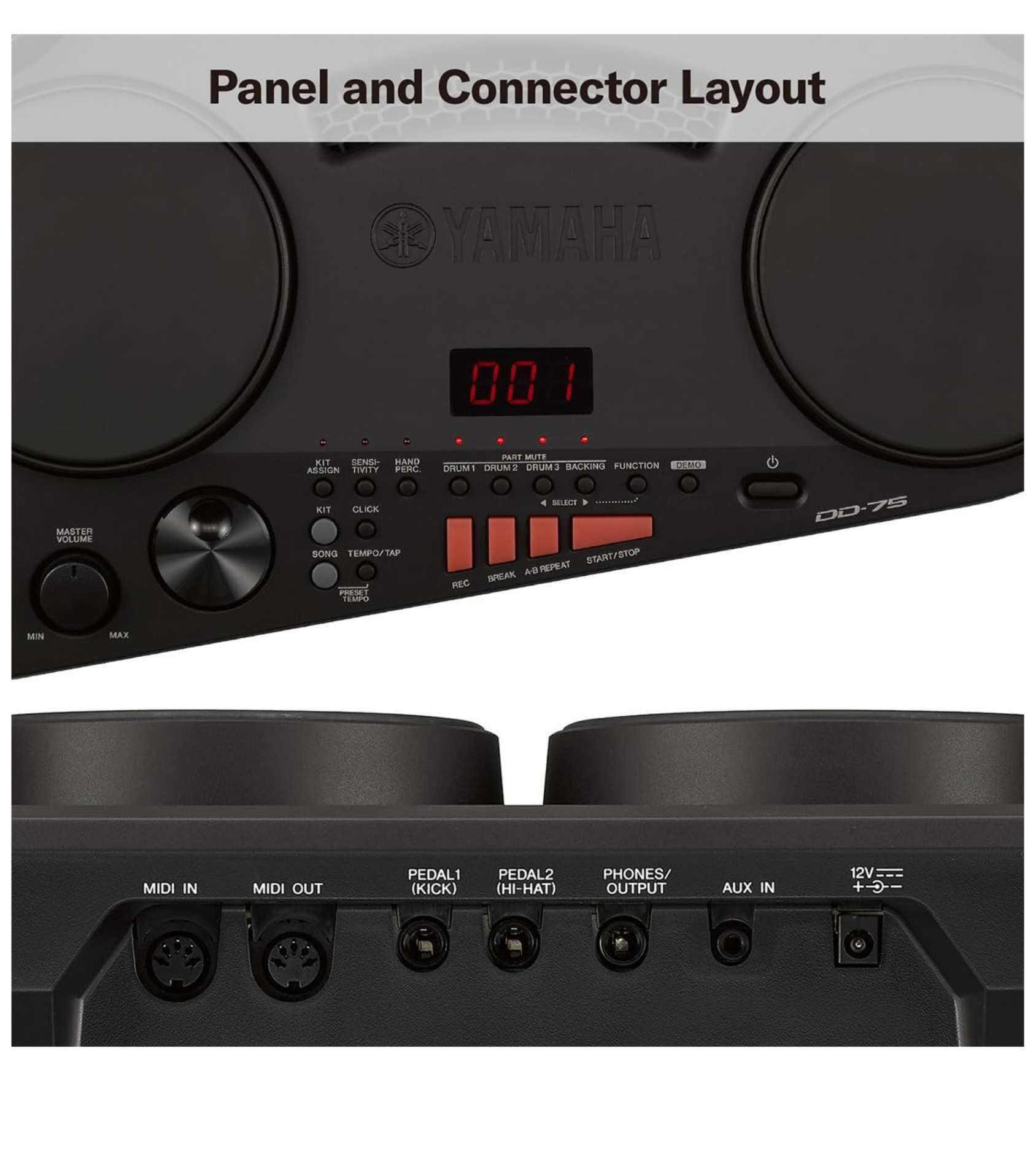

- Connectivity: AUX In, Headphone Out, MIDI In/Out

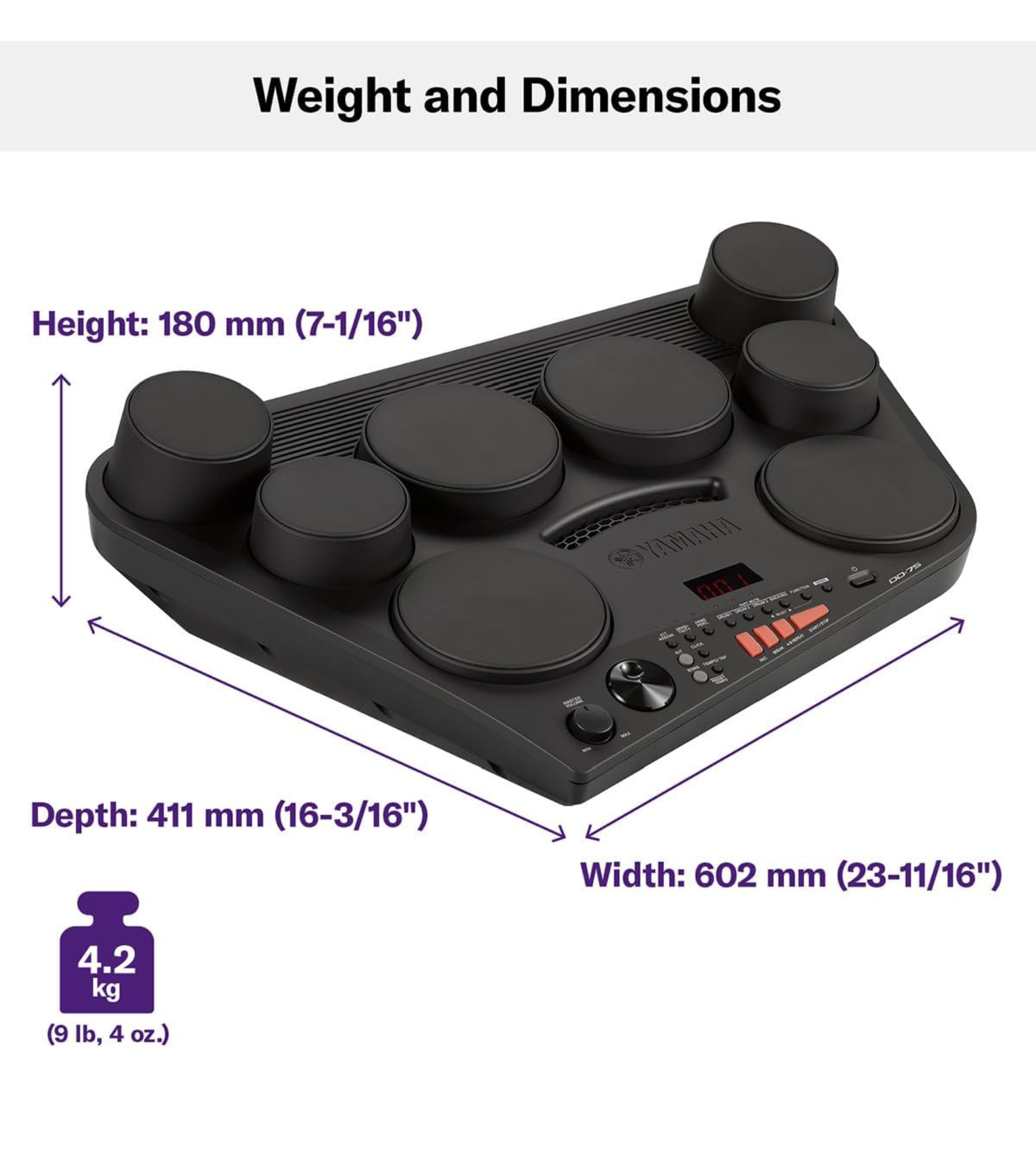

- Power: Built-in battery or AC adapter; Weight: 4.2 kg (9 lb 4 oz) not including batteries
- Width: 602 mm (23-11/16")
- Depth: 411 mm (16-3/16")
- Height: 180 mm (7-1/16")

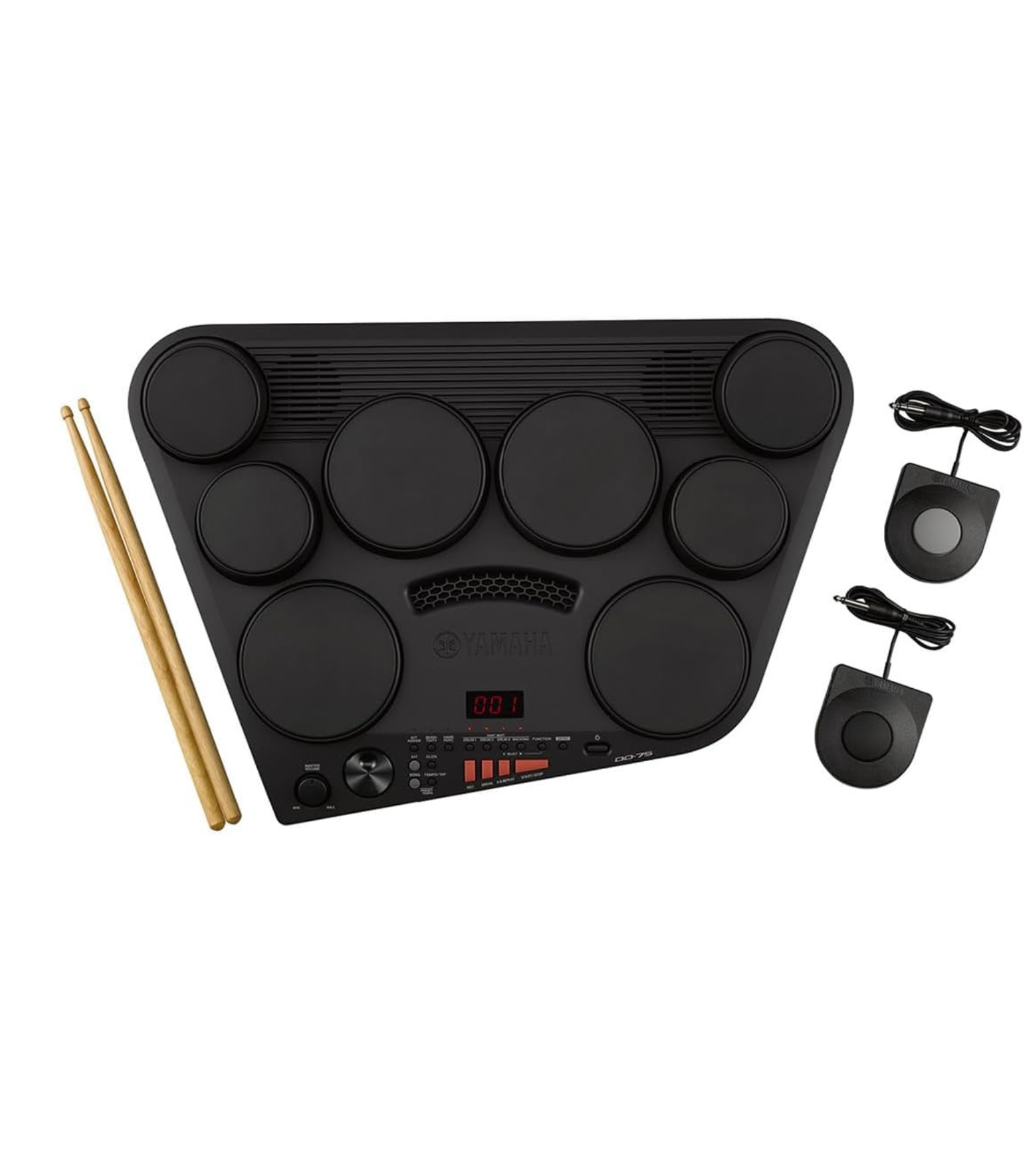

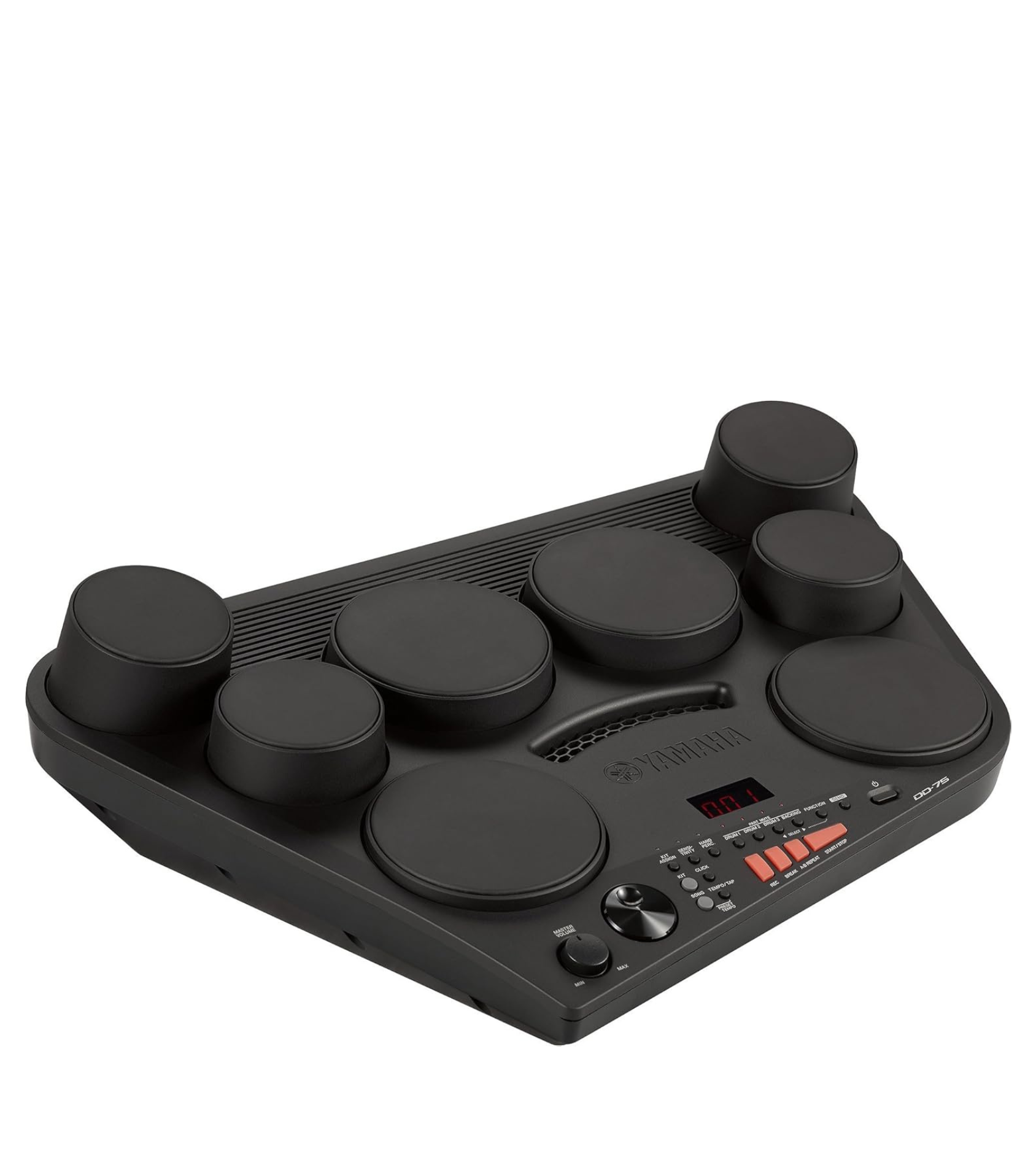

- Yamaha DD-75 drum pad unit
- 2 foot pedals
- Wooden drumsticks
- Power adapter (PA-150 or equivalent, depending on region)
