Bose

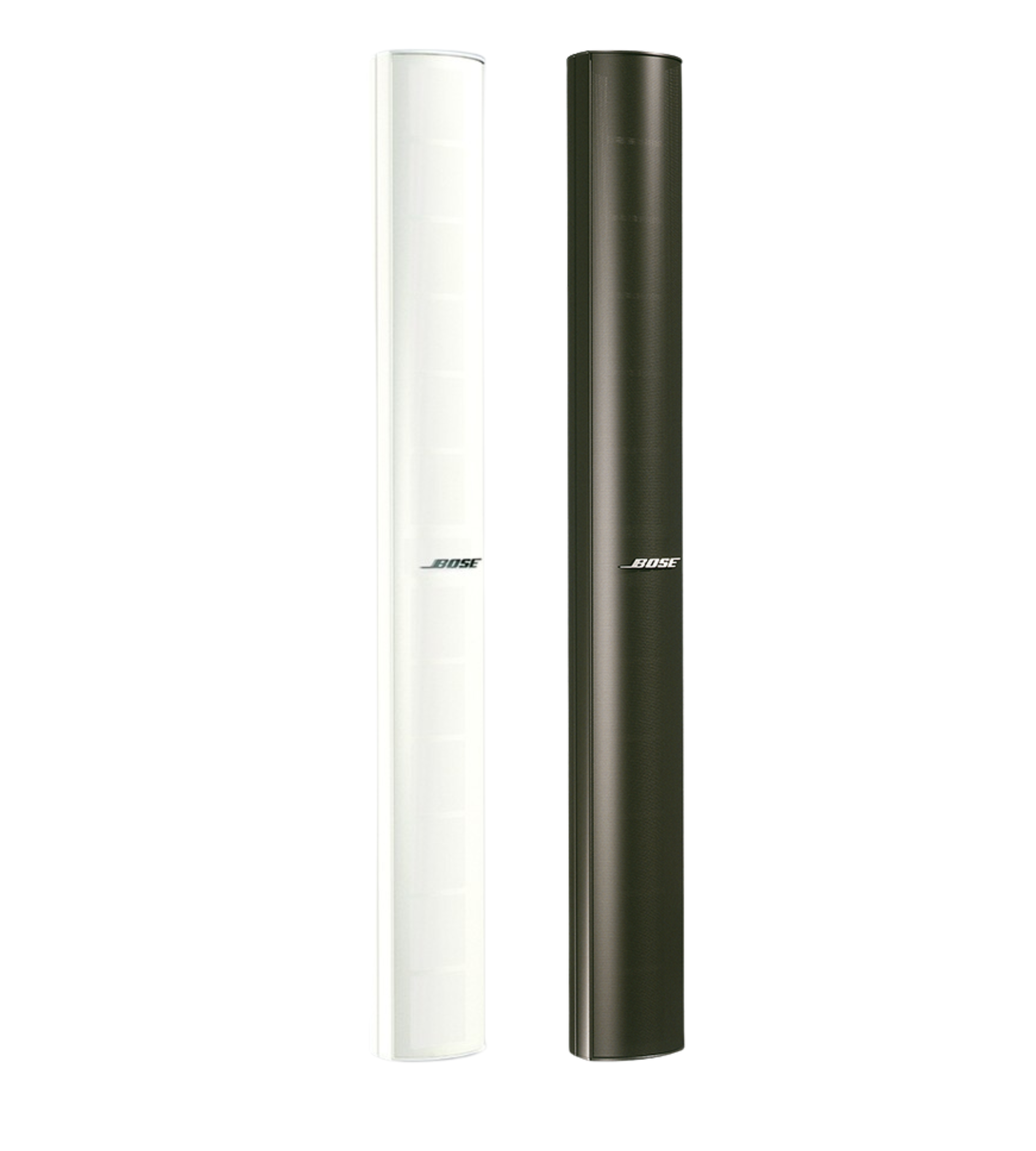

BOSE MA12 LINE ARRAY SPEAKER

BOSE MA12 LINE ARRAY SPEAKER

Regular price ₱48,000.00 PHP
Regular price Sale price ₱48,000.00 PHP
Sale Sold out

BOSE MA12 LINE ARRAY SPEAKER delivers exceptional speech intelligibility and balanced mid/high audio through a modular, slim-line design that blends discreetly into any indoor environment. The twelve vertically aligned drivers ensure wide horizontal dispersion while controlling reflections from ceilings and floors—ideal for installations in auditoriums, houses of worship, transportation hubs, and other acoustically demanding spaces.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

  • Twelve 2.25″ (57 mm) mid/high-frequency drivers in a vertical line array
  • Wide 145° horizontal dispersion with narrow 20° vertical pattern control
  • Modular design allows stacking for extended vertical coverage and throw
  • Pure mid/high configuration—pair with MB4, MB12, or MB24 bass modules for full-range sound
  • Extruded-aluminum and steel powder-coated slim column enclosure for aesthetic integration
  • Indoor use with optional brackets for single-, double-, or triple-stack mounting

  • Frequency Response (–3 dB): 155 Hz – 12 kHz
  • Frequency Range (–10 dB): 100 Hz – 16 kHz
  • Power Handling: 300 W continuous (1,200 W peak)
  • Sensitivity: 88 dB SPL (1 W @ 1 m)
  • Maximum SPL: 113 dB (119 dB peak) @ 1 m
  • Nominal Impedance: 8 Ω
  • Connectors: 2 × Neutrik NL4 SpeakON (parallel), 1 × 2-pin barrier strip
  • Recommended High-Pass: 125 Hz
  • Mounting: 4 × M6 threaded inserts on the rear
  • Enclosure Material: Powder-coated extruded aluminum and steel

  • 98.4 × 10.5 × 12.8 cm (boxed dimensions not specified)

  • Bose MA12 Modular Line Array Loudspeaker
