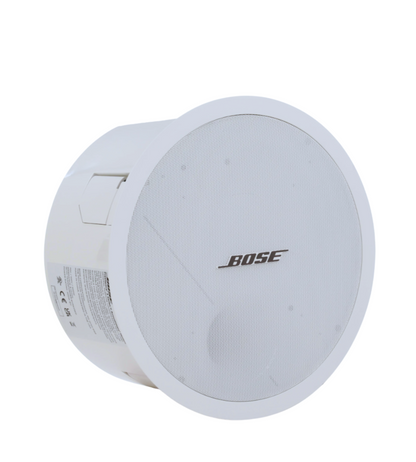

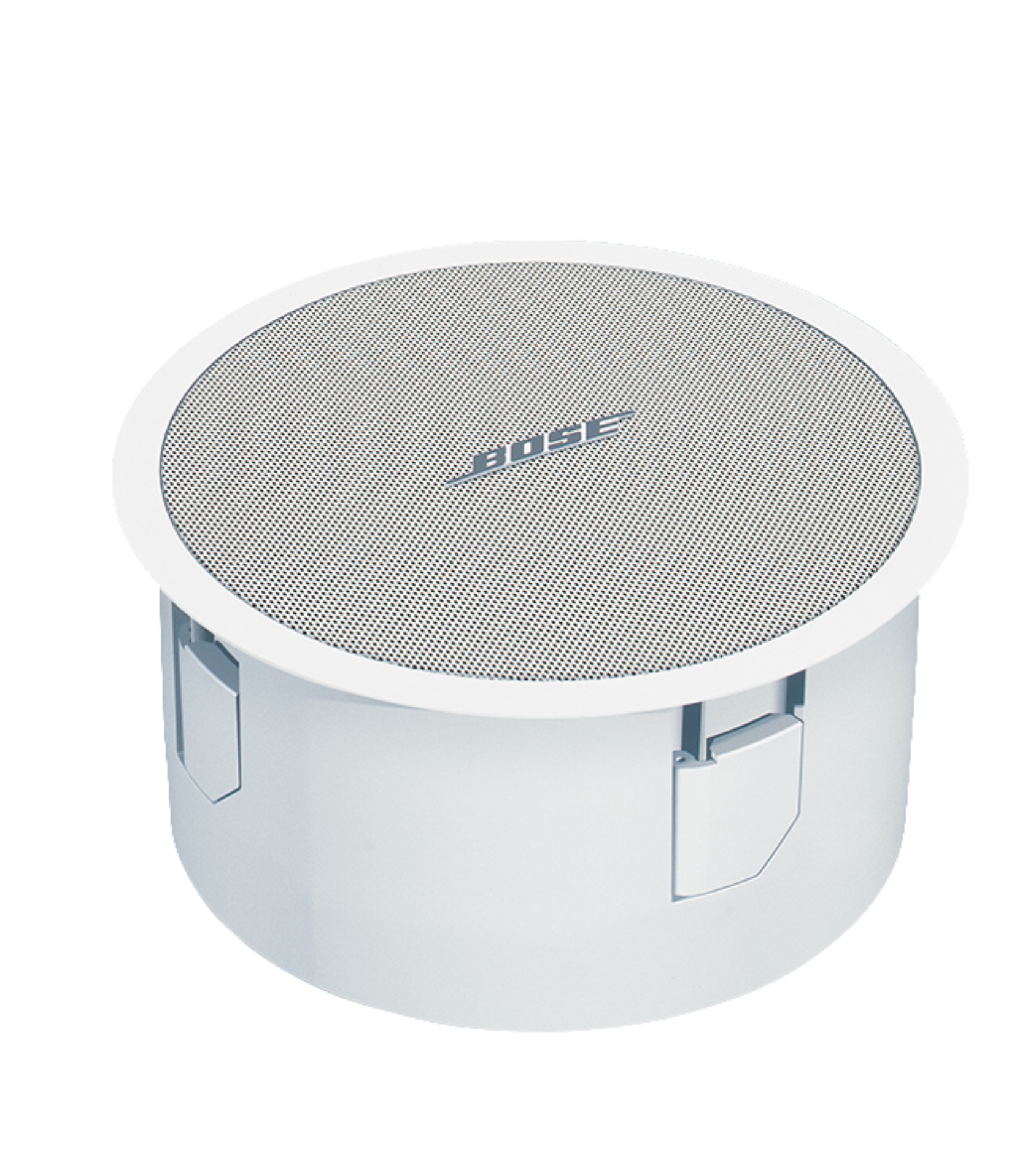

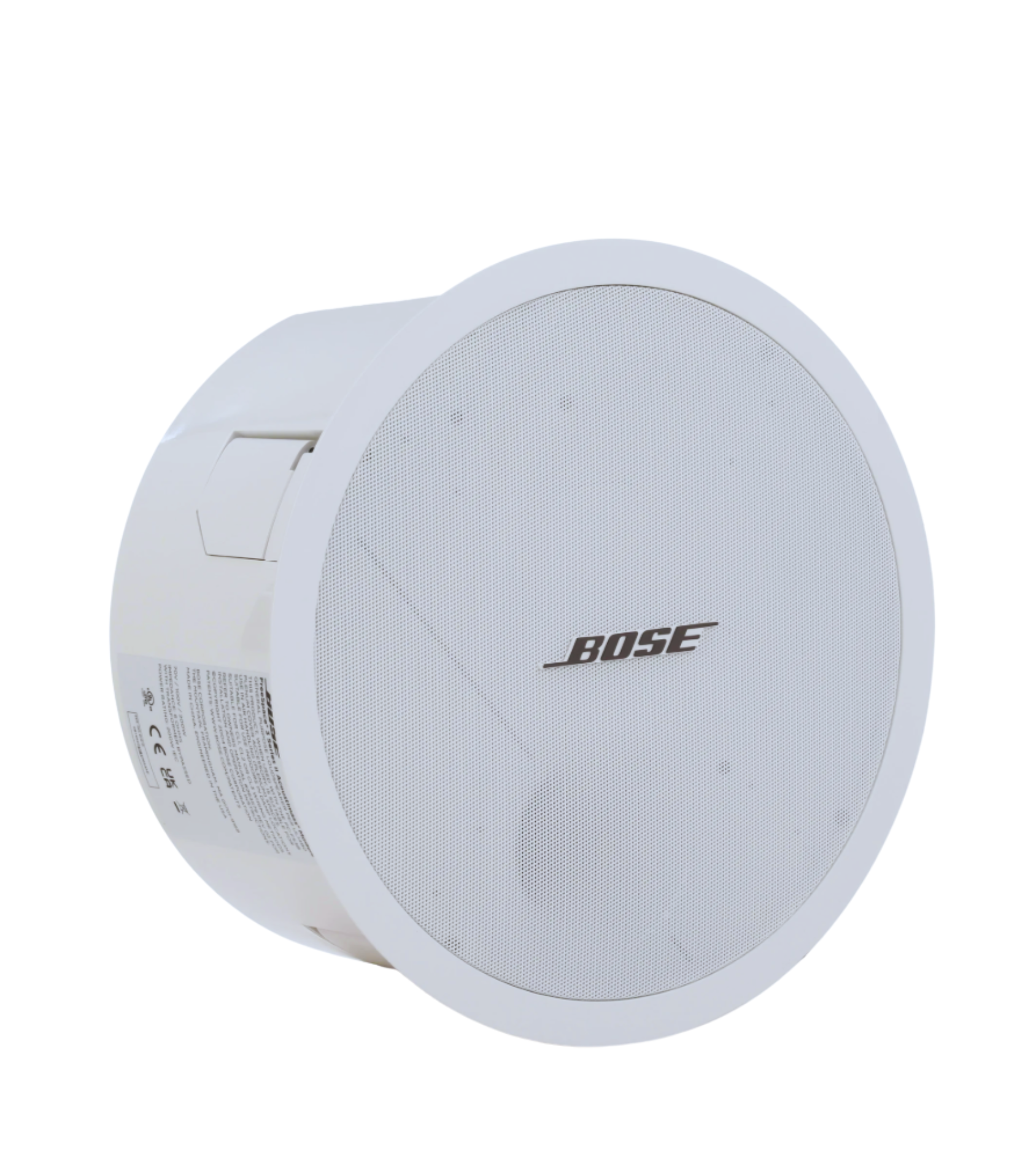

BOSE FREESPACE 3 SERIES II ACOUSTIMASS MODULE

BOSE FREESPACE 3 SERIES II ACOUSTIMASS MODULE

₱22,500.00 PHP
₱22,500.00 PHP
Sale Sold out

BOSE FreeSpace 3 Series II Acoustimass Module delivers rich, low-frequency reinforcement through a compact, flush-mount design that blends seamlessly into commercial environments. With its 5.25″ woofer and advanced Acoustimass technology, it offers deep, non-localized bass down to 40 Hz—perfect for retail, hospitality, and corporate spaces requiring discreet audio enhancement.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

  • 5.25″ (133 mm) dual-voice-coil woofer providing deep bass down to 40 Hz without audible distortion
  • Acoustimass technology for smooth, non-localized low-frequency output
  • Flush-mount, ceiling, pendant, wall, or in-wall installation options
  • Modular design supports deployment of 2 or 4 FreeSpace 3 satellite speakers per module
  • Selectable operation: 70/100 V transformer or low-impedance bypass under the grille
  • Plenum-rated for installation in air-handling spaces (with optional plenum cover)
  • Indoor use only; PC/ABS enclosure with expanded-metal grille

  • Frequency Range (–10 dB): 40 Hz – 315 Hz
  • Frequency Response (±3 dB): 50 Hz – 230 Hz
  • Power Handling (Continuous): 70/100 V – 200 W mono; Low-Z – 50 W per channel stereo or 100 W mono
  • Peak Power Handling: 70/100 V – 800 W mono; Low-Z – 200 W per channel stereo or 400 W mono
  • Sensitivity (1 W @ 1 m): 76 dB (per channel), 79 dB (mono)
  • Maximum SPL @ 1 m: 96 dB continuous, 102 dB peak (per channel); 102 dB continuous, 108 dB peak (mono)
  • Nominal Impedance: 6 Ω (transformer bypassed)
  • Transformer Taps: 70/100 V – 25, 50, 100, 200 W
  • Omni-directional coverage below 200 Hz

  • Diameter × Depth: 39.1 × 18.9 cm
  • Ceiling cutout diameter: 36.2 cm

  • FreeSpace 3 Series II Acoustimass Module
  • Installation guide (with mounting and safety instructions)
