sE ELECTRONICS RN17

sE ELECTRONICS RN17

₱61,950.00 PHP
₱61,950.00 PHP
Sale Sold out

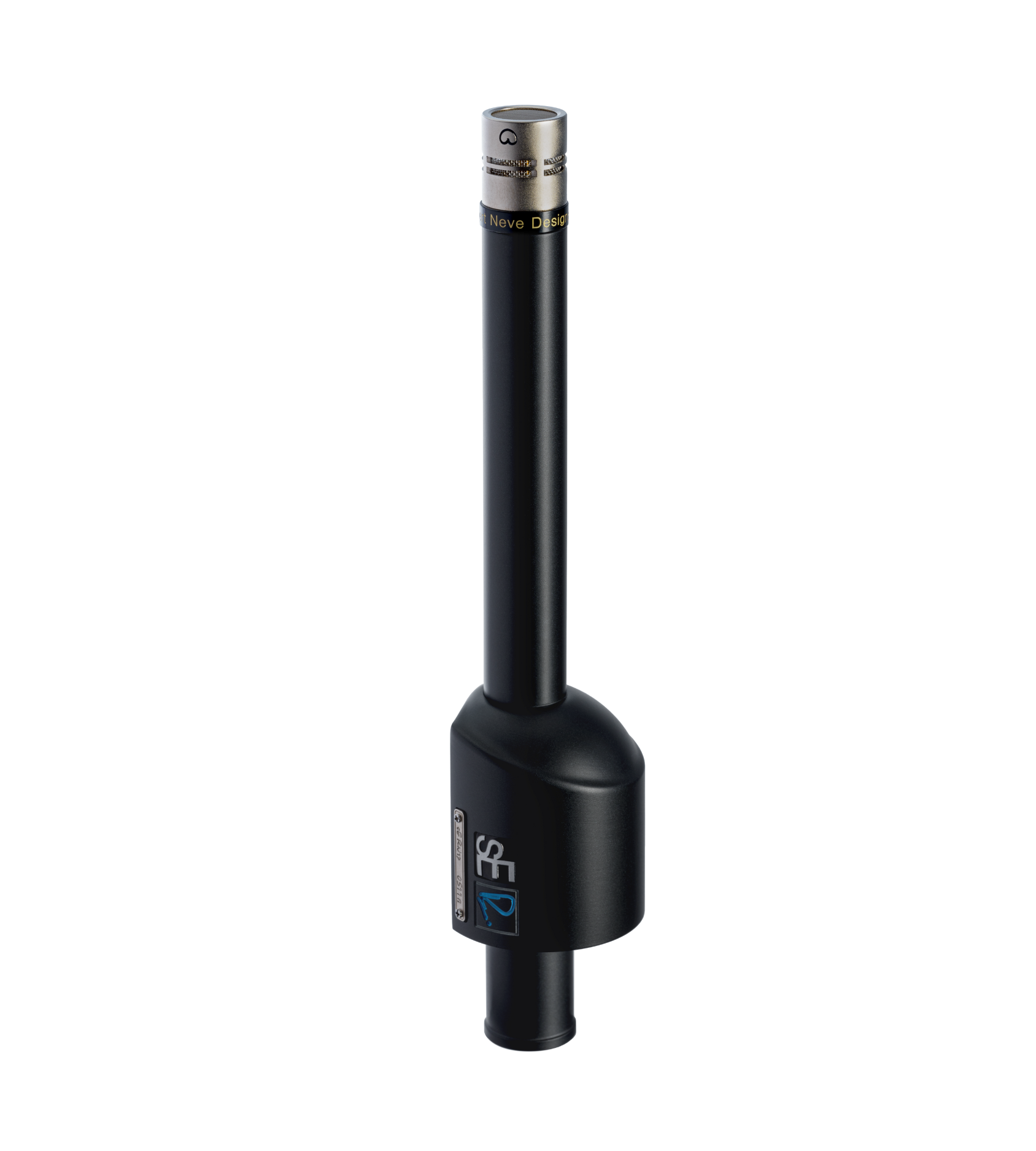

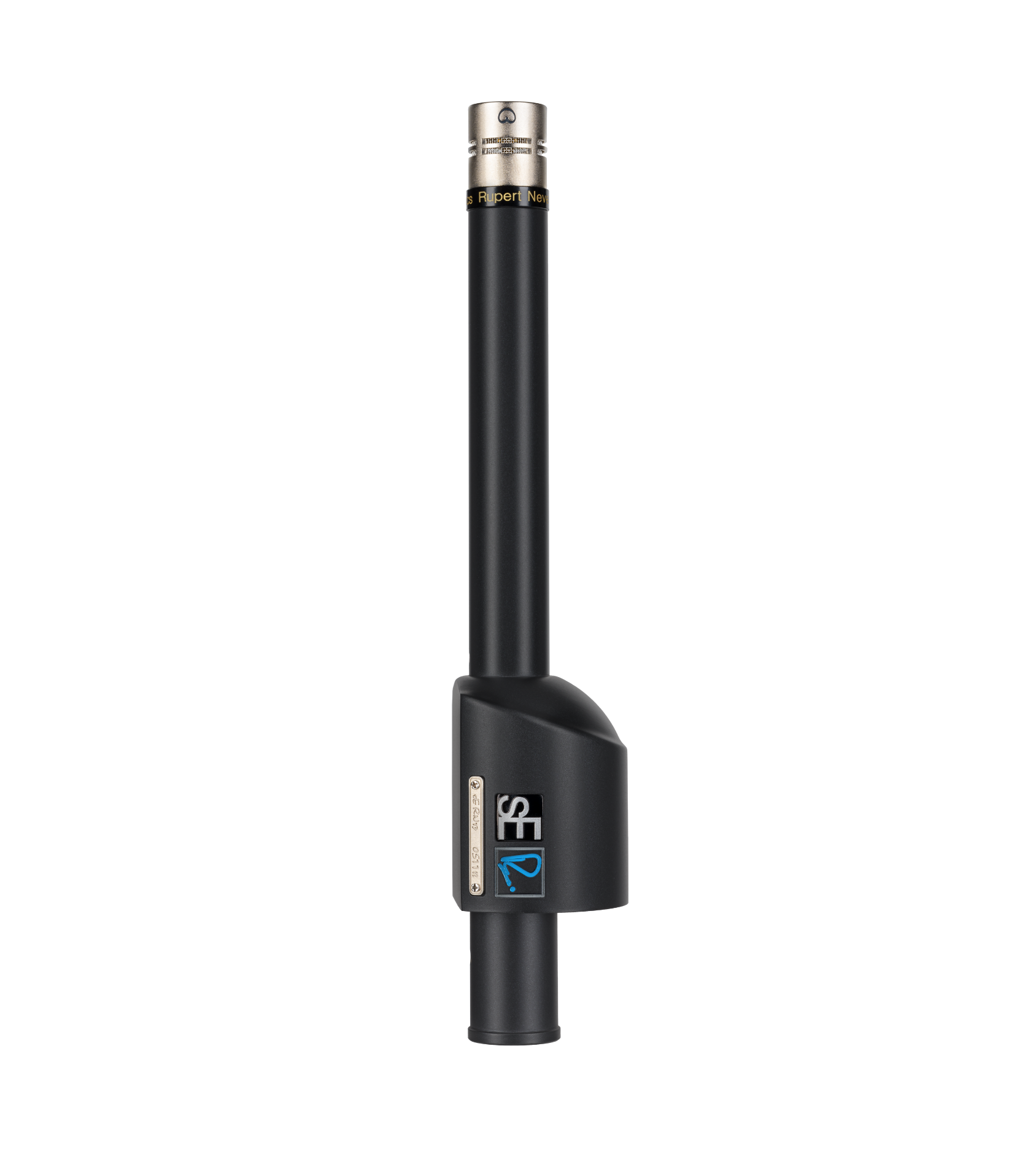

The RN17 Rupert Neve Pencil Microphone from sE Electronics is a stereo set of microphones that uses a custom, hand-wound Rupert Neve designed transformer.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

Key Features of sE Electronics RN17 Small‑Diaphragm Condenser Microphone

  • Alloy-encased world’s smallest gold-sputtered diaphragm (≈15 mm) for exceptional clarity and transient response
  • Custom, full-scale Rupert Neve hand-wound transformer ensures rich tonal depth and low distortion
  • Wide cardioid polar pattern with optional capsules (omni, hypercardioid, figure-8) for flexible placement
  • Max SPL handling of up to 131 dB (0.5 % THD at 1 kHz)
  • Extremely low self-noise (~18 dB(A), cardioid; ~15 dB(A), omni) providing high SNR (~76 dB)
  • Included shockmount and rugged wooden case for transport and protection

Technical Specifications

  • Transducer: 17 mm gold/Mylar true condenser diaphragm
  • Polar Patterns: Cardioid (included), optional Omni, Hypercardioid, Figure‑8 capsules
  • Frequency Response: 20 Hz – 20 kHz
  • Sensitivity: approx. –44.5 dBV/Pa (6 mV/Pa); figure‑8: ~–52 dBV/Pa (2.5 mV/Pa)
  • Impedance: nominal 200 Ω
  • Self‑Noise: ~18 dB(A) cardioid; ~15 dB(A) omni
  • Max SPL: approx. 131 dB (0.5 % THD at 1 kHz)
  • SNR: ~76 dB (cardioid)
  • Connector: 3‑pin male XLR; Requires +48 V phantom power

Dimensions

  • Length: approx. 200 mm (≈7.9″); Diameter: ~44 mm
  • Weight: approx. 320 g (≈11.3 oz) with cardioid capsule; ~330 g with figure‑8 capsule

What's in the Box

  • RN17 Microphone (cardioid capsule attached)

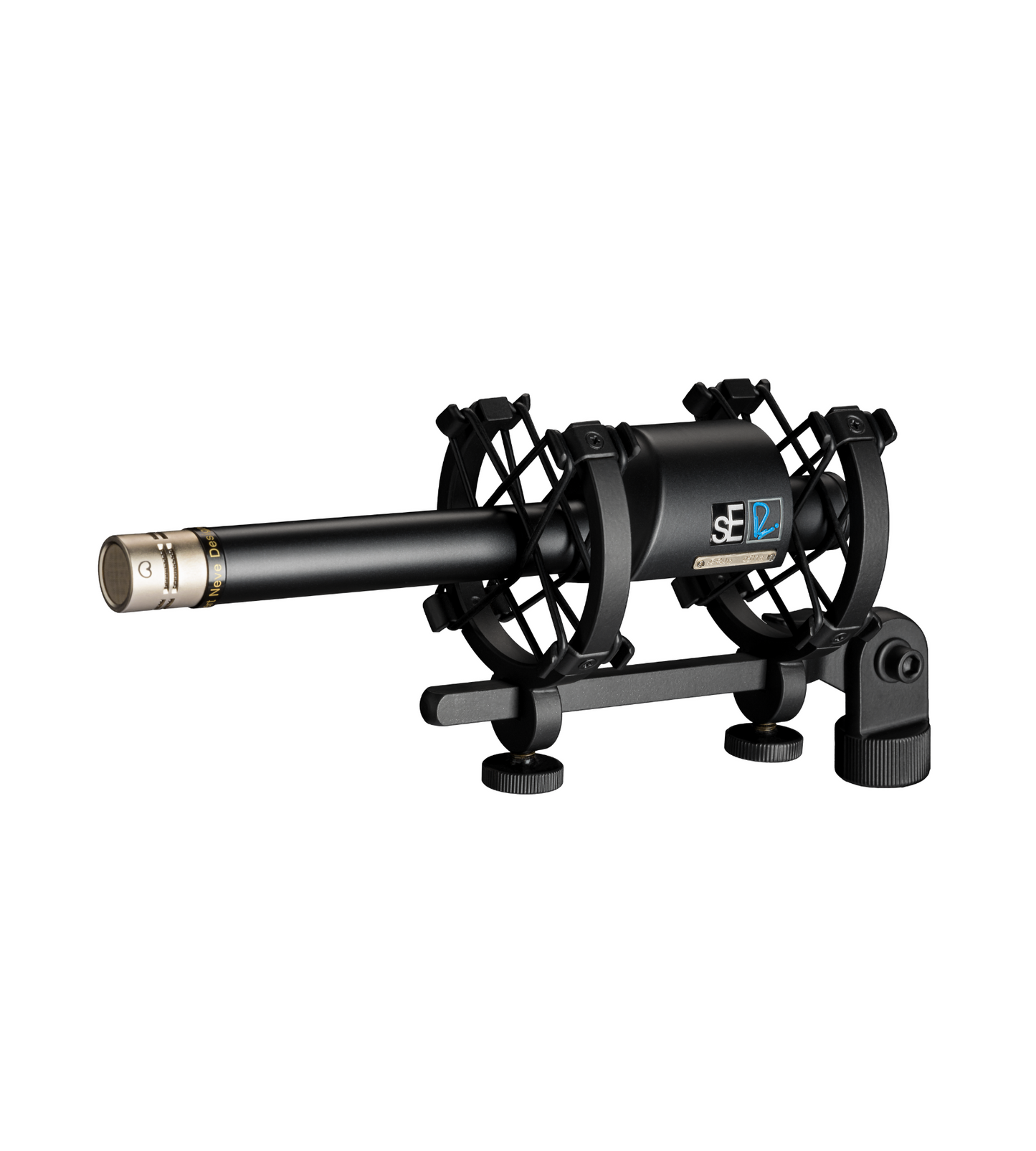

  • Custom shockmount
  • Thread adapter for mic stand
  • Wooden presentation case
  • Empty capsule canisters (for optional omni/hypercardioid/figure-8 capsules)

Ultra‑Fast Accuracy with Transformer‑Enhanced Depth

At its core, the RN17 houses a precision-engineered 17 mm gold‑sputtered Mylar diaphragm—the world’s smallest production capacitive diaphragm—delivering unparalleled transient response and crystal detail across the full 20 Hz to 20 kHz range. What truly elevates its sonic character is the hand-wound Rupert Neve transformer: it brings rich low-end presence and airy highs with elegant balance and headroom previously unheard in compact condenser mics

Custom Image 1
Custom Image 2

Spacious Detail & High SPL Capability

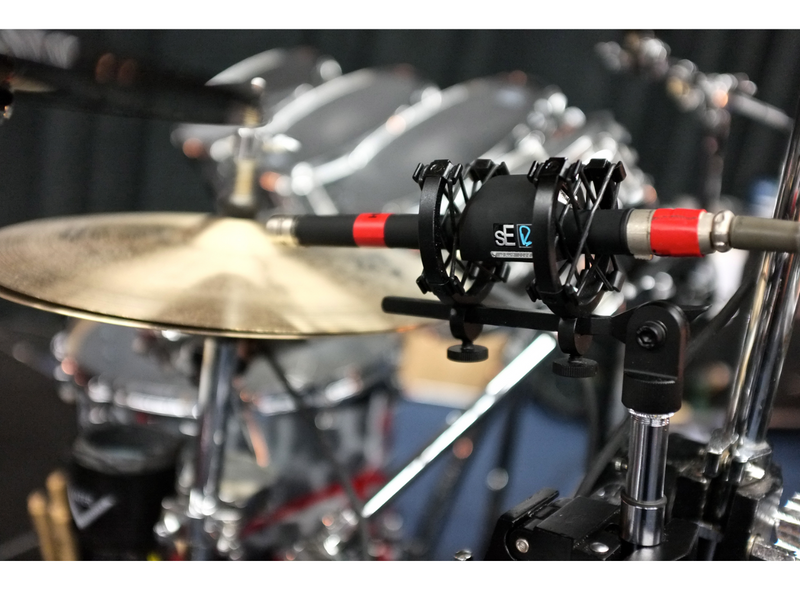

With a low self-noise specification (~18 dB A‑weighted) and a signal-to-noise ratio around 76 dB, the mic excels at capturing quiet acoustic instruments and delicate textures. It handles SPLs up to ~150 dB before distortion, thanks to its robust design and transformer architecture—making it ideal for overhead drums, guitar amps, percussion, piano, and more, all while preserving clarity under high pressure

Versatile Stereo Pair & Professional Build

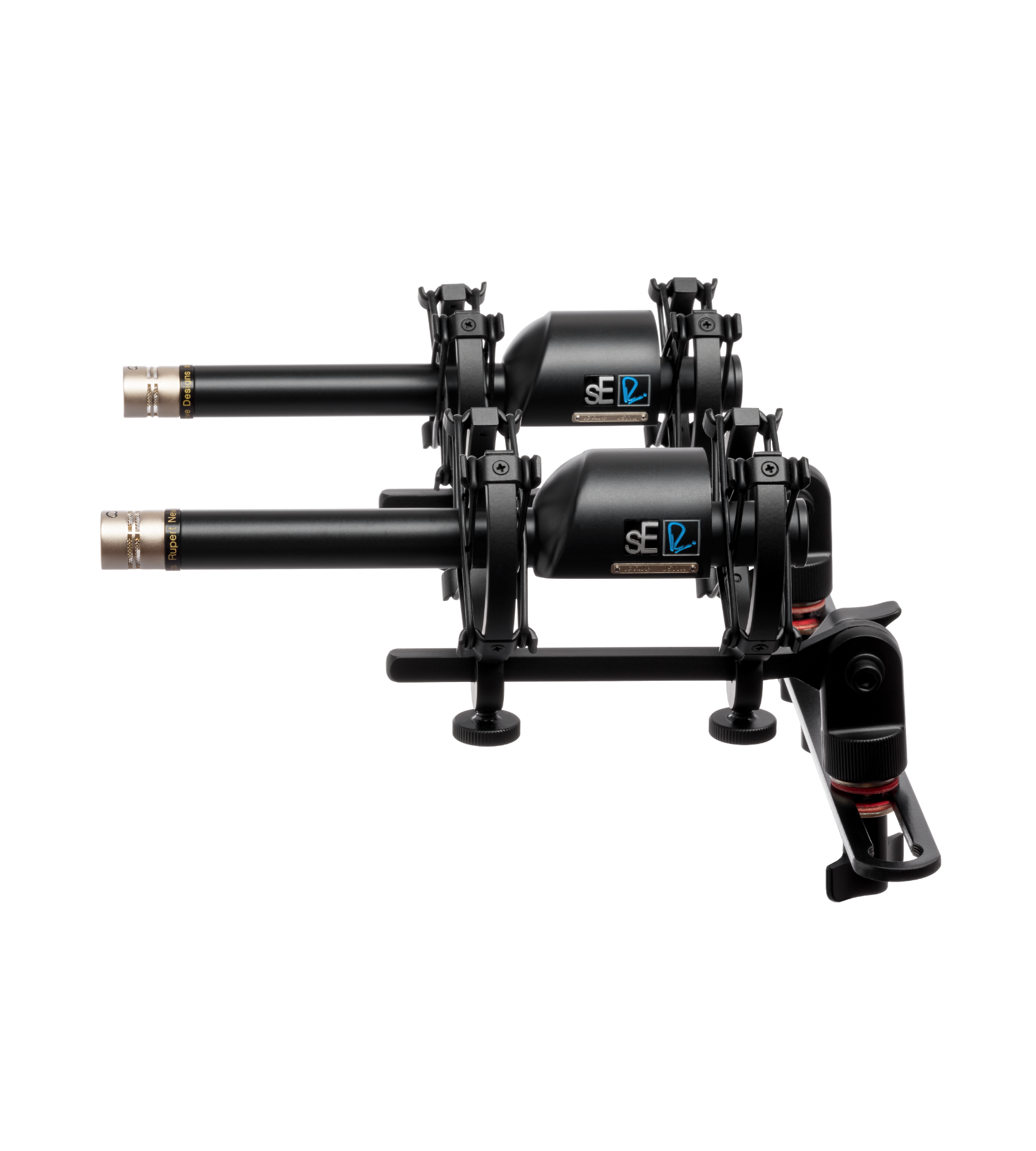

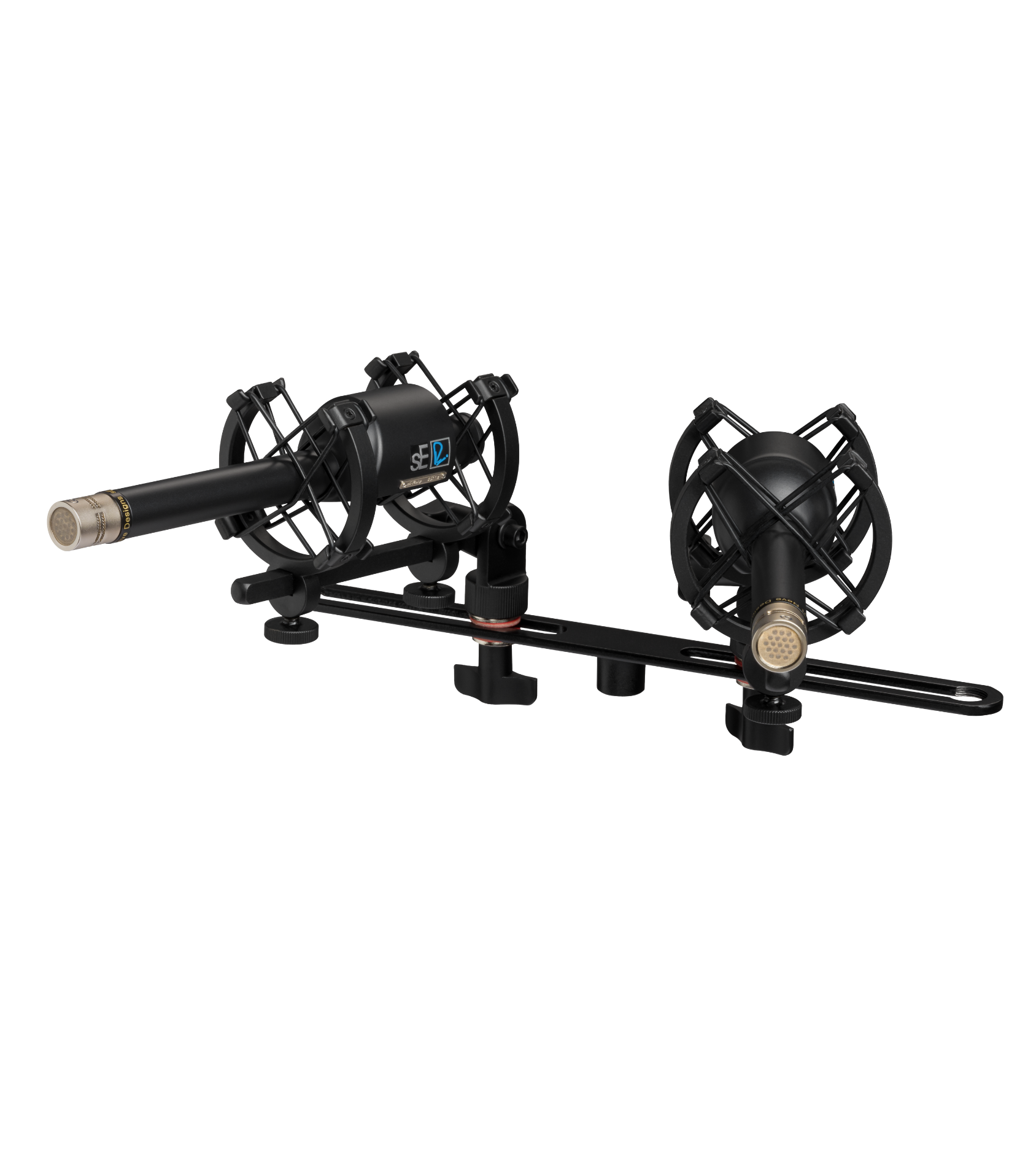

When acquired as a matched stereo pair, the RN17 includes interchangeable cardioid capsules (with optional omni, hypercardioid, figure‑8 variants available), factory-balanced performance, custom shock-mounts, and a padded flight-ready case. The solid all-metal construction and modular capsule system make it a flexible choice for stereo instrument capture, minimal-mic overhead use, and tracking diverse acoustic sources in both studio and field environments

Custom Image 3
