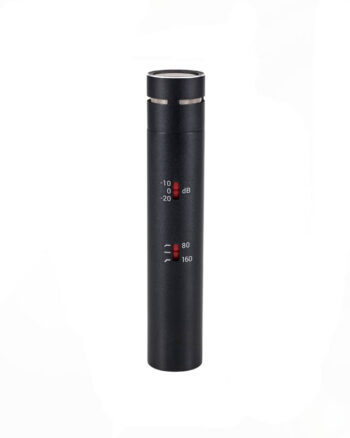

sE Electronics sE8 Small-diaphragm Condenser Microphone

₱15,000.00

The sE8 – small in stature, huge in sound.
Fit for any challenges in the studio or on stage, the sE8 is a brand new high-performance handcrafted small-diaphragm condenser, fresh from the labs at sE.

SKU: 007929 Categories: , , ,
Features

HANDCRAFTED TRUE CONDENSER CAPSULE

  • gold-sputtered diaphragms ensure maximum reliability
  • every capsule is handcrafted and individually tuned in our very own factory
  • ultra-precision electrode design optimized for superb linearity and natural sonics
  • ultra-thin 3 micron gold-sputtered diaphragm for superior transients
  • newly-developed backplate design provides smooth, natural sound & truly consistent off-axis response
  • sophisticated acoustic design with precision components
  • avoids coloration in demanding applications



THE QUIETEST PENCIL MIC IN ITS CLASS
  • sophisticated electronic design provides extremely low noise without the use of integrated circuits
  • transformerless design for excellent transparency and clarity
  • proven Class-A circuitry ensures a high dynamic range without distortion and brilliant transient response





TWO SWITCHABLE PRE-ATTENUATION PADS

The -10 dB and -20 dB pad switches provide extended dynamic range, enabling a wide range of applications and close-mic techniques for brass instruments, snare drums, and more.



TWO SWITCHABLE LOW-CUT FILTERS

Selectable at either 80Hz or 160Hz, these two filters help eliminate low-frequency rumble or footfall noise, as well as help compensate for excessive bass (proximity effect) with close-mic techniques.



ALL-METAL HOUSING WITH GOLD-PLATED XLR CONNECTOR, PREMIUM FINISH & ACCESSORIES

Unlike the cheaply constructed bodies of some small-capsule microphones, the sE8’s all-metal chassis provides efficient rejection of any electrical interference and noise – and the high-quality finish and gold-plated XLR connector ensures a great look and a loss-free, reliable signal connection for years to come.

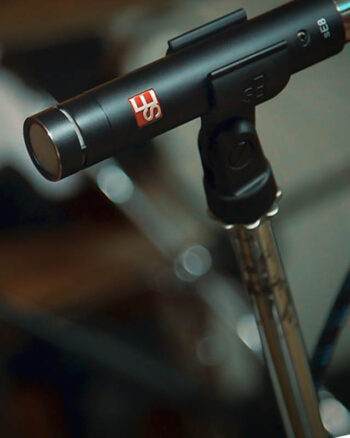

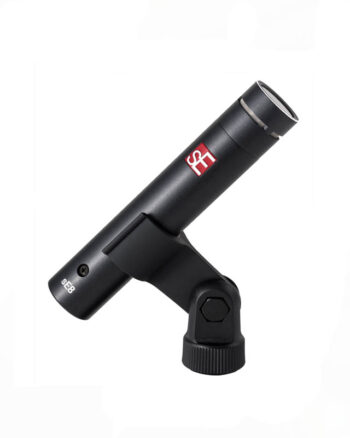

The sE8 also comes standard with a newly-designed mic clip that will securely attach it to any mic stand.

Specification

Capsule Type: Hand-Crafted Small-Diaphragm True Condenser

Polar Pattern: Cardioid

Frequency range: 20 Hz – 20 kHz

Sensitivity: 25 mV/Pa   (-32 dBV)

Max SPL: 139 / 149 / 159 dBSPL (0/10/20 dB pad) (0.5% THD @ 1kHz)

Equivalent noise level: 13 dB(A)

Dynamic range: 126 / 136 / 146 dB (0/10/20 dB Attentuation pad)

Signal to Noise Ratio: 81 dB

Low-cut filter: 80 / 160 Hz, 6 dB/Oct, switchable

Attenuation Pad: 10 / 20dB, switchable

Powering: 48 Volts according to IEC 61938

Electrical Impedance: 110 Ohms

Recommended load impedance: >1k Ohms

Current consumption: 2.7 mA

Connectivity: 3-pin male XLR connector

Dimensions: Diameter: 23mm (0.91 in), Length 120mm (4.72 in)

Weight: 141 g (4.97 oz.)
